Single Deck Flat Sheet Membrane 200 Cassettes FSMBR 08-200
Specifications
| Operating Temperature | 5 -40 degree c |
|---|---|
| Length | 3240 mm |
| pH Range | 06-09 pH |
| Model | FSMBR 08-200 |
| Width | 600 mm |
| Membrane Material | PVDF |
| Standard Height | 1660 mm |
| Dry Weight | 1.3 Kg |
| MLSS | 7000-l8000 PPM |
| DO Concentration | Greater Than 1 PPM |
| Operating Trans. Pressure | 50-200 Mbar |
| No. of Cassettes | 200 |
| MOC of Frame | SS-304/SS316 |
| Plate Material | ABS |
| Membrane effective area (m 2 ) | 160 |
| Membrane pore size(Micro meter) | 0.1 |
| Output turbidity(NTU) | Less Than 1.0 |
| Output SS(mg/L) | Less Than -5 |
| Chemical cleaning | 5000mg/l NaClO |
| Design Flux LMH | 15-34 LMH |
| Operating mode(permeate/relaxation) | 08-02 Min |
| Max press drop | 350 Mbar |
| Air Flowrate (l/min) | 2000 |
Key Features
- Permanently hydrophilic
- High MLSS concentration
- High Flux & low fouling
Product Description

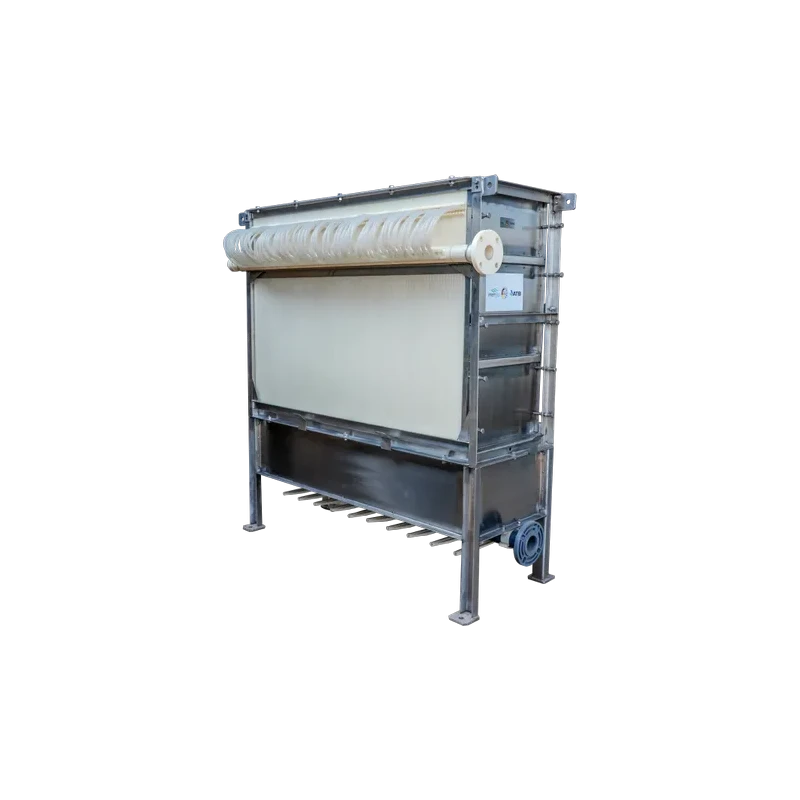

FSMBR 08 Single Deck Flat Sheet Membrane 200 Cassettes (Model No. FSMBR 08-200), FMBR PVDF Series is a high-flux Flat Sheet MBR membrane delivering excellent permeability, fouling resistance, stability, and elimination effectiveness. Structured with PVDF (permanently hydrophilic polyvinyl difluoride) has the advantage of dry storage. FMBR PVDF Series membranes can be used for a wide variety of treatment applications such as industrial and domestic wastewater.
- High chlorine resistance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The membrane material used in the FSMBR 08-200 is PVDF (polyvinyl difluoride).
The effective membrane area of the FSMBR 08-200 is 160 m².
The operating temperature range for the FSMBR 08-200 is between 5 to 40 degrees Celsius.
The maximum operating transmembrane pressure for this model is 200 mbar.
The suitable pH range for the FSMBR 08-200 is between 6 to 9.
The FSMBR 08-200 features 200 cassettes.
The maximum pressure drop for the FSMBR 08-200 is 350 mbar.
The MLSS concentration range for the FSMBR 08-200 is between 7000 to 8000 PPM.
The output turbidity for the FSMBR 08-200 is less than 1.0 NTU.
The frame material of the FSMBR 08-200 is made from SS-304 or SS-316 stainless steel.
The design flux rate for the FSMBR 08-200 ranges from 15 to 34 LMH.
The dry weight of the FSMBR 08-200 is 1.3 kg.
