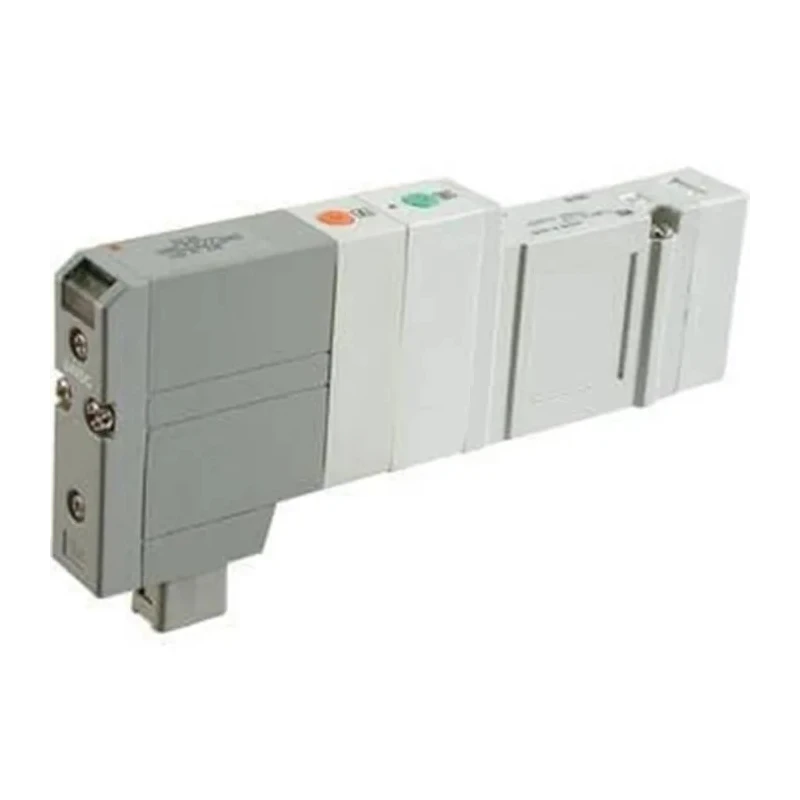

SMC Solenoid Valve Single Type Die Cast Aluminium Body 24V 0.6W Power Consumption SV4100-5FU

Free Delivery in India | Lowest Global Shipping Charges

SMC Solenoid Valve Single Type Die Cast Aluminium Body 24V 0.6W Power Consumption SV4100-5FU



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	7 bar
Model	SV4100-5FU
Mount Type	Plug-in
Series	SV
Number Of Ports	5
Maximum Operating Temperature	50°C
Number of Positions	2
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	2062L/min
Standards/Approvals	RoHS
Minimum Pilot Pressure	1.5bar
Electrical Connection Type	D-Sub Connector
Solenoid Type	Single
Solenoid Power Consumption	0.6W

Key Features

Operates at 24 volts DC with a solenoid power consumption of 0.6 watts.
Die cast aluminium body ensures durability and lightweight construction.
Rubber seal material provides effective sealing performance.
Features a plug-in mount type with 5 ports for versatile connections.
Maximum operating pressure of 7 bar and maximum flow rate of 2062 L/min.
Operates reliably between -10°C and 50°C temperature range.
Equipped with IP67 protection for water and dust resistance.
Electrical connection via D-Sub Connector with 2 position single function and internal pilot.

Product Description

SMC SV4100-5FU Solenoid Valve is a pneumatic solenoid valve designed for industrial fluid power applications. This single solenoid valve features a robust die cast aluminium body combined with rubber seals to ensure durability and optimal sealing performance. It operates on a 24V DC supply with a low power consumption of 0.6 watts.

The valve has a plug-in mount type and includes five ports, allowing flexible manifold configurations. It supports a maximum operating pressure of 7 bar and a maximum flow rate of 2062 liters per minute, suitable for demanding pneumatic systems. The operating temperature range spans from -10°C to 50°C, making it adaptable to various industrial environments.

Equipped with IP67 protection, this valve is resistant to dust and water ingress, enhancing reliability in harsh conditions. The electrical connection is made using a D-Sub Connector. This valve operates with a 2-position single function and features an internal pilot mechanism for efficient control. Included light and surge suppressors safeguard against electrical disturbances, ensuring long-term operational stability.

The SV4100-5FU complies with the RoHS standard, reflecting adherence to environmental safety regulations. Manufactured in Japan, it meets high-quality production standards for pneumatic components.

Operates on 24V DC supply with low power consumption. Robust die cast aluminium body structure. Rubber sealing material for leak prevention. Plug-in mount type with 5 ports for manifold flexibility. 7 bar maximum operating pressure and high flow capacity.

Suitable for temperatures from -10°C to 50°C. IP67 rated for dust and water protection. Electrical D-Sub Connector for reliable connections. Incorporates light and surge suppressors for electrical protection. Compliant with RoHS standards and made in Japan.

This solenoid valve is ideal for use in industrial pneumatic systems, manufacturing automation, HVAC controls, and fluid power applications requiring a dependable and efficient switching valve. Explore more pneumatic valves and SMC brand products on EnvMart for comprehensive fluid control solutions.
