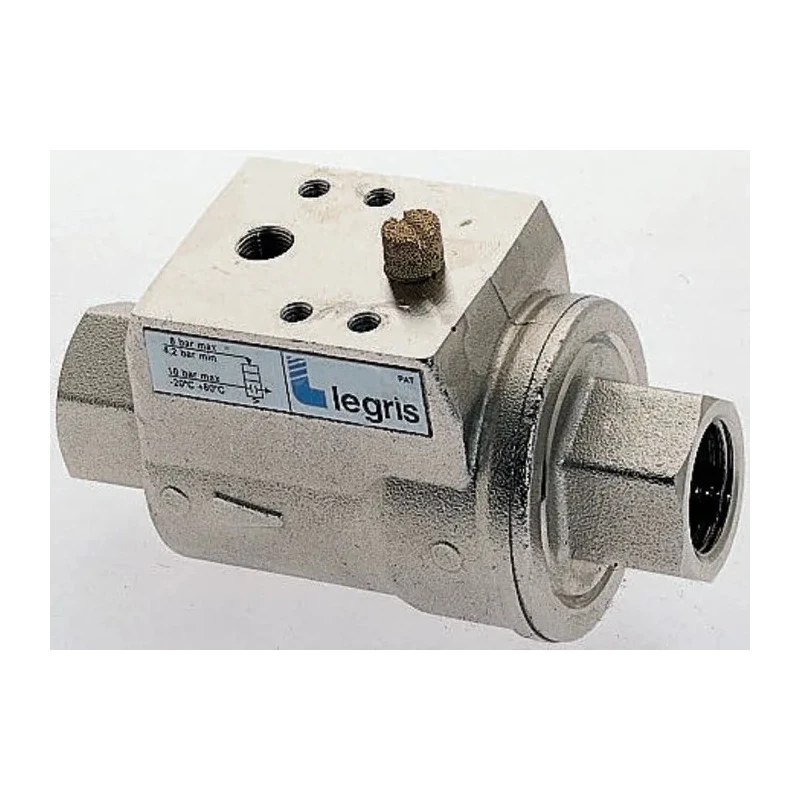

Legris Axial Type Pneumatic Actuated Valve, Threaded 3/8 in, 10 bar, NC, Brass Body Nickel Plated 4202 10 17 20

Legris 4202 10 17 20 Axial Type Pneumatic Actuated Valve is engineered for reliable pneumatic control in industrial fluid power and mechanical systems. This valve uses an axial valve mechanism to provide efficient actuation with a compact form factor.

Constructed with a nickel plated brass body, it ensures durability and corrosion resistance in harsh environments. The Viton rubber seal allows compatibility with a wide range of transport fluids including water, oils, greases, and hydrocarbons.

The valve has a 3/8 inch threaded inlet and outlet connection size and is designed for use in circuits requiring normally closed actuation. It provides a maximum operating pressure of 10 bar and functions within an operating temperature range of 15°C to 80°C.

Its electro-pneumatic control design integrates the actuator directly within the valve body, eliminating the need for separate actuator fittings and reducing installation time. The compact design saves up to 50% space compared with conventional valve and actuator combinations.

This axial type valve operates independently of the fluid pressures on either side, ensuring consistent performance regardless of upstream or downstream conditions. This valve type is ideal for automation in manufacturing, HVAC, fluid handling, and pneumatic system applications.

It offers efficient, compact, and reliable pneumatic actuation for process control. Typical use cases include Industrial Valves, plumbing, and fluid power tooling where pneumatic control and rapid operation are required.

Package contents include 1x Legris axial type pneumatic actuated valve model 4202 10 17 20 sized 3/8 in with 10 bar pressure rating. Explore more pneumatic actuated valves and fluid control valves at EnvMart for high quality industrial valve solutions.
