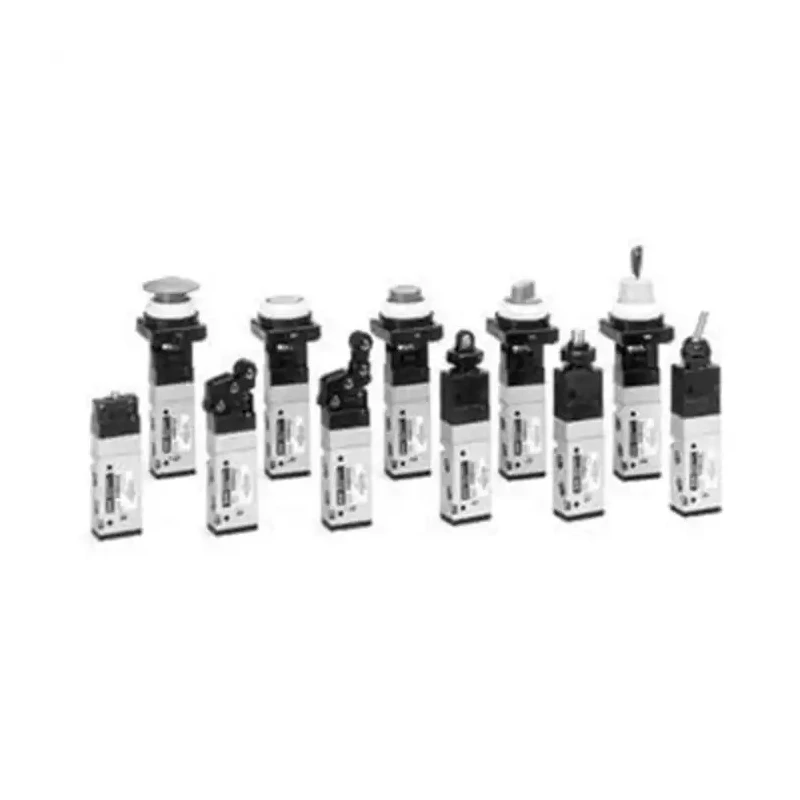

SMC Mechanical Valve EVZM500 Series Handle Control 8 bar Max Operating Pressure G 1/8 Port Size III B Model
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Maximum Operating Pressure | 8 bar |
| Model | EVZM500 |
| Operating Pressure | 0.15 to 0.7MPa |
| Series | EVZM500 |
| Maximum Operating Temperature | 50°C |
| Thread Size | R 1/8 |
| Port Size | G 1/8 |
| Minimum Operating Temperature | -5°C |
| Thread | G(PF) |
| Fluid | air, inert gas |
| Control Mechanism | Handle |
| Connection Thread Standard | G |
| Valve Function | Manual Control |
| Ambient and fluid temp | -5° to 60°C (no freezing) |
| Effective area (mm²) | 10,9 |
Key Features
- Designed for maximum operating pressure of 8 bar to ensure reliable performance.
- Compact and robust construction with an effective flow area of 10.9 mm².
- Suitable for fluid types including air and inert gases.
- Operating temperature range between -5°C and 50°C for versatile industrial use.
- Thread standard conforms to G connection ensuring compatibility with standard fittings.
- Manual control valve function provides precise flow regulation and control.
- Made in Japan, ensuring high-quality manufacturing standards.
- Compatible with industrial pneumatic systems requiring 5-port mechanical valve configurations.
Product Description
SMC EVZM500 series mechanical valve, model EVZM550-F01-08, features manual control via a handle mechanism. This valve is engineered for pneumatic systems requiring reliable flow control with a maximum operating pressure of 8 bar and an operating temperature range from -5°C to 50°C.
The valve is designed with a compact form factor and offers a large flow capacity of 10.9 mm², facilitating efficient pneumatic fluid passage. It supports air and inert gas fluids, making it suitable for a variety of industrial pneumatic applications.
The control mechanism is handle-operated, providing manual flow regulation. The valve includes a G 1/8 port size and uses G thread standard connections, including a pilot valve exhaust thread size of M5 x 0.8, enhancing compatibility with standard pneumatic piping and fittings.
Manufactured in Japan, the EVZM500 series mechanical valve ensures high reliability and precision for industrial use cases such as manufacturing automation, fluid power systems, laboratory applications, and general pneumatic control systems.
Designed for maximum operating pressure of 8 bar to ensure reliable performance. Compact and robust construction with an effective flow area of 10.9 mm². Suitable for fluid types including air and inert gases. Operating temperature range between -5°C and 50°C for versatile industrial use.
Thread standard conforms to G connection ensuring compatibility with standard fittings. Manual control valve function provides precise flow regulation and control. Made in Japan, ensuring high-quality manufacturing standards.
Compatible with industrial pneumatic systems requiring 5-port mechanical valve configurations. Model number III B denotes compliance with specific mechanical valve functional characteristics.
This mechanical valve is ideal for pneumatic fluid power systems in industrial tools and equipment, construction, HVAC controls, and manufacturing sectors. Explore more pneumatic control valves by SMC to meet specialized operational requirements.
Explore more products in our Industrial Valves category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 8 bar.
This valve features a G 1/8 port size, conforming to standard fittings.
It is suitable for air and inert gases, making it versatile for various applications.
The effective flow area of this model is 10.9 mm², facilitating efficient fluid passage.
The operating temperature range is between -5°C and 50°C.
Flow regulation is achieved through a manual control mechanism operated by a handle.
It uses the G thread standard for its connections, ensuring compatibility with standard fittings.
The minimum operating temperature is -5°C, allowing for use in cooler environments.
The ambient and fluid temperature range is from -5°C to 60°C, provided there is no freezing.
The model number of this valve is EVZM550-F01-08, part of the EVZM500 series.
Yes, it is compatible with industrial pneumatic systems requiring 5-port mechanical valve configurations.
This valve is manufactured in Japan, ensuring adherence to high-quality standards.
