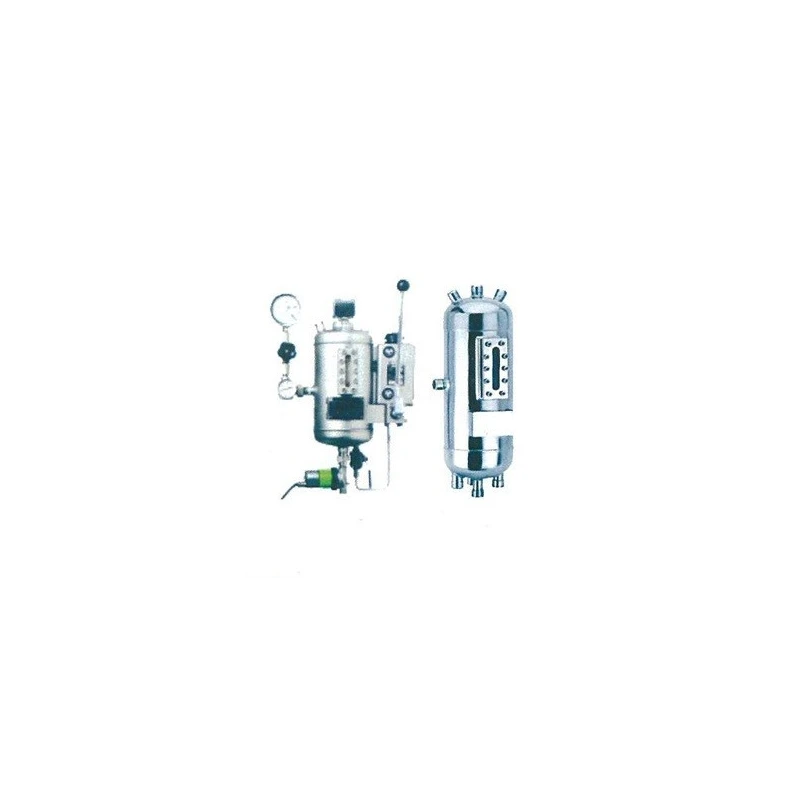

Thermosyphon System GTS-1 Series
Specifications
| Capacity | 7.5 Litres |
|---|---|
| Design Pressure | 10 bar (kg/cm 2) |
| Max Working temp | 150c |
| Hyd. Test Pressure | 15 Bar (kg/cm 2) |
| Heat Transfer Area of Cooling Coil | 0.226 m |
| Cooling Water Flow Rate Recommended | 10 Litre/min |
Key Features
- Easy to install and easy to operate
- Perfectly finished
Product Description

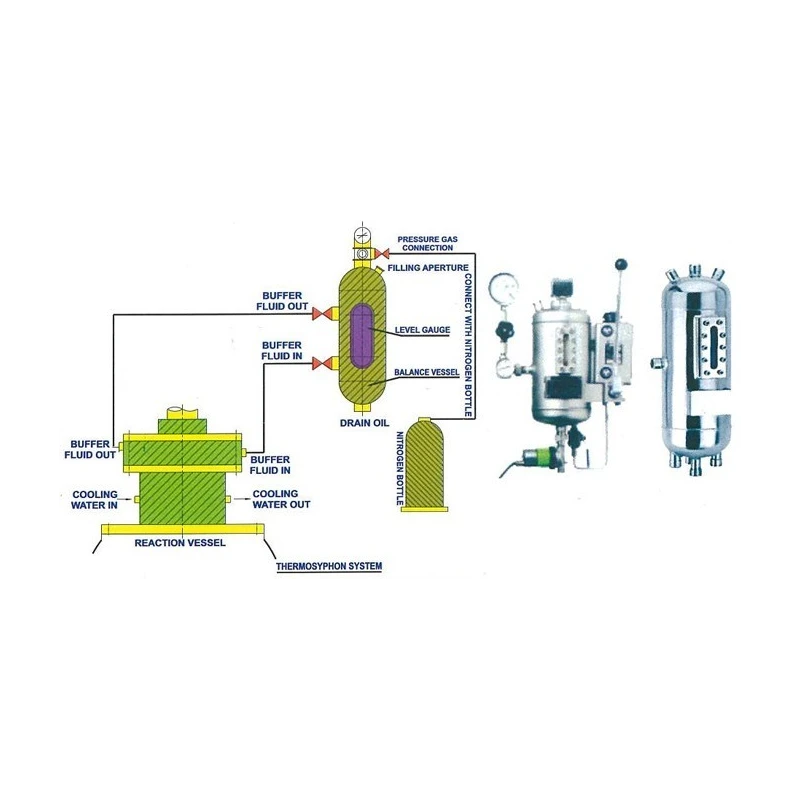

Thermosyphon system made of finest quality material that is SS 304/SS 316. We have developed GTS 1 series of thermosyphon systems. It is a storage and pressurizing unit. The thermosyphon system is a very effective system, used with double mechanical seals as back to back or tandem seal arrangement. The cooling coil is used to bring down the temperature of barrier fluid flowing to the thermosyphon from the seal.Accessories Pressure Gauge (0-40 kg/cm ): To Measure the Pressure Inside the Vessel Level Gauge: To Indicate the liquid level Inside the Vessel Hand Pump: To Recharge the Thermosyphon vessel with an Additional Quantity of Barrier Fluid when the Thermosyphon is under Pressure and the Liquid level is Low.Metal Parts Thermosyphon Shell: Carbon Steel: SS 304/SS 316 Cooling Coil: SS 304/SS 316 Empty Weight: 32 (kg/cm )Connection Specifications Cooling Water Inlet: 1/2" NPT (F) Cooling Water Outlet: 1/2"NPT (F) Buffer Inlet: 1/2" NPT (F) Buffer Outler: 1/2" NPT (F) Pressure Gauge Connection: 3/8" NPT (F) Filling Connection: 1/2" NPT (F) Pressure Gas Connection: 1/2" NPT (F) Refilling Connection: 1/4" NPT (F) Drain: 1/2" NPT (F)
- Dimensionally accurate
- Sturdy construction
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacity of this thermosyphon system is 7.5 litres.
The maximum working temperature for the GTS-1 Series is 150°C.
The design pressure of the Thermosyphon System GTS-1 Series is 10 bar (kg/cm²).
The recommended cooling water flow rate for this model is 10 litres per minute.
The thermosyphon shell is made of carbon steel, and the cooling coil is constructed from SS 304/SS 316.
This model features multiple connections including 1/2" NPT (F) for cooling water inlet and outlet, buffer inlet and outlet, and several other connections for pressure gauge and refilling.
Included accessories are a pressure gauge (0-40 kg/cm²), a level gauge, and a hand pump for recharging the thermosyphon vessel.
The heat transfer area of the cooling coil in this system is 0.226 m².
The hydraulic test pressure for the Thermosyphon System GTS-1 Series is 15 bar (kg/cm²).
The empty weight of the GTS-1 Series thermosyphon system is 32 kg.
The cooling coil is used to bring down the temperature of the barrier fluid flowing to the thermosyphon from the seal.
This model uses double mechanical seals arranged in a back-to-back or tandem configuration.
