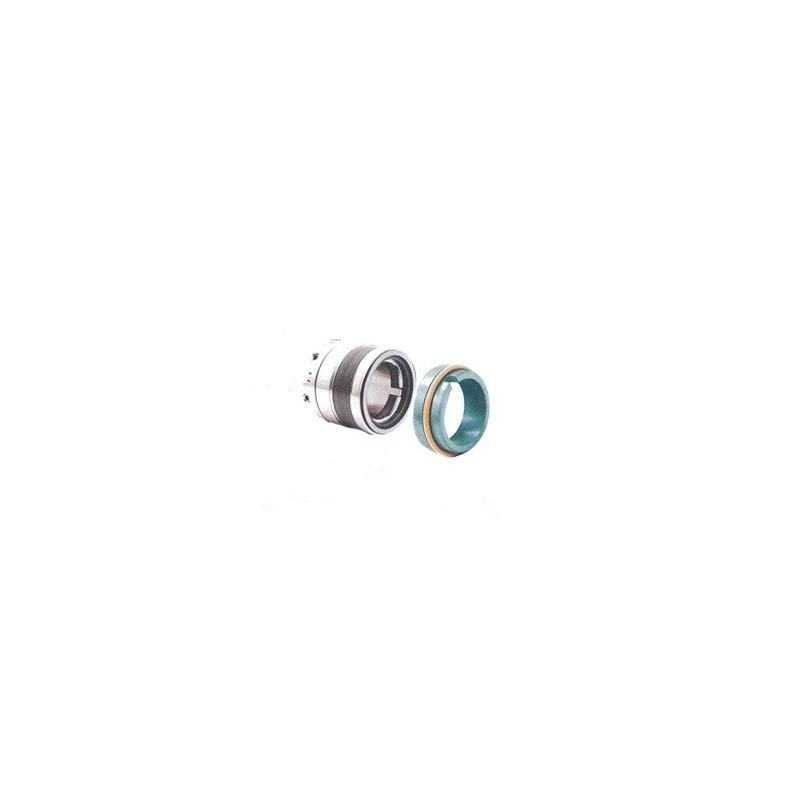

Metal Bellow Seals MB61 Series
Specifications
| Pressure | 25 Bar (kg/cm 2) |
|---|---|
| Temperature | -20 C to 400 C |
| Shaft Diameter | 10 mm To 100 mm |
| Shaft Speed | Upto 4000 RPM According to Shaft Size & Pressure. |
| Hardware | AISI 316 SS 304 Carpenter-42 |
| Face Material | (Dynamic Ring & Stationary Ring ) Carbon-M Silicon Carbide Tungsten Carbide. |
| Secondary Seal | Viton Kalrez |
| Welded bellow | AM 350 |
Key Features
- Easy to install
- easy to remove
- Firm grip
Product Description

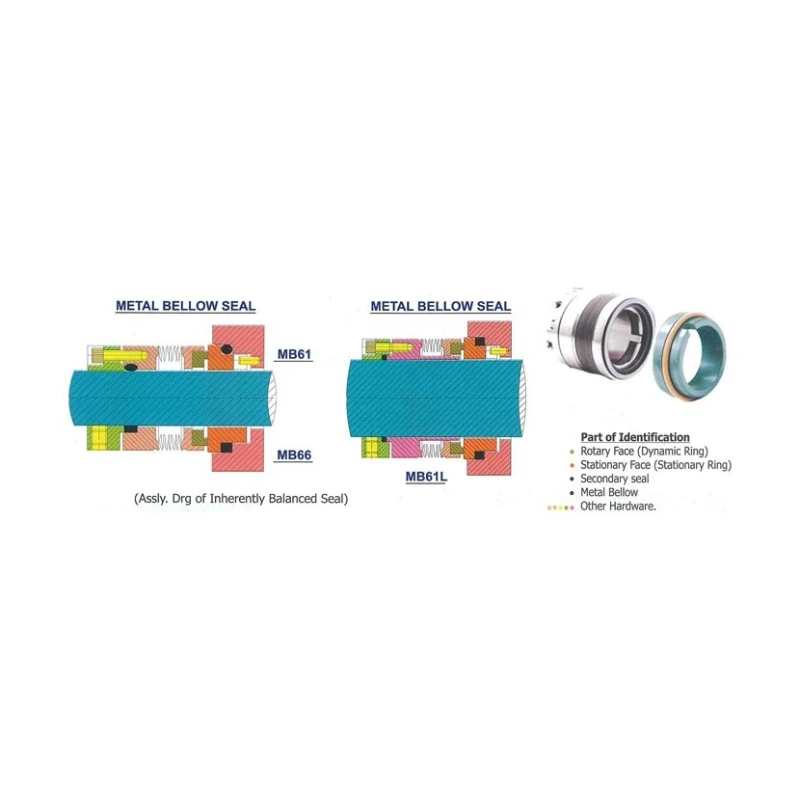

Metal Bellow Seals MB66L Series - a specialist metal bellow seals manufacturer and supplier in India. Metal bellow seals are best for high-temperature applications.Being one of the top most manufacturer, suppliers, and exporters of various types of mechanical seals, we provide the metal bellow seal made of high-quality raw material.We have specially designed and fabricated the MB61 and MB66 series of welded metal bellow seals, for moderate temperature/pressure and high temperature/moderate pressure. The metal bellow seals are proven ideal for high temperature and high corrosive application. These bellow seals are fabricated by welding a series of diaphragms together at the edges to form a bellows unit.The metal bellows seals are used in place of the spring and provide flexibility to the seal. The seal is available as a rubber o-ring and grafoil to use at extremely high temperatures.Application Petrochemical Chemical Refinery Thermic FluidSeal Characteristics Independent of Direction of Rotation Single Acting Welded Metal Bellows Inherently Balanced
- Low maintenance
- Sturdy construction
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates effectively within a temperature range of -20°C to 400°C.
The Metal Bellow Seals MB61 Series can handle pressures up to 25 Bar (kg/cm²).
The maximum shaft speed is up to 4000 RPM, depending on the shaft size and pressure.
The face material for the dynamic and stationary rings includes Carbon-M, Silicon Carbide, and Tungsten Carbide.
The secondary seals are made from Viton and Kalrez materials.
The welded bellow is fabricated using AM 350 material, which involves welding a series of diaphragms together to form a bellows unit.
These seals are designed for use in petrochemical, chemical, refinery, and thermic fluid applications.
This model utilizes a welded metal bellow that replaces traditional springs, providing inherent flexibility to the seal.
Being inherently balanced means that the seals can operate independently of the direction of rotation, enhancing their reliability in various applications.
The hardware for the Metal Bellow Seals MB61 Series is made from AISI 316 and SS 304, as well as Carpenter-42 materials.
The Metal Bellow Seals are designed for low maintenance, which simplifies their upkeep during operation.
