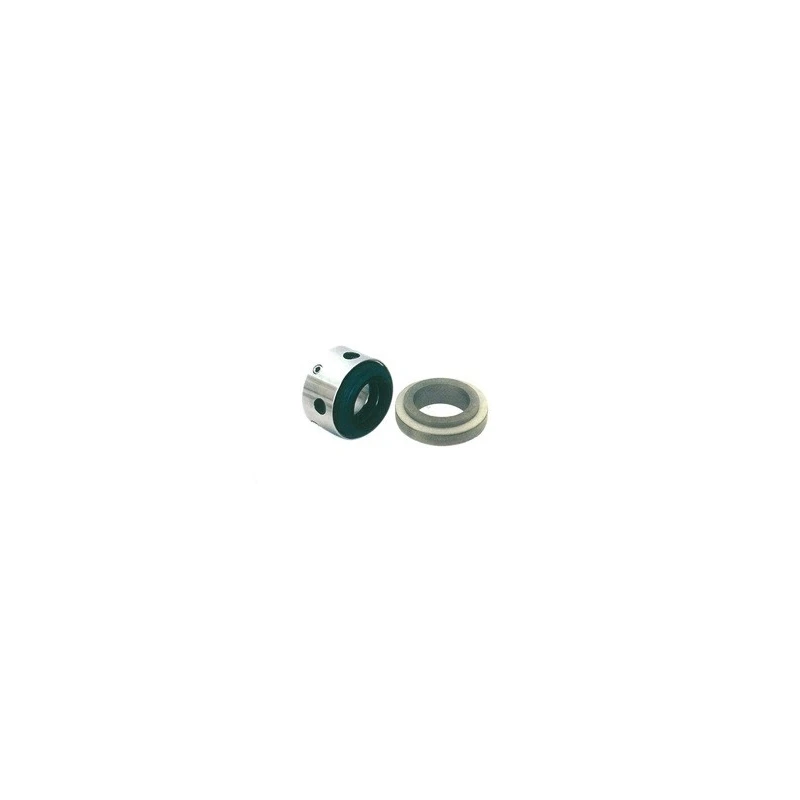

External Mounted Reverse Balance Seal B89R Series
Specifications
| Pressure | Vacuum.....5 Bar (kg/cm 2) |
|---|---|
| Temperature | -45c to 180c |
| Shaft Diameter | 18 mm To 100 mm |
| Shaft Speed | Upto 6000 RPM According To Shaft Size & Pressure. |
| Hardware | SS 316 SS 304 Hast - C Monel Alloy -20. |
| Face Material | (Dynamic Ring & Stationary Ring ) Carbon Ceramic (99.5%). Silicon Carbide Tungsten Carbide Chrome Cast Steel Stellite & Which Are Suitable For Fluid. |
| Elastomer | (Secondary Seal) PTFE GFT CFT FEP TCV Viton Silicon NBR. |
Key Features
- Easy to install and easy to remove
- Dimensionally accurate
Product Description

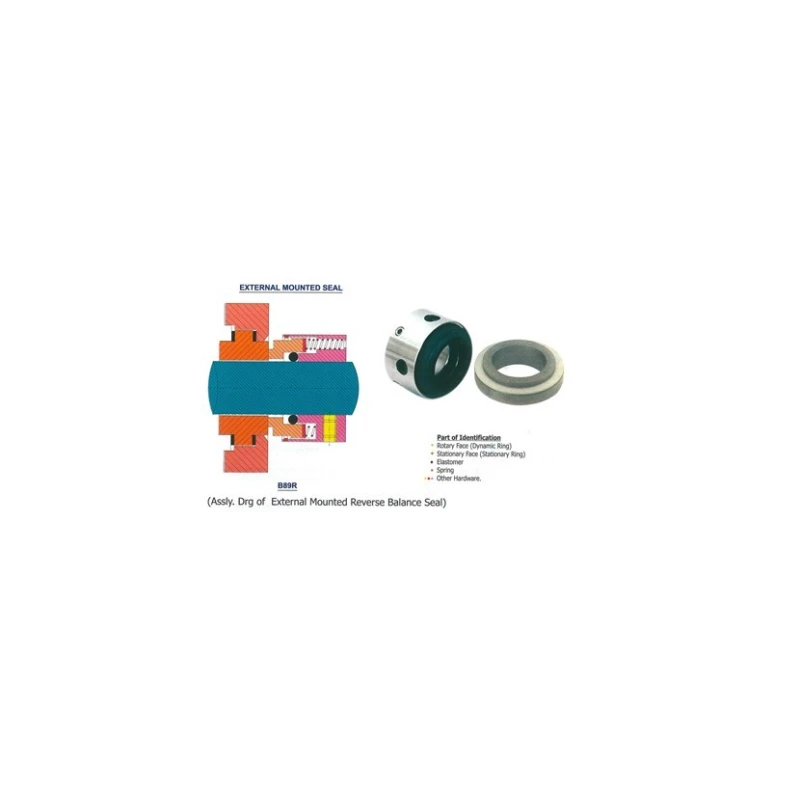

B89R Series of Seals is a Multiple Spring Externally Mounted Balanced Seal with an "O" Ring as a Secondary Sealing Member. This seal can also be used for corrosive services as the Metallic Components i.e. Retainer, Spring, Washer, etc. do not come in contact with the liquid to be Sealed. Various Seal Face Materials and Elastomers can be offered for wide service applications.Seal CharacteristicsSingle ActingReverse BalancedIndependent Direction Of DirectionOutside MountedApplicationAcid & Acidic AtmosphereGeneral & Light ChemicalsExtremely Corrosive Services
- Long-lasting
- Located inside
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pressure rating of this seal is vacuum to 5 Bar (kg/cm²).
It can operate within a temperature range of -45°C to 180°C.
The maximum shaft speed is up to 6000 RPM, depending on the shaft size and pressure.
The hardware components are made from SS 316, SS 304, Hast - C, Monel Alloy -20.
Available face materials include Carbon Ceramic (99.5%), Silicon Carbide, Tungsten Carbide, Chrome Cast Steel, and Stellite.
It is suitable for applications involving acids, acidic atmospheres, general and light chemicals, and extremely corrosive services.
This seal is designed to be easy to install and remove, facilitating straightforward setup.
The provided information does not specify maintenance requirements for this model.
This model is characterized by its multiple spring, externally mounted balanced design with an "O" ring as a secondary sealing member.
