RS PRO Brushed Geared DC Geared Motor, 22.7 W, 12V DC, 3.8 Nm Torque, 97 RPM, 6 mm Shaft Diameter B75D3A7ED6BO

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Brushed Geared DC Geared Motor, 22.7 W, 12V DC, 3.8 Nm Torque, 97 RPM, 6 mm Shaft Diameter B75D3A7ED6BO

Name: RS PRO Brushed Geared DC Geared Motor, 22.7 W, 12V DC, 3.8 Nm Torque, 97 RPM, 6 mm Shaft Diameter B75D3A7ED6BO
Brand: RS PRO
SKU: 218439
Price: 731.26 USD
Availability: InStock



Category Geared Motors Brand RS PRO Condition New

Specifications

Country of Origin	Switzerland
Brand	RS PRO
Material	Steel
Length	69.9mm
Model	B75D3A7ED6BO
Depth	22mm
Width	22mm
Mount Type	Screw
Current Rating	1.65A
Series	DCX
Power Rating	22.7W
Sub Type	Brushed Geared
Output Speed	97rpm
Shaft Diameter	6mm
Shaft Length	18.9mm
Supply Voltage	12V dc
Gear ratio	103:1
Standards/Approvals	RoHS
Maximum Output Torque	3.8Nm
Gearhead Type	Planetary
Gear Ratio 103	1
103	1

Key Features

Supplied with a 12V DC brushed planetary gearhead motor delivering 22.7 Watts of power.
Provides a maximum output torque of 3.8 Newton meters for high-torque applications.
Features a 6 mm diameter steel shaft with an 18.9 mm shaft length for durable coupling.
Compact motor dimensions with length of 69.9 mm, width of 22 mm, and depth of 22 mm.
Gearhead is preloaded with ball bearings for low backlash and smooth operation.
Mount type is screw, enabling secure installation in diverse industrial setups.
Constructed with durable steel material ensuring longevity and reliability.
Meets RoHS standards, suitable for environmentally conscious manufacturing.

Product Description

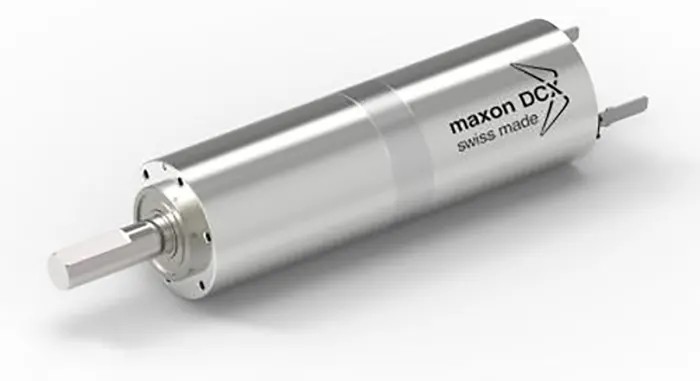

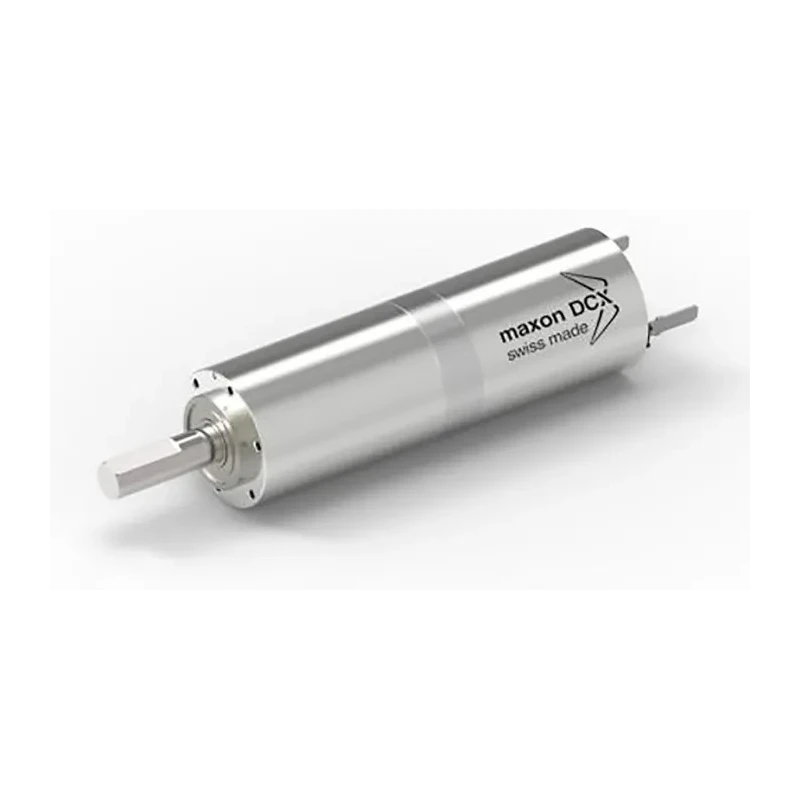

Maxon B75D3A7ED6BO is a brushed geared DC geared motor designed for high torque and precision in industrial automation and control applications. Operating at 12V DC, it delivers a power output of 22.7 W coupled with a planetary gearhead that provides a gear ratio of 103:1 to achieve a low output speed of 97 rpm and a maximum torque of 3.8 Nm. The motor features a steel 6 mm diameter shaft with an 18.9 mm length and is mounted securely via screw mounts.

This motor is constructed from high-grade steel, offering durability and extended operational life. The gearhead includes preloaded ball bearings to minimize backlash and noise, ensuring smooth and accurate motion control ideal for robotic and automation systems requiring precision.

With compact dimensions (69.9 mm length, 22 mm width and depth), it fits well into constrained spaces while delivering robust performance. It complies with RoHS standards, asserting its environmental safety for manufacturing use.

The Maxon B75D3A7ED6BO brushed geared DC motor is perfect for applications in industrial machinery, laboratory equipment, robotics, and other settings requiring reliable DC motor drive solutions with high torque and controlled output speed.

Supplied with a 12V DC brushed planetary gearhead motor delivering 22.7 Watts of power. Provides a maximum output torque of 3.8 Newton meters for high-torque applications. Output speed rated at 97 revolutions per minute with a 103:1 gear ratio.

Features a 6 mm diameter steel shaft with an 18.9 mm shaft length for durable coupling. Compact motor dimensions with length of 69.9 mm, width of 22 mm, and depth of 22 mm. Gearhead is preloaded with ball bearings for low backlash and smooth operation.

Mount type is screw, enabling secure installation in diverse industrial setups. Constructed with durable steel material ensuring longevity and reliability. Meets RoHS standards, suitable for environmentally conscious manufacturing.

Ideal for precision industrial, automation, robotic, and control gear applications. Explore more Geared Motors and DC motors at EnvMart for various industrial and laboratory automation needs.
