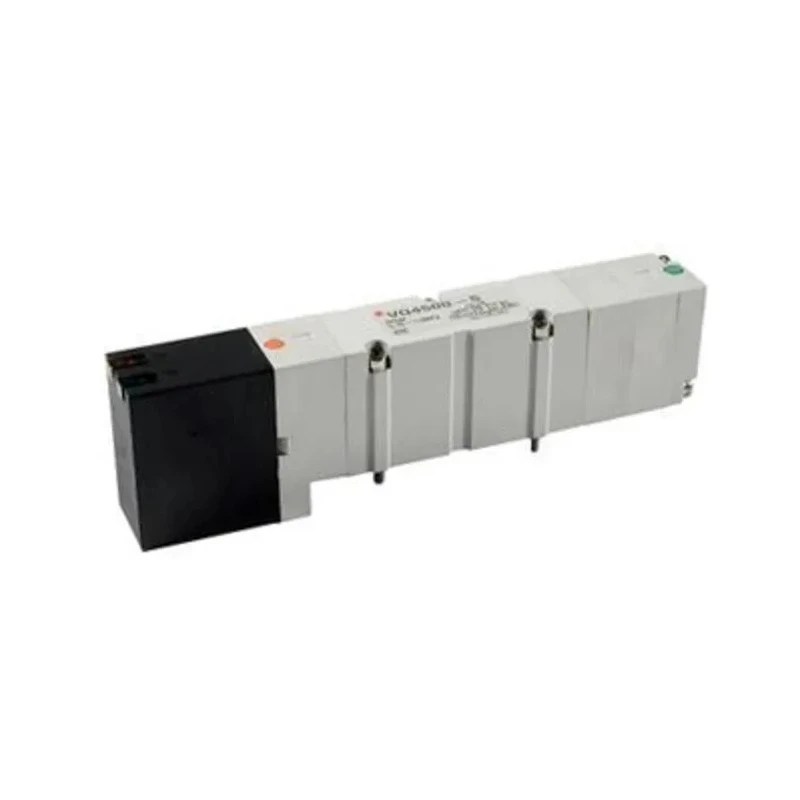

SMC Pneumatic Solenoid Pilot-Operated Control Valve 3/3 Solenoid Rc Threaded Port 3/8 in 24V DC 1W VQ4000

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Pilot-Operated Control Valve 3/3 Solenoid Rc Threaded Port 3/8 in 24V DC 1W VQ4000



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Aluminium
Maximum Operating Pressure	0.7 Mpa
Height	78.8mm
Length	158mm
Model	VQ4000
Width	48mm
Mount Type	Base
Series	VQ4000
Number Of Ports	5
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	3
Port Size	3/8 in
Seal Material	Rubber
Minimum Operating Temperature	-5°C
Operating pressure range	0.15 - 1.0MPa
Actuation Type	Solenoid
Fluid	air/inert gas
Standards/Approvals	CE, RoHS
Connection Thread Standard	Rc
Minimum Pilot Pressure	0.15MPa
Valve Function	3/3
Electrical Connection Type	Grommet
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	1W
Ambient & fluid temperature	Metal Seal -10 to 50°C,Rubber Seal -5 to 50°C

Key Features

Valve features a 3/3 valve function with three positions.
Operates at a maximum pressure of 0.7 MPa with a pilot pressure range of 0.15 to 0.7 MPa.
Constructed with an aluminium body and rubber seals for durability.
Designed for fluid types including air and inert gases.
Electrical connection is via grommet type, supporting stable and reliable solenoid actuation.
Valve supports ambient operating temperatures from -5°C to 50°C.
Compact dimensions with a length of 158 mm, width 48 mm, and height 78.8 mm.
Compliant with CE and RoHS standards ensuring industrial safety and environmental compliance.

Product Description

SMC VQ4301-5W1-Q is a pneumatic solenoid pilot-operated control valve from the VQ4000 series, rated at 24V DC with a power consumption of 1W. This 3/3 solenoid Rc valve uses threaded Rc standard ports sized at 3/8 inch, and it is constructed with a durable aluminium body combined with rubber seal material, providing reliable performance in pneumatic systems.

The valve features five ports configured with female port gender and a valve function that supports three positions, suitable for applications requiring stable response and frequent operation. It operates efficiently at a maximum operating pressure of 0.7 MPa and pilot pressures ranging from 0.15 to 0.7 MPa. Ambient and fluid temperatures range from -5°C to 50°C, with metal seal variations providing operation down to -10°C.

Designed with a base mount type for easy integration and installation, the valve uses a grommet electrical connection to enable precise solenoid actuation. Its compact size and low power consumption make it ideal for industrial automation, pneumatic control, fluid power, and manufacturing processes.

Valve function: 3/3 with three positions for versatile control. Port type and size: Rc threaded, 3/8 in ports for secure fitting. Operating pressure: Maximum 0.7 MPa with pilot pressures from 0.15 MPa to 0.7 MPa. Body material: Aluminium providing lightweight durability.

Seal material: Rubber ensuring airtight sealing and longevity. Electrical: Solenoid actuation type with single solenoid design. Voltage: 24V DC for reliable electrical operation. Standards: CE and RoHS certified for safety and environmental compliance.

Operating temperature range: -5°C to 50°C suitable for a variety of environments. Dimensions: Length 158 mm, Width 48 mm, Height 78.8 mm for compact installation.

Manufactured in Japan, this product meets stringent quality standards. It is suited for industrial applications including pneumatic systems in manufacturing plants, automation controls, and fluid power devices.
