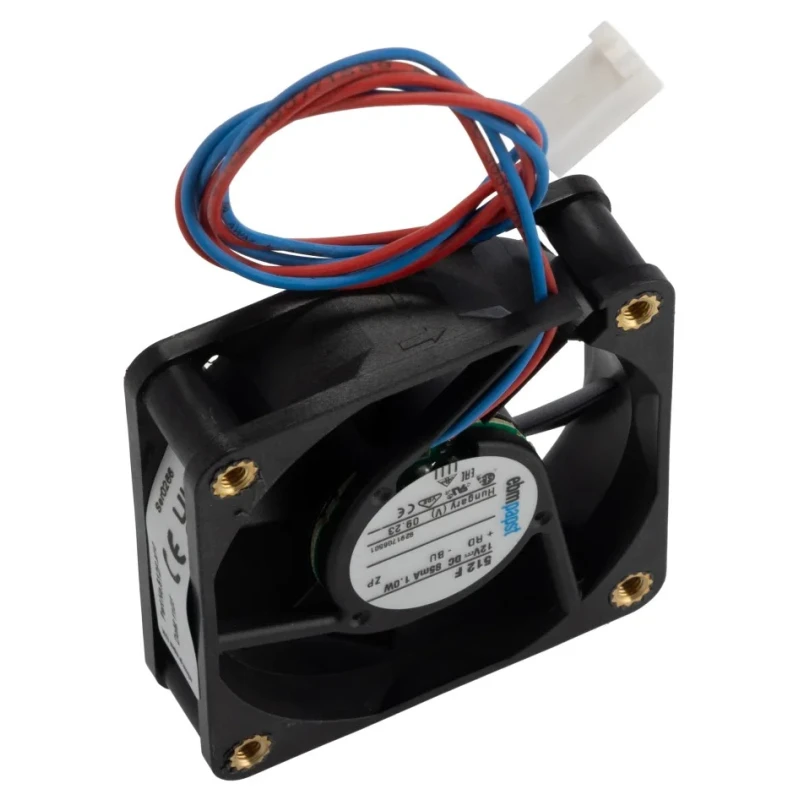

ebm-papst 500 F Series Axial Fan 12V DC 1W 83mA Max Air Flow 20m³/h IP20 50mm x 50mm x 15mm
Specifications
| Country of Origin | Hungary |
|---|---|
| Power Consumption | 1W |
| Brand | ebm-papst |
| Height | 50mm |
| Fan Speed | 5000rpm |
| Air Flow | 20m³/h |
| Model | IP20 |
| IP Rating | IP20 |
| Noise Level | 30dB |
| Width | 50mm |
| Series | 500 F |
| Maximum Current | 83mA |
| Terminal type | Connector |
| External Depth | 15mm |
| Supply Voltage | 12V dc |
| Bearing Type | Sleeve |
| Standards/Approvals | UL, VDE, EAC, CE, CSA, CCC |
| Fan Frame Size | 50 mm |
| Fan Frame Type | Square |
| Direction of Curve | Forward |
Key Features
- Operates at 12V DC voltage with a power consumption of 1 watt.
- Delivers an air flow rate of 20 cubic meters per hour for effective cooling.
- Maximum current is 83 milliamperes ensuring energy-efficient operation.
- Fan speed reaches up to 5000 revolutions per minute for optimal ventilation.
- Constructed with a square 50 mm frame, 50 mm height, and a 15 mm depth for compact mounting.
- IP20 rated for protection against solid particles but not water ingress.
- Features a sleeve bearing type to support the fan's smooth rotation.
- Equipped with connector terminal type and threaded brass inserts for easy mounting and connection.
Product Description
ebm-papst 512F-RS0 Axial Fan from the 500 F Series is an advanced compact DC fan designed for high air performance with moderate pressure build-up, ideal for industrial, electronics cooling, and HVAC applications.
This axial fan operates at 12V DC with a low power consumption of 1 watt, drawing a maximum current of 83 milliamperes. It delivers a consistent air flow of 20 cubic meters per hour at a maximum fan speed of 5000 rpm, providing efficient ventilation and cooling for sensitive equipment.

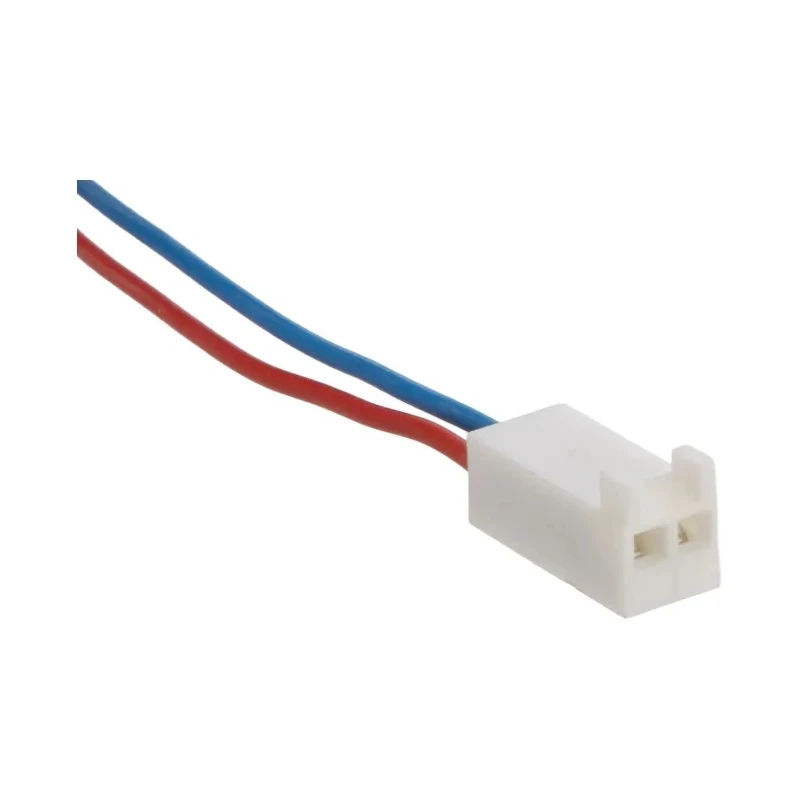

The fan features a durable plastic housing with a square frame measuring 50 mm by 50 mm by 15 mm depth, making it suitable for tight installation spaces. Threaded brass inserts on both sides allow secure mounting using M3 threaded bolts, while the Molex 22-01-2025 connector ensures reliable electrical connectivity with a lead length of approximately 313 mm.
Equipped with sleeve bearings for smooth rotation, this fan produces a noise level of only 30 dB, supporting quiet operation in commercial and laboratory environments. It is IP20 rated, offering protection against solid foreign objects but not water, making it suitable for indoor use.
Safety and quality are certified with compliance to UL, VDE, EAC, CE, CSA, and CCC standards, while its manufacture in Hungary reflects high build quality. Operates at 12V DC with 1W power consumption and 83mA max current.
Airflow rate of 20m³/h providing efficient cooling performance. Compact size: 50mm width, 50mm height, and 15mm depth. Square frame with threaded brass inserts for easy installation. Quiet operation with noise level rated at 30 dB.
Sleeve bearing type for durability and smooth operation. IP20 rated for protection against solid objects. Connector terminal with Molex connector included. Complies with multiple international safety standards. Designed for use in industrial, HVAC, electronics, and thermal management applications.
This ebm-papst axial fan is suitable for a wide range of industrial, commercial, and laboratory ventilation, cooling and air circulation applications. Explore more Axial Fans and cooling solutions in the EnvMart Industrial Coolers Blowers & Fans category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The fan delivers a maximum airflow rate of 20 cubic meters per hour.
It operates with a power consumption of 1 watt.
This axial fan can reach a maximum fan speed of 5000 revolutions per minute.
The fan has a square frame measuring 50 mm in width, 50 mm in height, and 15 mm in depth.
The noise level of the fan is rated at 30 dB, supporting quiet operation.
It is equipped with sleeve bearings for smooth rotation.
The fan is rated IP20, providing protection against solid foreign objects but not water ingress.
This model operates at a supply voltage of 12V DC.
The fan is equipped with a connector terminal type, specifically a Molex connector.
It is manufactured in Hungary.
The fan complies with multiple safety standards including UL, VDE, EAC, CE, CSA, and CCC.
This fan is designed for use in industrial, HVAC, electronics, and thermal management applications.
