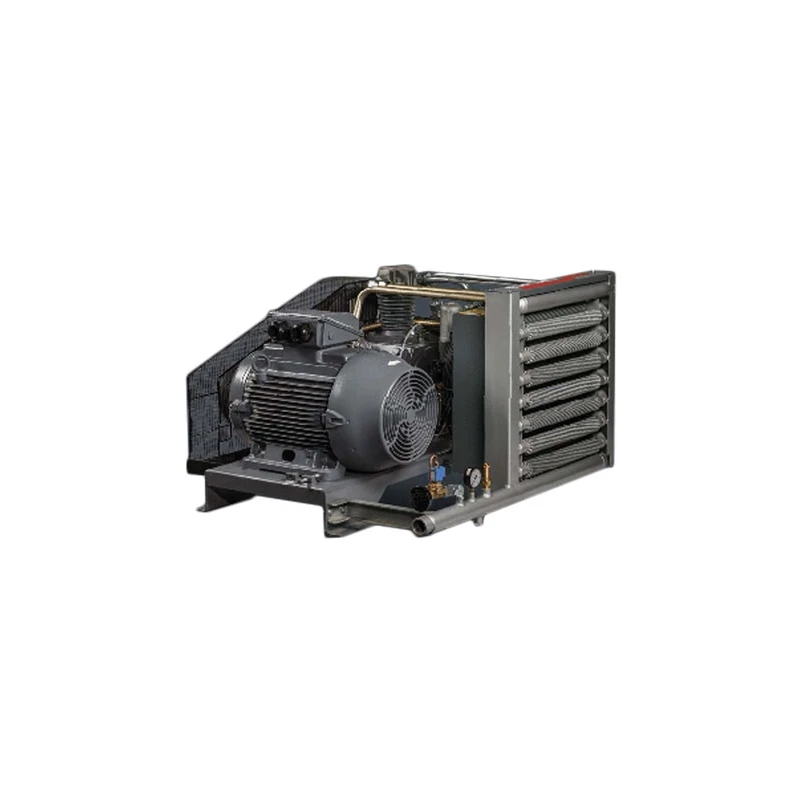

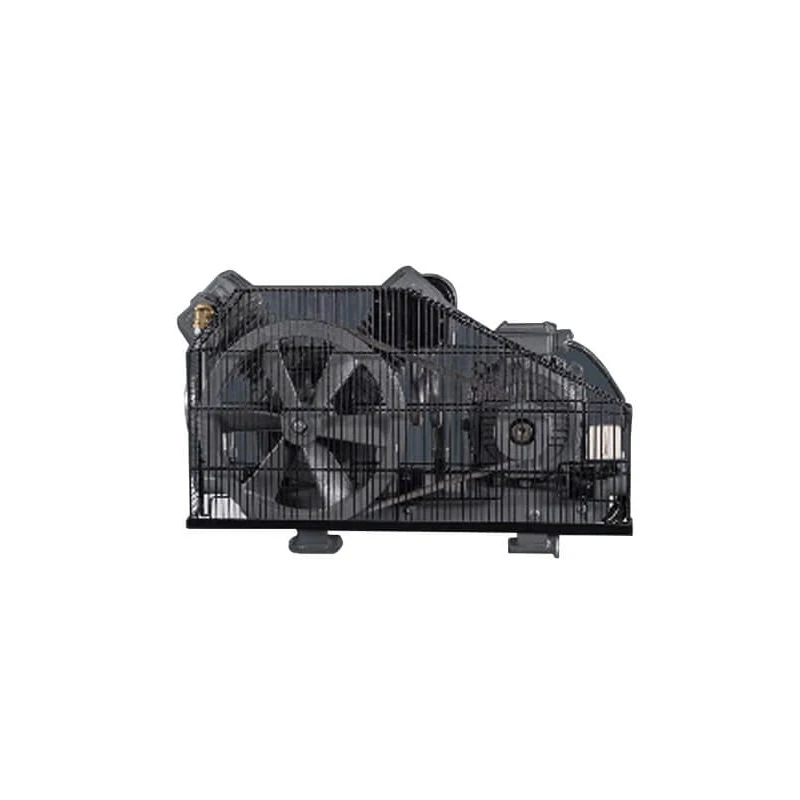

Booster Air Compressor 40 HP

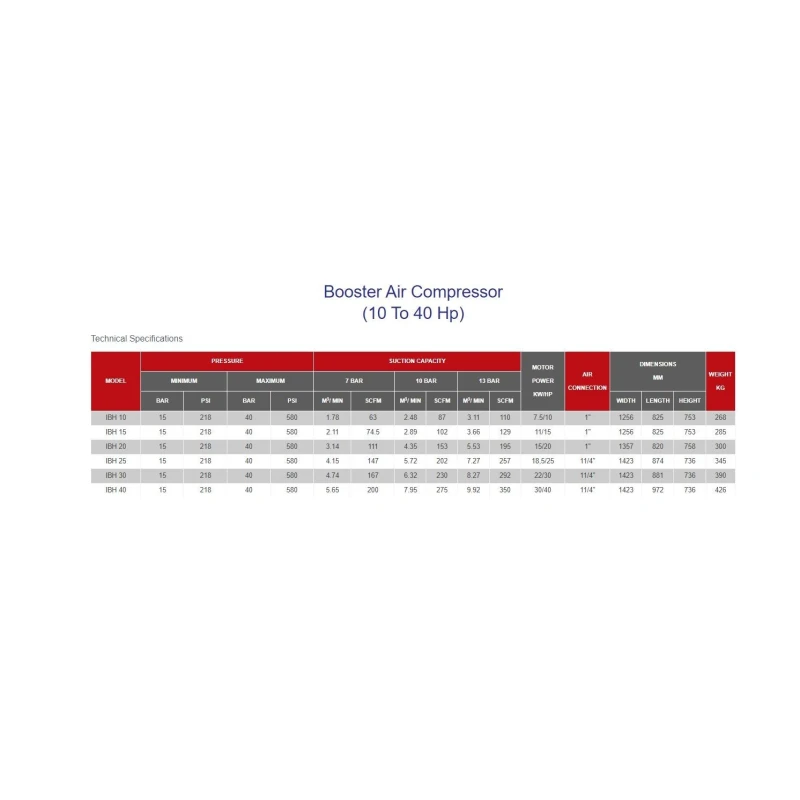

Specifications
| Motor Power | 30 kW / 40 HP |
|---|---|
| Height | 736 mm |
| Length | 972 mm |
| Model | IBH 40 |
| Width | 1423 mm |
| Weight | 426 kg |
| Suction Capacity | 7.95 m³/min |
| Air Connection | 1 inch |
| Pressure Minimum | 15 bar |
| Pressure Maximum | 40 bar |
Key Features
- High efficiency 415V/3 phase/50Hz IE2 IP55 electric motor.
- Special loadless start system and automatic discharge system for loadless start
- Belt-pulley drive system
- Cast iron cylinder with cooling fins and special aluminum alloy cylinder heads
- Specially designed high-speed stainless steel concentric valves.
- Cast iron crankcases with high strength
- Dynamically-balanced cast steel crankshaft and counter weight
- Special alloy aluminum pistons and steel cast connecting rods
Product Description
Booster Air Compressor 40 HP High-quality components such as IP55 electric motors with the IE2 efficiency class, star-delta motor starter system, electrical as per the market requirements, and durable compressor blocks are provided as standard in all our products.
- Stainless steel suction-discharge valves, specially designed for high pressure strength
- Automatic discharge system for loadless start
- Bearings with a long service life
- Outlet air cooling radiator
- Loaded-Unloaded operating options
- Lubrication system with whisking rod
- Special discharge system preventing oil leakage from blowdown valve
- Easy maintenance
