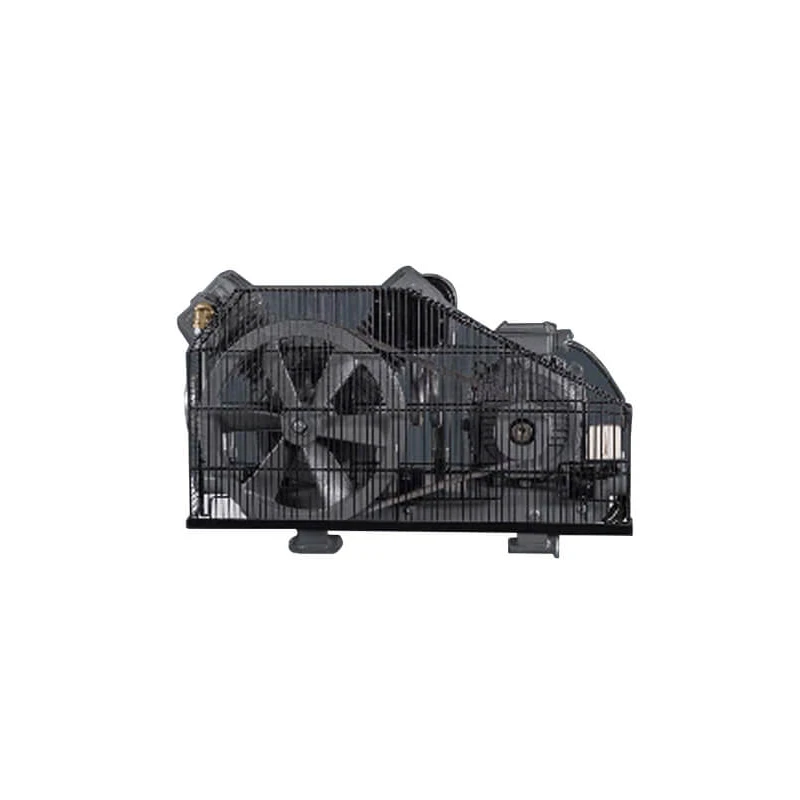

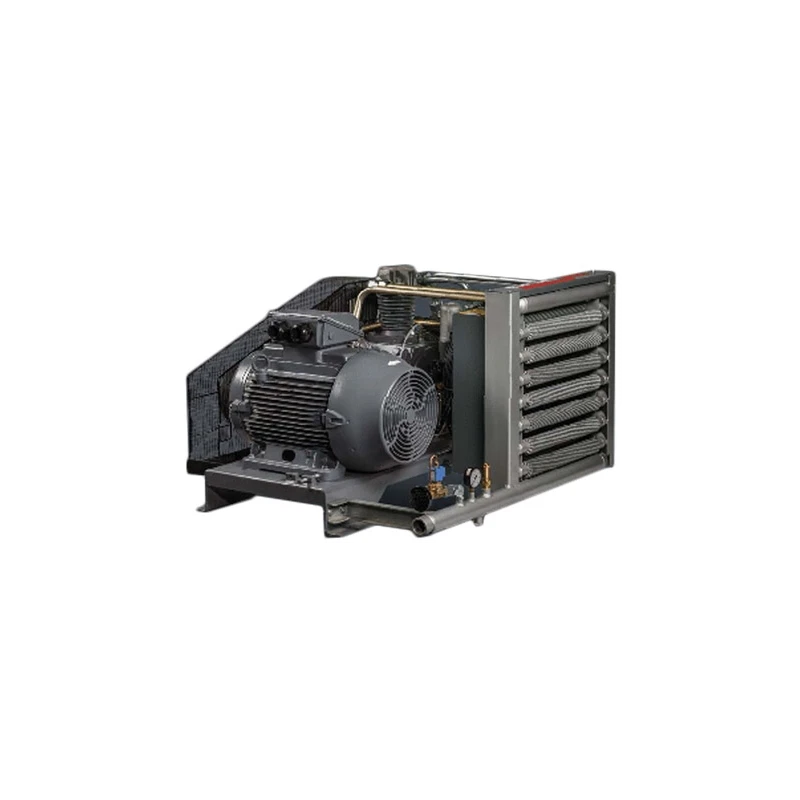

Booster Air Compressor 30 HP

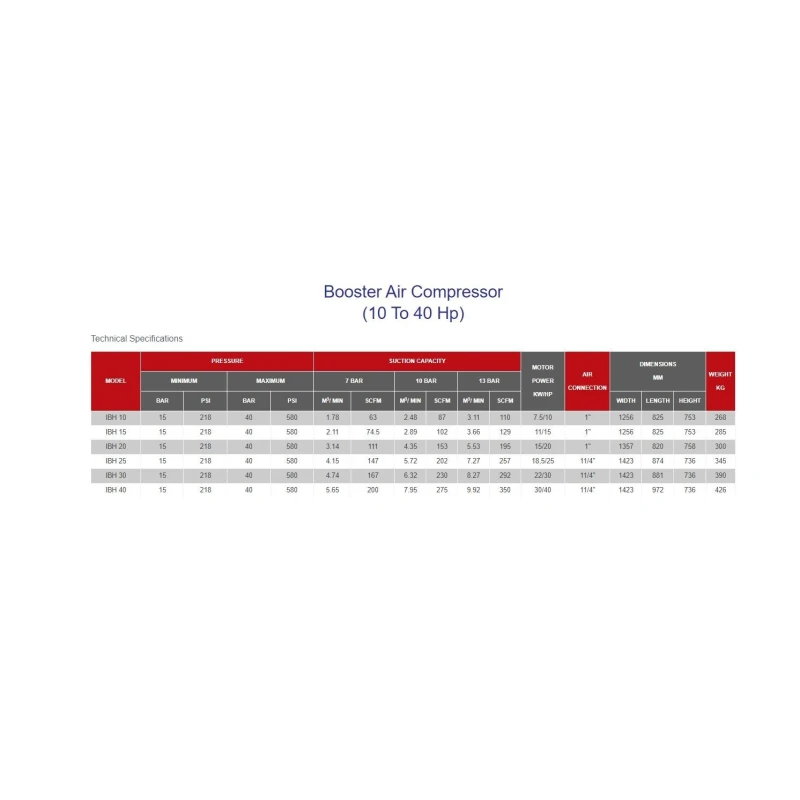

Specifications
| Motor Power | 22 kW / 30 HP |
|---|---|
| Height | 736 mm |
| Length | 881 mm |
| Model | IBH 30 |
| Width | 1423 mm |
| Weight | 390 kg |
| Suction Capacity | 6.32 m³/min |
| Air Connection | 1 inch |
| Pressure Minimum | 15 bar |
| Pressure Maximum | 40 bar |
Key Features
- High efficiency 415V/3 phase/50Hz IE2 IP55 electric motor.
- Special loadless start system and automatic discharge system for loadless start
- Belt-pulley drive system
- Cast iron cylinder with cooling fins and special aluminum alloy cylinder heads
- Specially designed high-speed stainless steel concentric valves.
- Cast iron crankcases with high strength
- Dynamically-balanced cast steel crankshaft and counter weight
- Special alloy aluminum pistons and steel cast connecting rods
Product Description
Booster Air Compressor 30 HP High-quality components such as IP55 electric motors with the IE2 efficiency class, star-delta motor starter system, electrical as per the market requirements, and durable compressor blocks are provided as standard in all our products.
- Stainless steel suction-discharge valves, specially designed for high pressure strength
- Automatic discharge system for loadless start
- Bearings with a long service life
- Outlet air cooling radiator
- Loaded-Unloaded operating options
- Lubrication system with whisking rod
- Special discharge system preventing oil leakage from blowdown valve
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor power of this model is 22 kW, which is equivalent to 30 HP.
It has a suction capacity of 6.32 m³/min.
The minimum pressure is 15 bar and the maximum pressure is 40 bar.
The dimensions are 736 mm in height, 881 mm in length, and 1423 mm in width.
This model weighs 390 kg.
It features a 1 inch air connection.
It uses a 415V, 3 phase, 50Hz IE2 IP55 electric motor.
Yes, it includes a special loadless start system and an automatic discharge system for loadless start.
It features a cast iron cylinder with cooling fins and specially designed high-speed stainless steel concentric valves.
It is equipped with a lubrication system that includes a whisking rod.
It has a dynamically-balanced cast steel crankshaft with a counterweight for improved performance.
