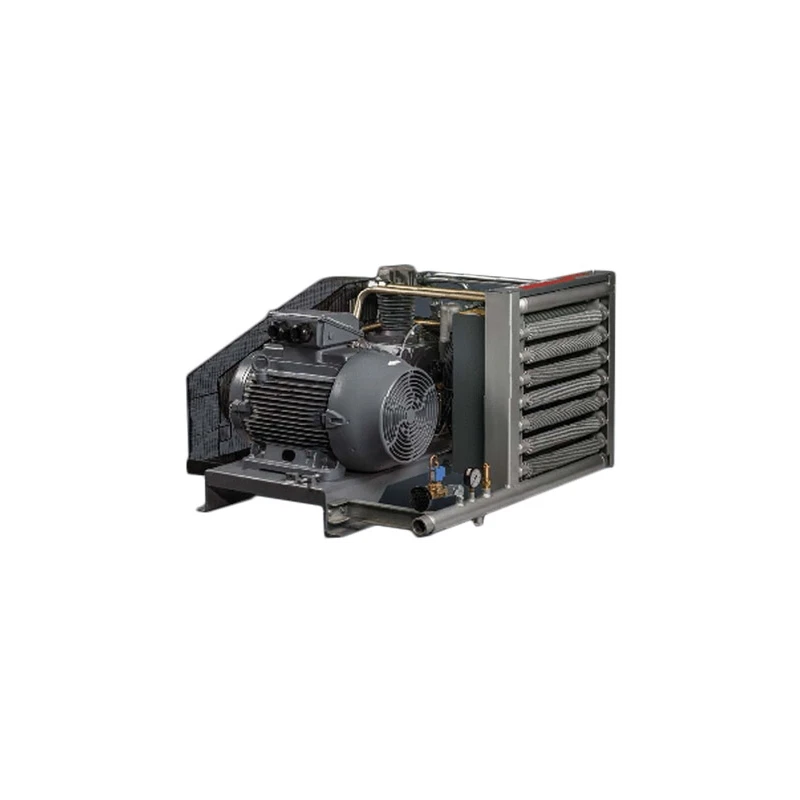

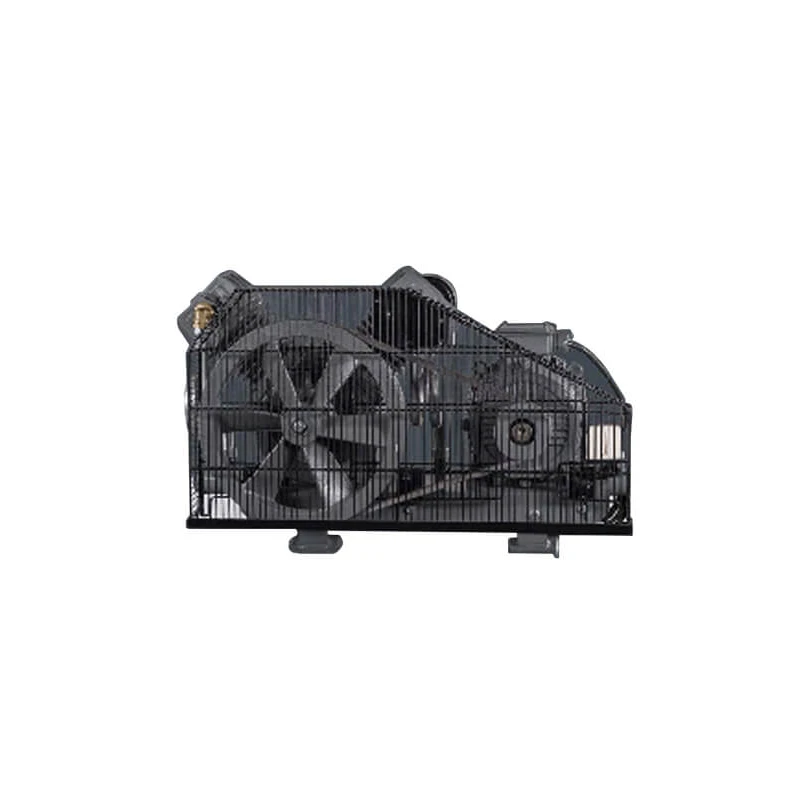

Booster Air Compressor 25 HP

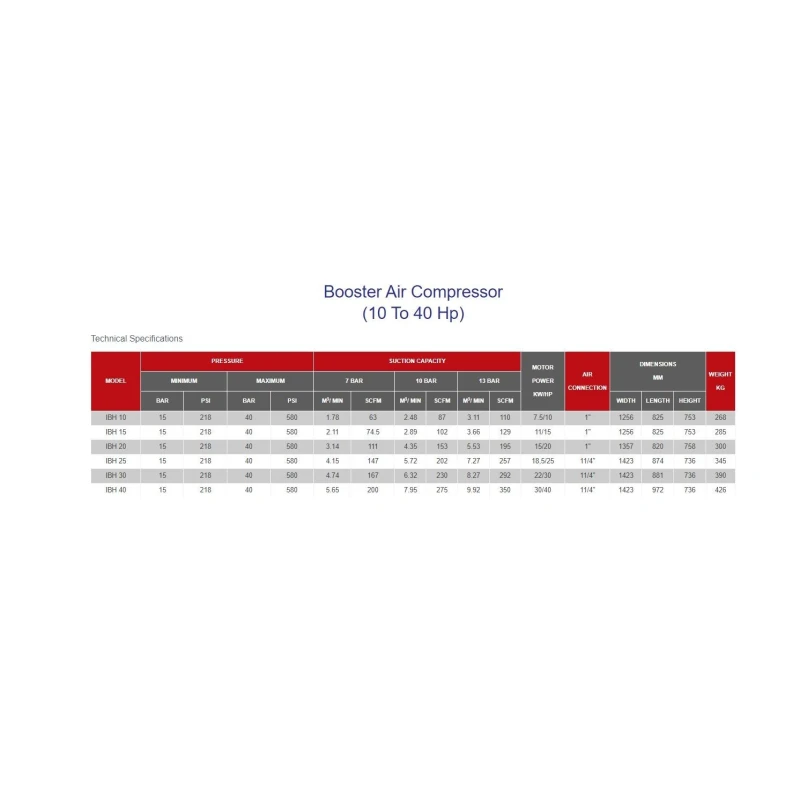

Specifications
| Motor Power | 18.5 kW / 25 HP |
|---|---|
| Height | 736 mm |
| Length | 874 mm |
| Model | IBH 25 |
| Width | 1423 mm |
| Weight | 345 kg |
| Suction Capacity | 5.72 m³/min |
| Air Connection | 1 inch |
| Pressure Minimum | 15 bar |
| Pressure Maximum | 40 bar |
Key Features
- High efficiency 415V/3 phase/50Hz IE2 IP55 electric motor.
- Special loadless start system and automatic discharge system for loadless start
- Belt-pulley drive system
- Cast iron cylinder with cooling fins and special aluminum alloy cylinder heads
- Specially designed high-speed stainless steel concentric valves.
- Cast iron crankcases with high strength
- Dynamically-balanced cast steel crankshaft and counter weight
- Special alloy aluminum pistons and steel cast connecting rods
Product Description
Booster Air Compressor 25HP High-quality components such as IP55 electric motors with the IE2 efficiency class, star-delta motor starter system, electrical as per the market requirements, and durable compressor blocks are provided as standard in all our products.
- Stainless steel suction-discharge valves, specially designed for high pressure strength
- Automatic discharge system for loadless start
- Bearings with a long service life
- Outlet air cooling radiator
- Loaded-Unloaded operating options
- Lubrication system with whisking rod
- Special discharge system preventing oil leakage from blowdown valve
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Booster Air Compressor has a motor power of 18.5 kW, which is equivalent to 25 HP.
The dimensions of the Booster Air Compressor are 736 mm in height, 874 mm in length, and 1423 mm in width.
This model has a suction capacity of 5.72 m³/min.
The operating pressure range for this air compressor is between 15 bar and 40 bar.
The air connection for this model is 1 inch.
It uses a high-efficiency 415V/3 phase/50Hz IE2 IP55 electric motor.
Yes, it features a special loadless start system along with an automatic discharge system for loadless starts.
The compressor features a cast iron cylinder with cooling fins and special aluminum alloy cylinder heads.
The weight of the Booster Air Compressor is 345 kg.
It has a lubrication system with a whisking rod to ensure efficient operation.
This model is equipped with specially designed high-speed stainless steel concentric valves for high pressure strength.
It is designed for easy maintenance, with features such as a special discharge system preventing oil leakage from the blowdown valve.
