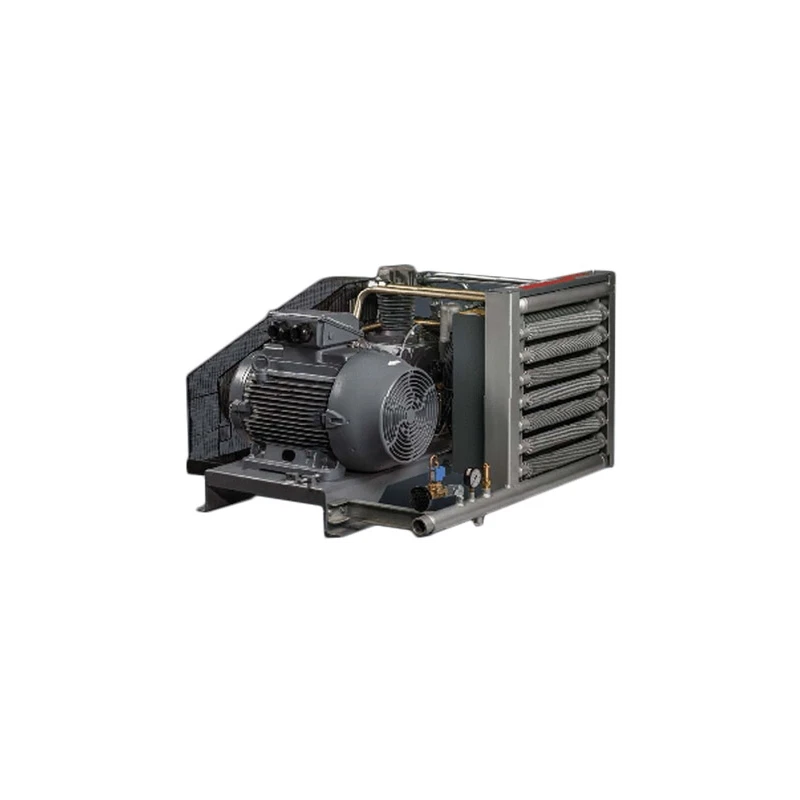

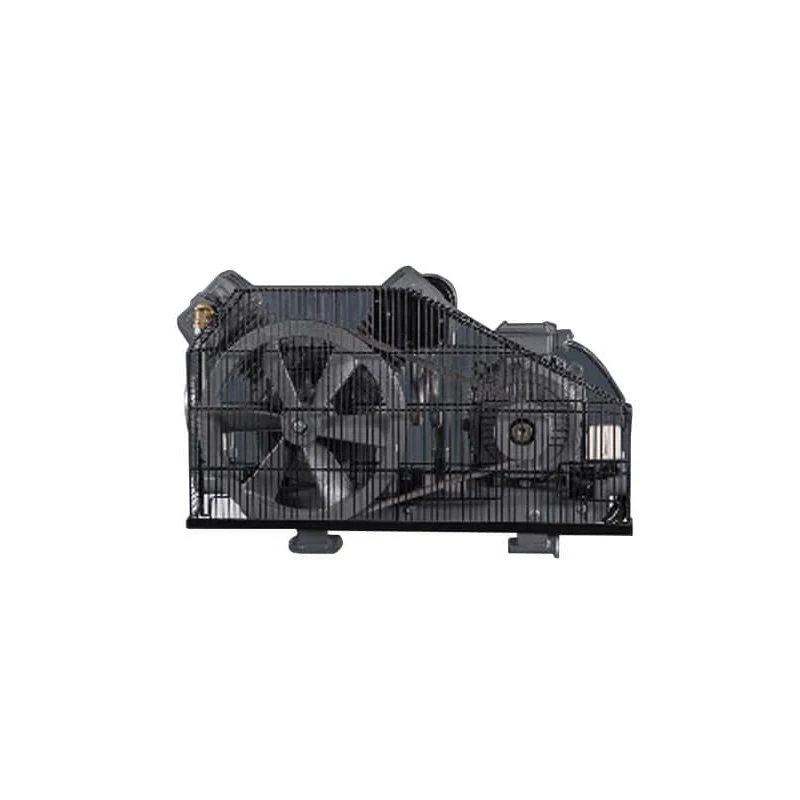

Booster Air Compressor 15HP

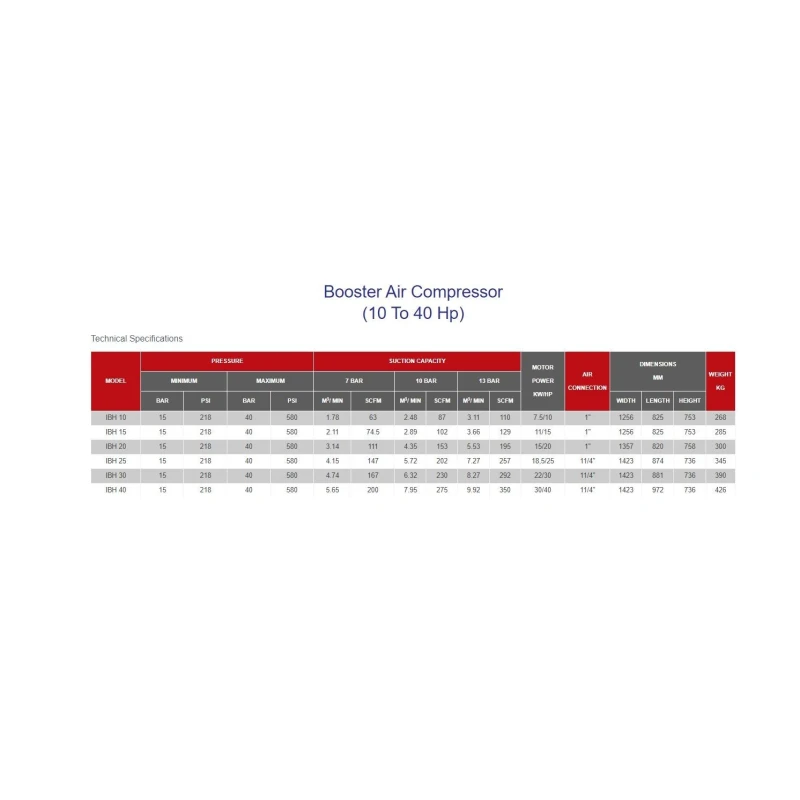

Specifications
| Motor Power | 10 kW / 13.4 HP |
|---|---|
| Height | 753 mm |
| Length | 825 mm |
| Model | IBH 10 |
| Width | 1256 mm |
| Weight | 285 kg |
| Suction Capacity | 2.89 m³/min |
| Air Connection | 1 inch |
| Pressure Minimum | 15 bar |
| Pressure Maximum | 40 bar |
Key Features
- High efficiency 415V/3 phase/50Hz IE2 IP55 electric motor.
- Special loadless start system and automatic discharge system for loadless start
- Belt-pulley drive system
- Cast iron cylinder with cooling fins and special aluminum alloy cylinder heads
- Specially designed high-speed stainless steel concentric valves.
- Cast iron crankcases with high strength
- Dynamically-balanced cast steel crankshaft and counter weight
- Special alloy aluminum pistons and steel cast connecting rods
Product Description
Booster Air Compressor 15 HP High-quality components such as IP55 electric motors with the IE2 efficiency class, star-delta motor starter system, electrical as per the market requirements, and durable compressor blocks are provided as standard in all our products.
- Stainless steel suction-discharge valves, specially designed for high pressure strength
- Automatic discharge system for loadless start
- Bearings with a long service life
- Outlet air cooling radiator
- Loaded-Unloaded operating options
- Lubrication system with whisking rod
- Special discharge system preventing oil leakage from blowdown valve
- Easy maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Booster Air Compressor has a motor power of 10 kW, which is equivalent to 13.4 HP.
This model has a suction capacity of 2.89 m³/min.
The maximum pressure this compressor can achieve is 40 bar.
The dimensions of the compressor are 753 mm in height, 825 mm in length, and 1256 mm in width.
It uses a 1 inch air connection.
The minimum pressure rating for this compressor is 15 bar.
The compressor features a cast iron cylinder with cooling fins and special aluminum alloy cylinder heads.
Yes, it is equipped with a special loadless start system and an automatic discharge system for loadless start.
The weight of this model is 285 kg.
It features a lubrication system with a whisking rod.
The compressor has a dynamically-balanced cast steel crankshaft and counterweight.
The electric motor is rated with an IE2 efficiency class.
