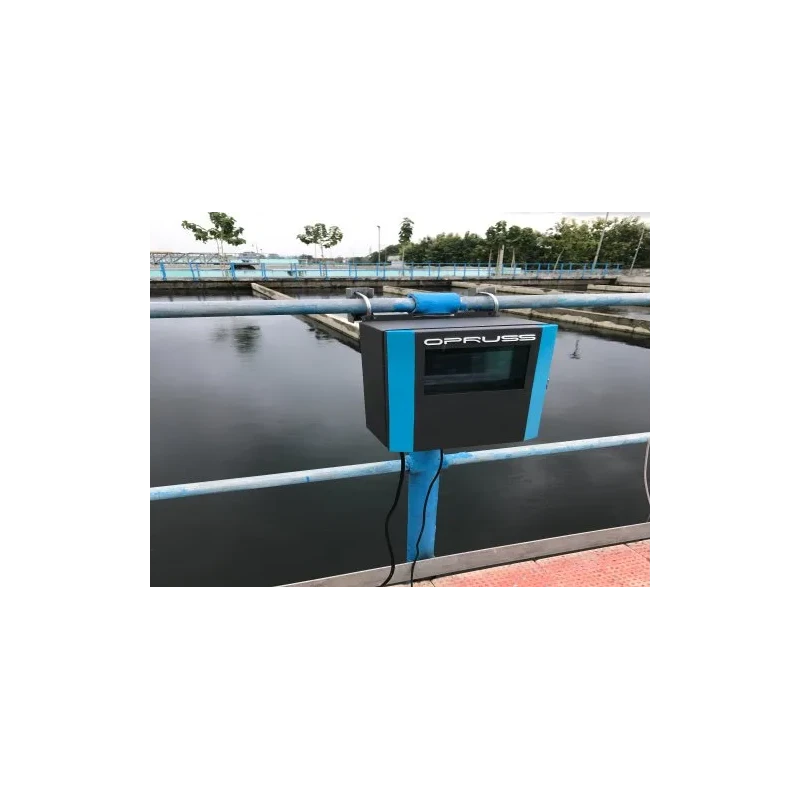

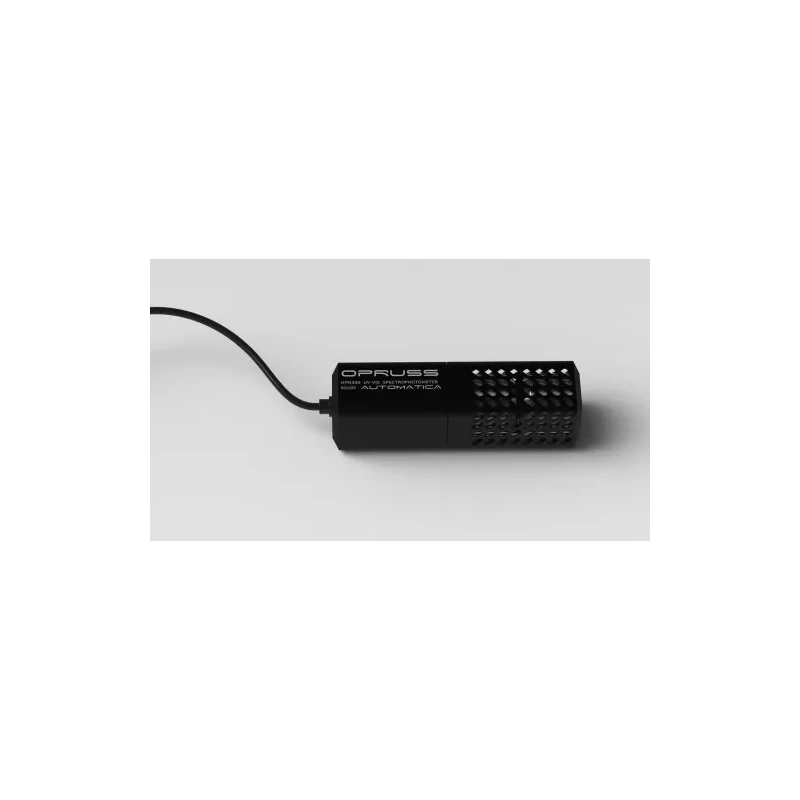

BOD Online Monitoring Machine Continuous Monitoring System is a tool that continuously measures and records actual data and information from an emissions source. The measured data is often used in real-time to operate the source and also demonstrate compliance with applicable regulation.Measurement MethodsUV + VIS Spectrophotometer (Dual Beam Absorption Spectrophotometry) 200-750nm for Ultraviolet spectrum scanning 320-750nm for Visible spectrum scanning*Measurement RangeCOD - 0 - 300 mg/L expandable range ( Up-to 1200 mg/L)Measurement Accuracy 5%Measurement Repeat - ability 5%Measurement IntervalT90 in One Second, Data output within 1 minuteResolution0.01mg/LCalibrationMulti point based automatic calibration. Standard calibration as per factory setting. Local calibration for adaptive environments. For COD compensation with respect to organics and inorganic proportionsWeight1.8 kgOperating & Storage Temperature5 - 45 CPower230 VAC10%, 50 Hz, 60 WOutputRS485Protection ClassIP68Cleaning MethodAdvanced conductive surface cleaningMOCOPM300 Titanium Quartz POM SS316L
