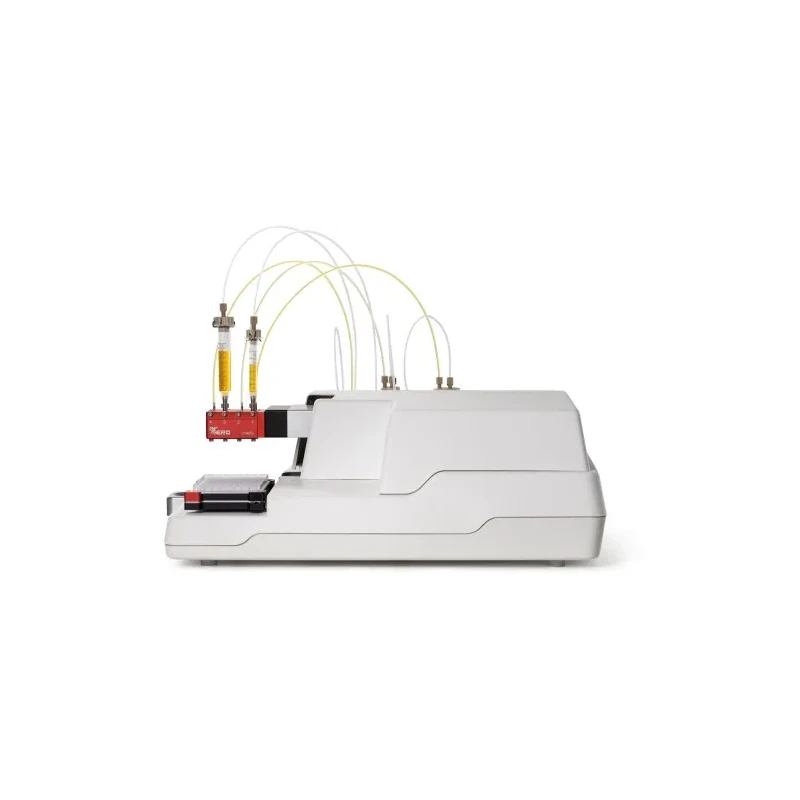

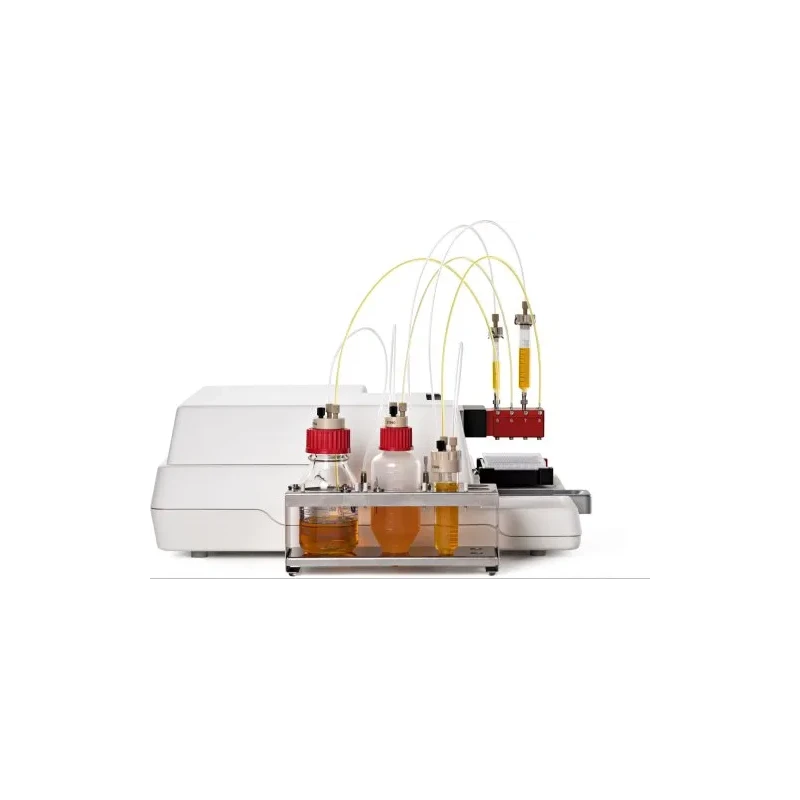

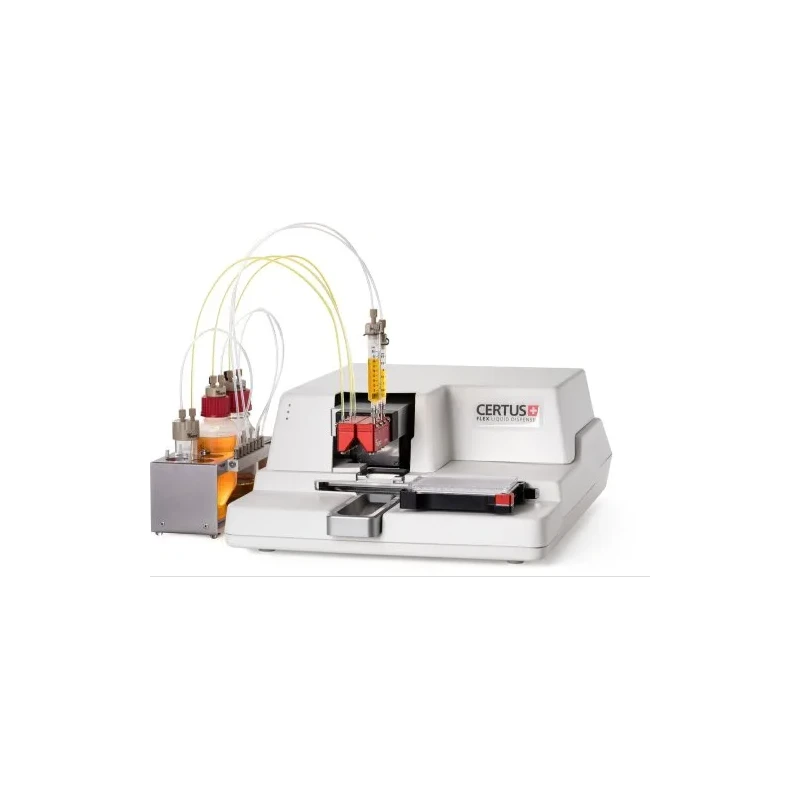

Gyger Certus Flex Liquid Dispense
Specifications
| Brand | Gyger |
|---|---|
| Power | 110 - 240 V 50/60 Hz nominal operating current Less Than 0.5 A / 240 VAC |
| Weight | 15 kg |
| Valve Type | Gyger SMLD 300GC 0.1 mm - 0.45 mm 10 different types of valves depending on the volume range Viscoc |
| Dimensions (W x D x H) | 425 x 555 x 180 mm (H + 20 mm for 70 mm DWP) |
| Pneumatics | 1.7 - 2.0 bar inlet pressure max 5 l/min oil-free dry filtered (5 um) |
| Channels | 1 - 8 channels independently controlled straight or 22 Deg. angled |
| Dead / Transfer Volume | Total 125 ul with skyringe| 65 ul valve net |
| Handling | Certus Control Pc Software |
| Hardware-Interface | Ethernet (1 Gbit/s RJ45) |
| Software-Interface | SiLA |
| Resolution / Increment | Greater Than 0.05 nl |
| Well Plate Height | 3 - 51 mm 18 - 75 mm (DWP) |
| Dispensing Pressure | 0.05 - 1.0 bar |
| Fluid Supply | Syringe 3| 5| 10| 60 ml Bottle 50| 250| 500 ml |
Key Features
- Easy installation
- High Durability
Product Description
Gyger Certus Flex Liquid Dispense, The CERTUS FLEX does this part of the job for you. Thus, you will reach higher throughput, which means higher cost efficiency. We give you a modular design in two basic versions, with 5 or 8 individually controllable channels, which can be equipped with different valves to facilitate the ideal dispensing of substances with different physical properties. The dispensing parameters of each channel are individually controlled by the intuitive and adaptable proprietary CERTUS CONTROL PC software and electronics. We have developed CERTUS FLEX for contactless dispensing of a broad range of liquid substances and large molecules, using our renowned Gyger microvalve technology and air pressure control, giving you maximum precision and flexibility. Thanks to the SiLA compliance of CERTUS CONTROL, you can rely on easy integration into your laboratory automation workflows such as HTS platforms.
- Low Maintenance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Gyger Certus Flex Liquid Dispense can control up to 8 channels independently.
The dispensing pressure for this unit ranges from 0.05 to 1.0 bar.
It can be equipped with Gyger SMLD 300GC valves, which come in 10 different types depending on the volume range.
This model weighs 15 kg.
The dimensions are 425 mm in width, 555 mm in depth, and 180 mm in height, plus an additional 20 mm for the DWP.
The resolution increment for this unit is greater than 0.05 nl.
It operates at a nominal voltage of 110 - 240 V with a frequency of 50/60 Hz and a current of less than 0.5 A at 240 VAC.
The maximum inlet pressure for the pneumatics is between 1.7 and 2.0 bar.
The fluid supply options include syringes of 3, 5, 10, and 60 ml, as well as bottles of 50, 250, and 500 ml.
The total dead volume is 125 µl with a skyringe, and the valve net volume is 65 µl.
It can accommodate well plate heights ranging from 3 to 51 mm, and 18 to 75 mm for the DWP.
