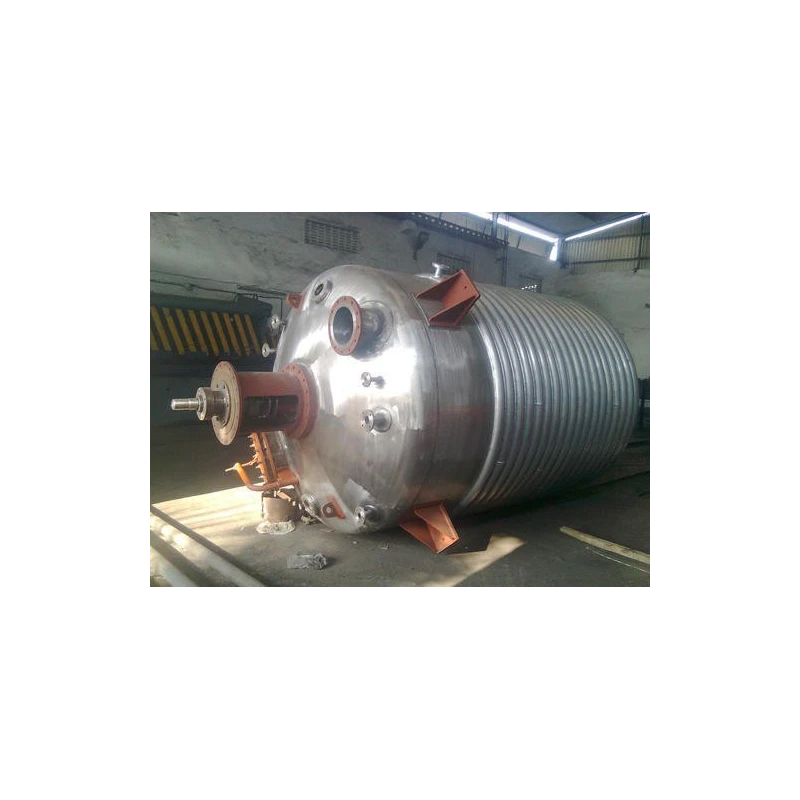

Reaction Vessels

Reaction Vessels are used in carrying out a wide variety of chemical reactions including condensation, polymerization, esterification , hydrogenation etc. at pressures (Up to 30 Kg. / cm) and at temperatures ranging -20C to +250C. Reaction needing simultaneous fractional distillation and azeotropic distillation can also be conducted very efficiently using these chemical reaction vessels.Material of ConstructionsVarious materials of construction, such as MS, SS304, SS 316, SS 316L, SS410, Rubber Lined etc., can be offered as per requirement. Capacities:We offer high quality reaction vessel in different capacities ranging from 50 liters to 35,000 liters.Types Of AgitatorThese vessels can be provided with different types of agitators such as anchor type, propeller type, paddle type, pitched blade turbine type of high-speed homogenizer Sealing Of Shaft : Reactors are provided with Gland box or Mechanical seals for shaft sealing arrangement of the shaft with the vessel.Stuffing Box : Stuffing boxes accomplish sealing by the radial expash alimar on of a soft, deformable material . Mechanical Seal: Mechanical seals are designed to prevent leakage between a rotating shaft and its housing under conditions of extreme pressure, shaft speed and temperature. Mechanical seals can be single acting or double acting. Single (acting) mechanical seals have one sealing gap.  Mechanical seals tend to leak a vapor from the high pressure side to the low pressure side. This fluid lubricates the seal faces and absorbs the heat generated from the associated friction, which crosses the seal faces as a liquid and vaporizes into the atmosphere. So, it's common practice to use a single mechanical seal if the product poses little to no risk to the environment.Double Mechanical SealLimped Coil VesselFoodPharmaceuticalsChemicalsPigmentsOrganic ChemicalsInorganic Chemicals

• Easy to move from one place to another
