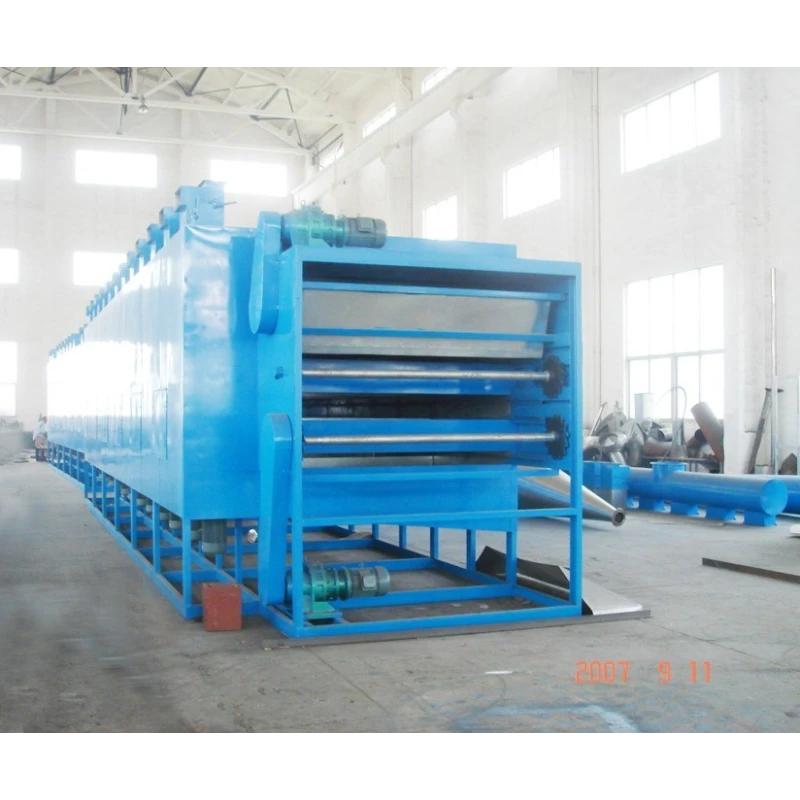

Stainless Steel Automatic Belt Dryer

Belt dryer is a continuous convective belt dryer. A well-ventilated layer of product is put on a wire mesh or perforated plate belt conveyor and conveyed continuously through drying chambers. In these chambers, circulating air fans blow hot air through the product vertically. In this process, the circulating air is reheated after each product flow by the heat exchangers integrated into the dryer. The amount of air required to discharge the exhaust vapor from the belt dryer is sucked in by a radial fan and fed to the appropriate zones of the belt dryer. Due to the arrangement of the air inlet and outlet ducts to and from the appropriate zones, the drying air is passed repeatedly through the product layer until it has the optimum vapor content before leaving the dryer. SHALIMAR Engineerings Belt drying or conveyor drying systems are used in the chemical and pharmaceutical industries, in food and stimulants, and for dyes and pigments. The belt dryer is suitable for drying free-flowing, crumbly, crystalline, and lumpy products, as well as malleable pastes.Advantages Easy maintenance and easy- clean options with simple and efficient access to all internal componentsEasy operation with a fully automatic control systemHigh thermal efficiency due to the integrated air circulation fans, thereby optimizing the exhaust air volume and heat recovery from the dryer exhaustGood adaptation of the temperature profile to the drying behavior of different product qualitiesModelSpray Dryer is design according to requirement and usage of Consumer model:Production Capacity = 50-5000 KG./Hr. water/solvent evaporation (According to Requirement of client)In Put moisture = 10-90%Out Put moisture = 1-5% (Depend up on  property of  material)Power & Burning Fuels will be depend upon production of material

• Gentle drying
• Uniform drying
• Material from remains intact
• Low power demand
• Continuous operation
• Closed operation.
