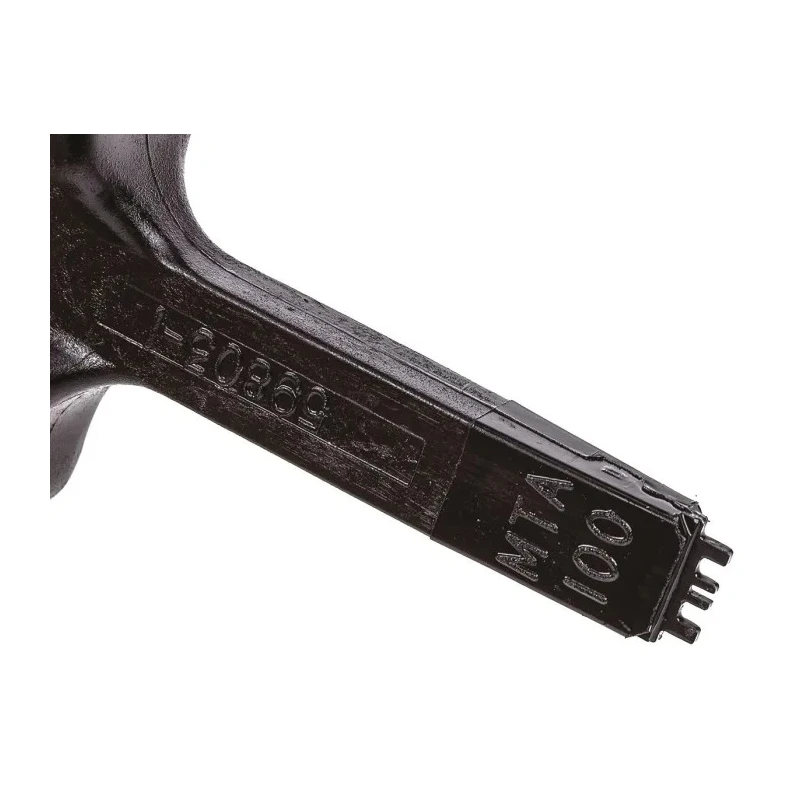

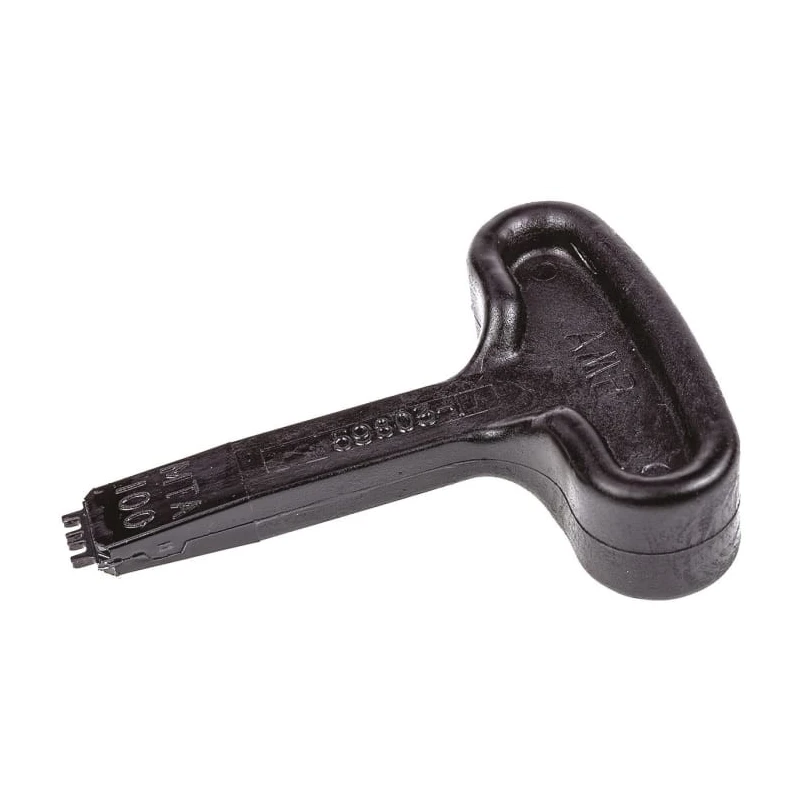

TE Connectivity Insertion Tool for MTA 100 and MTA 156 Connectors, 2.54 mm Pitch, 59803-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | 59803-1 |
| Series | MTA 100 |
| Sub Type | Insertion Tool |
| For Use With | MTA 100 Connector, MTA 156 Connector |
| Contact Spacing | 2.54 mm |
| Pancon, contact spacing 2.54mmBrand | ITW Pancon |
Key Features
- Compatible with MTA 100 and MTA 156 connectors featuring 2.54 mm contact spacing.
- Key style terminating tool ideal for prototyping and maintenance tasks.
- Enables precise pressing of discrete wires on individual sockets.
- Based on IDC technology for efficient mass termination assembly.
- Eliminates the need for wire stripping, saving time and reducing costs.
- Utilizes one-step assembly process for 28 AWG to 22 AWG discrete wires or notched ribbon cable.
- Suitable for wire-to-board and wire-to-wire interconnections.
- Housings are colour coded according to wire size for easy identification.
Product Description
TE Connectivity 59803-1 Insertion Tool is a specialized maintenance tool designed for effective termination of 0.1 inch pitch MTA socket connectors in the MTA 100 Series. The tool is engineered to press discrete wires onto individual socket terminations, providing reliable connections ideal for prototyping and repair work.
This insertion tool supports assembly without the need for wire stripping, significantly reducing installation time and costs in wire-to-board and wire-to-wire applications. The MTA-100 connectors include female IDC connectors and PCB headers with housings that are colour coded by wire size to enhance usage accuracy and identification.
Compatible with MTA 100 and MTA 156 connectors with 2.54 mm contact spacing. Offers efficient, one-step assembly using IDC technology. Ideal for industrial, automotive, and electronic wire termination applications. Supports discrete wire termination from 28 AWG to 22 AWG and notched ribbon cables.
Tool designed specifically for prototyping and maintenance operations.
This insertion tool is essential for industries requiring precision wiring and reliable mass termination assemblies, including manufacturing, repair workshops, and electrical laboratories.
Explore more products in the Insertion & Extraction Tools category on EnvMart to find compatible tools and components.
Explore more products in our Insertion & Extraction Tools category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insertion tool is compatible with MTA 100 and MTA 156 connectors, which feature a contact spacing of 2.54 mm.
It supports discrete wire termination for wire sizes ranging from 28 AWG to 22 AWG, as well as notched ribbon cables.
The tool utilizes IDC (Insulation Displacement Connector) technology, enabling efficient mass termination assembly without the need for wire stripping.
The insertion tool is manufactured in India.
It is designed primarily for prototyping and maintenance tasks in industrial, automotive, and electronic wire termination applications.
It eliminates the need for wire stripping, which significantly reduces installation time and costs during wire-to-board and wire-to-wire applications.
The model number of this insertion tool is 59803-1.
It supports a one-step assembly process, allowing for quick and efficient connections with minimal effort.
Yes, the connector housings are color-coded according to wire size for easy identification during use.
This insertion tool belongs to the MTA 100 series.
It is suitable for both wire-to-board and wire-to-wire interconnections, making it versatile for various applications.
The sub-type of this tool is classified as an Insertion Tool.
