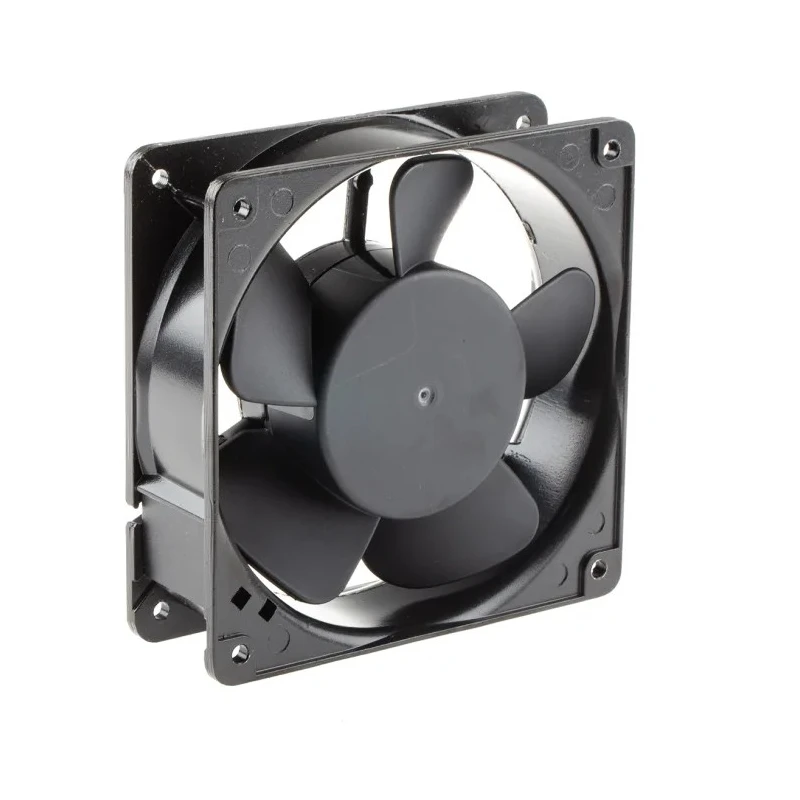

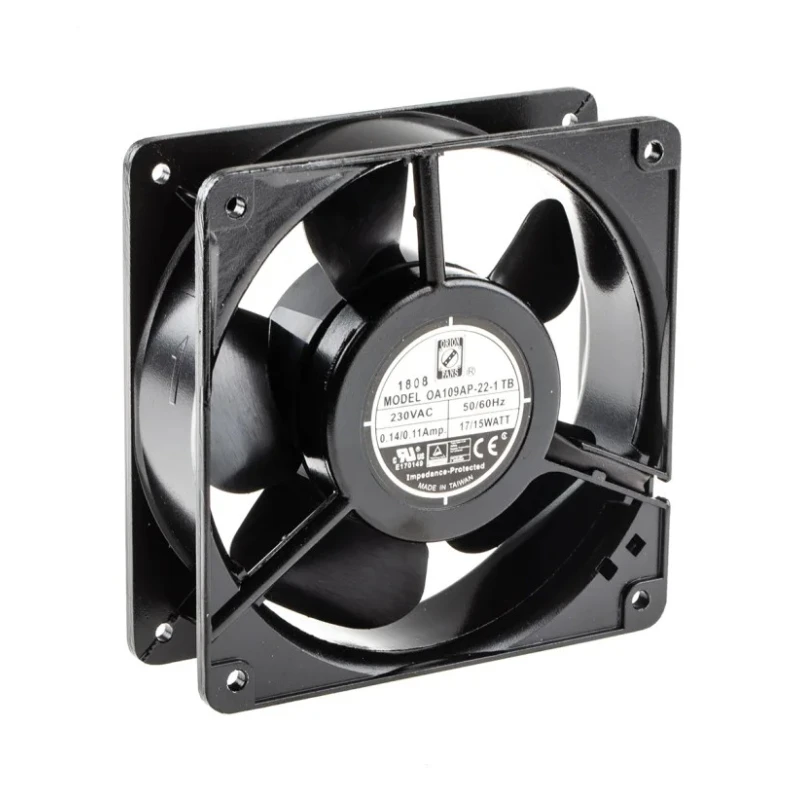

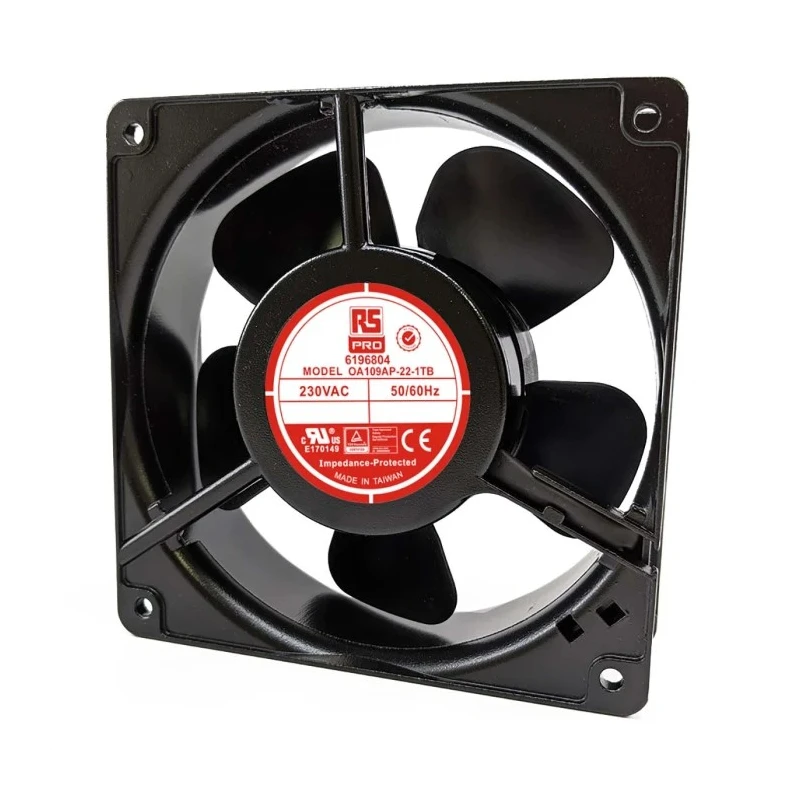

RS PRO AC Dual Ball Bearing Axial Fan, 230V AC, 186.9 m³/h Airflow, 15 W Power, 90 mA Max Current, Rated, 120 mm Square IP44

RS PRO model IP44 AC axial fan is designed for industrial and commercial cooling needs, operating on a 230V AC power supply with a power consumption of 15 W. It delivers an airflow of 186.9 m³/h while maintaining a low noise output of 42 dB, making it suitable for noise-sensitive environments.

The fan features a robust die-cast aluminium frame that ensures durability in harsh environments. It is equipped with a PBT UL94V-0 thermoplastic impeller that provides high resistance to heat and mechanical stress.

At its core, the fan is equipped with a dual ball double sealed bearing system, known for extended reliability and life span estimating up to 60000 hours based on L10 curve data. The impedance protected shaded pole motor safeguards against overheating and electrical surges, promoting stable and safe operation.

With dimensions of 120 mm height, 120 mm width, and 38 mm external depth, the square frame design fits a variety of industrial equipment enclosures and cabinets. Its forward curve and FASTON type terminal supports efficient airflow and straightforward electrical connection.

This axial fan complies with CE, TUV, and UL standards, ensuring it meets global safety and performance requirements. It is primarily used for cooling electronic cabinets, server racks, production line motors, and other industrial equipment.

Robust die-cast aluminium frame suitable for industrial environments. PBT UL94V-0 thermoplastic impeller for enhanced durability. Dual ball sealed bearing system with high life expectancy. Impedance protected shaded pole motor prevents overheating.

Compact 120x120x38 mm square frame fits standard mountings. Quiet operation at 42 dB noise level during 3000 rpm fan speed. Forward curve blade design for efficient airflow. FASTON terminal type allows easy and secure electrical connections.

Certified to CE, TUV, UL standards for quality assurance.

This RS PRO AC Axial Fan is ideal for industrial, laboratory, HVAC, manufacturing, and commercial applications where durable, efficient cooling solutions are critical. Browse RS PRO fans and HVAC equipment categories at EnvMart for more industrial cooling products.
