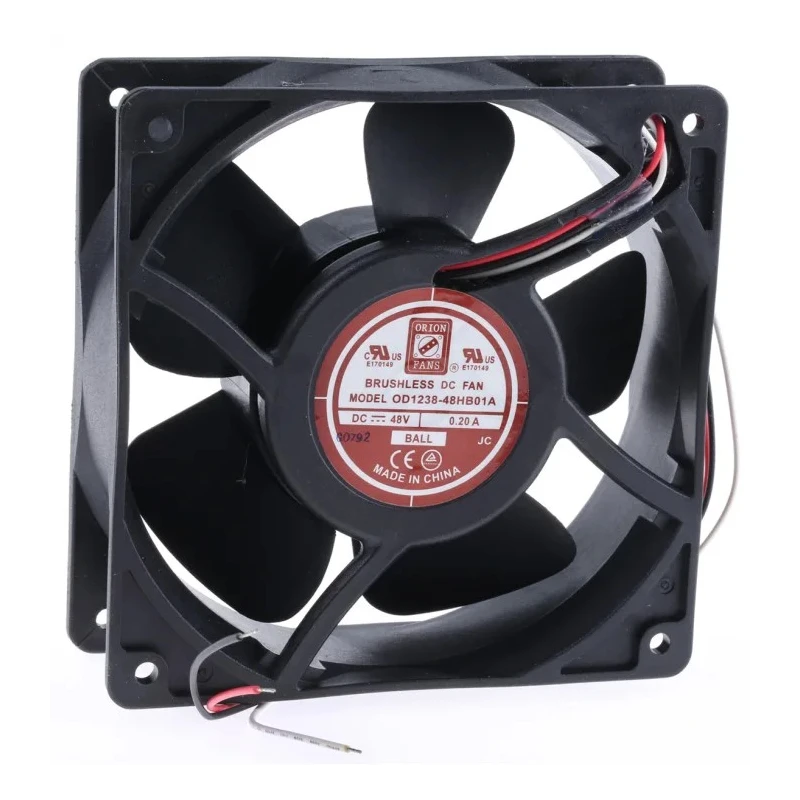

RS PRO Axial Fan 48V DC 9.6W 200mA 178.4m³/h 120x120x38mm Ball Bearing Backward Curve 2800rpm 619-6602

RS PRO 619-6602 Axial Fan is a high-performance industrial cooling fan operating at 48V DC with a power consumption of 9.6W and maximum current of 200 mA. The fan measures 120 mm by 120 mm with a depth of 38 mm, making it suitable for compact applications requiring effective airflow to prevent overheating of electrical enclosures, computer towers, or server racks.

This axial fan features a backward curved blade design to optimize airflow of 178.4 m³/h while maintaining a noise level of only 43 dB. It runs at a speed of 2800 rpm utilizing a ball bearing system for enhanced durability and a longer service life rated at approximately 60,000 hours.

The motor is brushless with polarity protection and an auto-restart function. A locked rotor is incorporated to safeguard the impellers from excessive movement. The built-in tachometer provides reliable speed sensing and control.

The fan supports operation in industrial, commercial, electronic and HVAC environments within an operating temperature range from -10°C up to +70°C. Its wire terminal type allows easy installation in various equipment housings.

The product has undergone stringent testing under the RS PRO range and holds certifications including UL, TUV, RoHS, and CE for assured quality and safety compliance. The frame is square-shaped and designed for secure mounting in a variety of setups.

Operates on 48 V DC supply voltage with low power consumption. Delivers airflow of 178.4 cubic meters per hour for efficient cooling. Utilizes ball bearing system ensuring durability and longer service life. Features a backward curved fan design enhancing airflow efficiency.

Operates at 2800 rpm producing a noise level of 43 dB. Compact frame dimensions of 120mm x 120mm x 38mm for flexible mounting. Includes wire terminal type and a brushless motor with polarity protection. Designed for industrial, electrical and HVAC applications with temperature range of -10°C to +70°C.

Equipped with a built-in tachometer for speed control and monitoring. Complies with UL, TUV, RoHS, and CE standards ensuring safety and quality.

This axial fan is ideal for applications in industrial machines, HVAC systems, commercial equipment, and electrical enclosures where efficient heat dissipation and reliable operation are critical.
