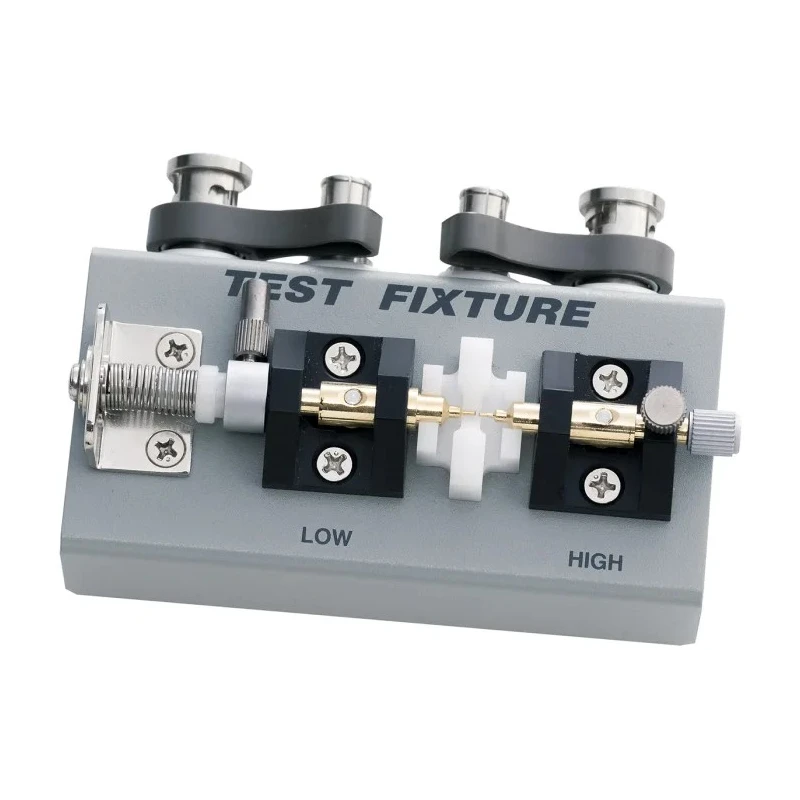

RS PRO LCR Meter Chip Test Fixture 123-5980 for SMD Components DC to 10 MHz Taiwan

RS PRO 123-5980 LCR Meter Chip Test Fixture is a precision accessory designed for the RS PRO LCR-6000 Series high accuracy LCR meters. This chip test fixture allows for accurate 4-wire testing of surface mount devices (SMD) and chip components.

With a broad frequency range from DC to 10 MHz, it supports diverse electronic component testing requirements. The maximum test voltage capacity is ±45 V, accommodating varied testing conditions.

The fixture is compatible with chip sizes from 0201 up to 1812, providing extensive usability for standard SMD components.

Manufactured in Taiwan, Province Of China, this fixture adheres to quality manufacturing standards, making it suitable for industrial, laboratory, and electronics manufacturing environments.

Operates from DC to 10 MHz frequency range. Max voltage support of ±45 V for component testing. Supports chip sizes 0201 to 1812 for versatile use. Enables precise 4-wire SMD/chip measurements. Designed for RS PRO LCR-6000 Series meters.

Highly reliable and repeatable test fixture accessory. Manufactured to high-quality standards in Taiwan. Ideal for industrial and laboratory electronic measurements.

This test fixture is a vital accessory for professionals requiring high accuracy in component testing. It enables seamless integration with RS PRO LCR meters, ensuring consistent and reliable measurements critical in electronics testing, manufacturing, and quality control.
