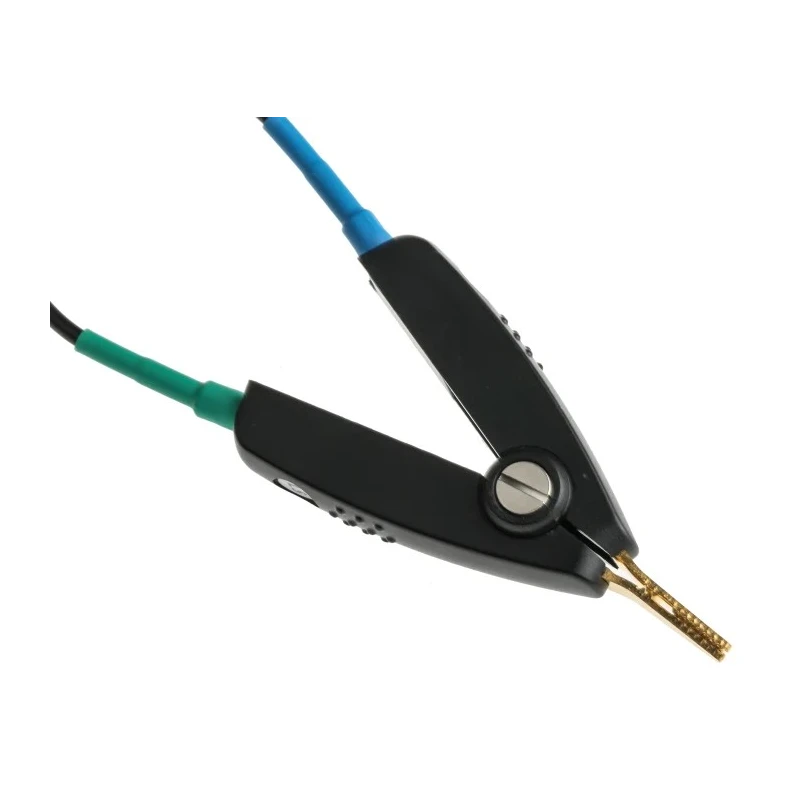

RS PRO LCR Meter Chip Test Fixture 123-5979, Electrostatic Discharge Certified, ±45 V Max Voltage, Up to 1 MHz Frequency

Free Delivery in India | Lowest Global Shipping Charges

RS PRO LCR Meter Chip Test Fixture 123-5979, Electrostatic Discharge Certified, ±45 V Max Voltage, Up to 1 MHz Frequency

Name: RS PRO LCR Meter Chip Test Fixture 123-5979, Electrostatic Discharge Certified, ±45 V Max Voltage, Up to 1 MHz Frequency
Brand: RS PRO
SKU: 192879
Price: 150.87 USD
Availability: InStock



Category LCR Meter Accessories Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	123-5979
Standards/Approvals	ESD, ANSI/ESD S20.20:2014, BS EN 6134051:2007
Standards/Approvals ESD, ANSI/ESD S20.20	2014, BS EN 6134051:2007

Key Features

Compatible with RS PRO high precision LCR meters for electronic component testing.
Supports four-wire sensing technique to minimize measurement errors.
Maximum voltage rating of ±45 volts ensures safe testing conditions.
Operates at frequencies up to 1 MHz DC for reliable component characterization.
Long cables facilitate testing of large or hard-to-reach components and fixtures.
Manufactured in China under strict quality standards.

Product Description

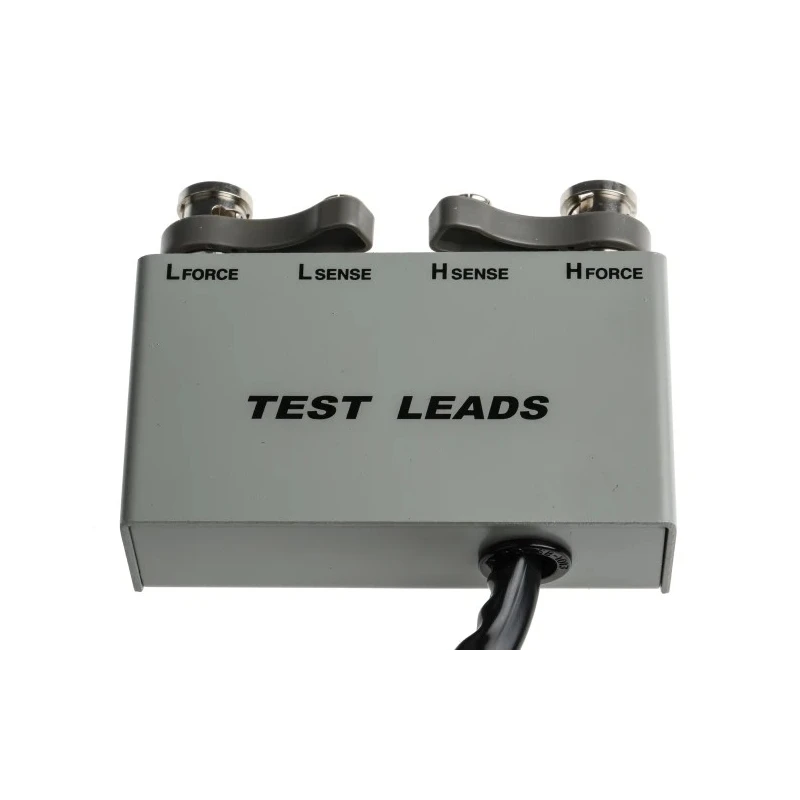

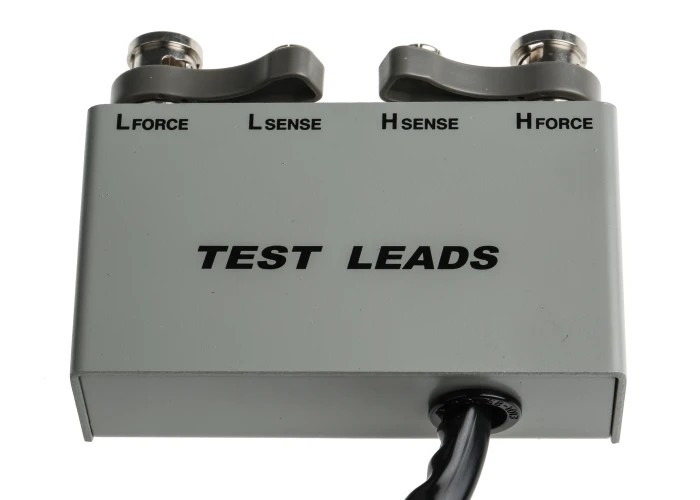

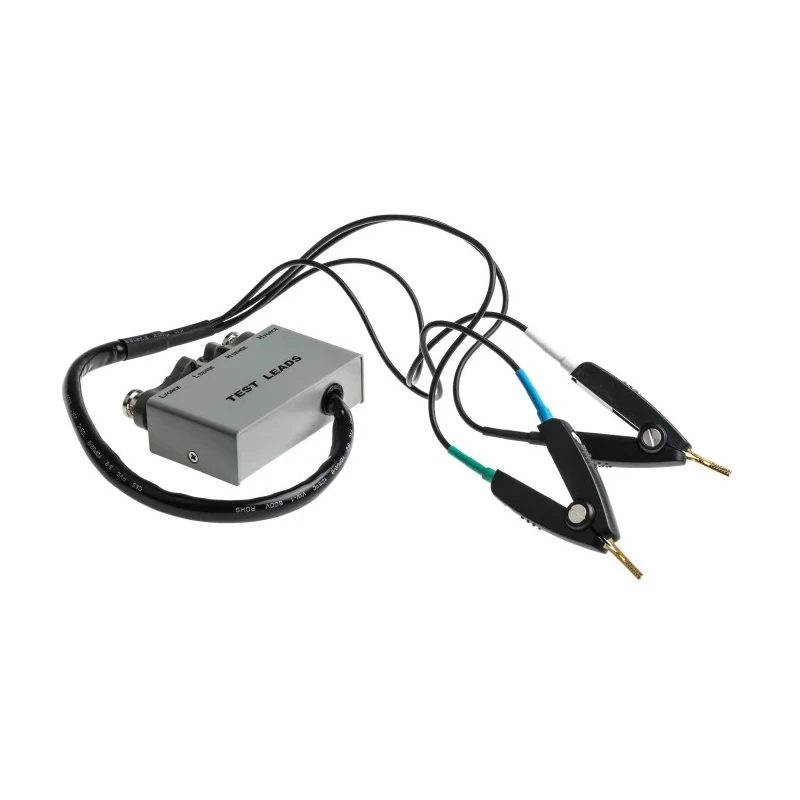

RS PRO 123-5979 LCR Meter Chip Test Fixture is a precision accessory designed for electronic component testing using LCR meters. It enables four-terminal or four-wire sensing which separates current carrying and voltage sensing electrodes. This advanced technique provides more accurate measurements of inductance (L), capacitance (C), and resistance (R) compared to traditional two-terminal methods. The fixture supports a maximum voltage of ±45 V and frequencies up to 1 MHz DC, making it suitable for high-precision applications.

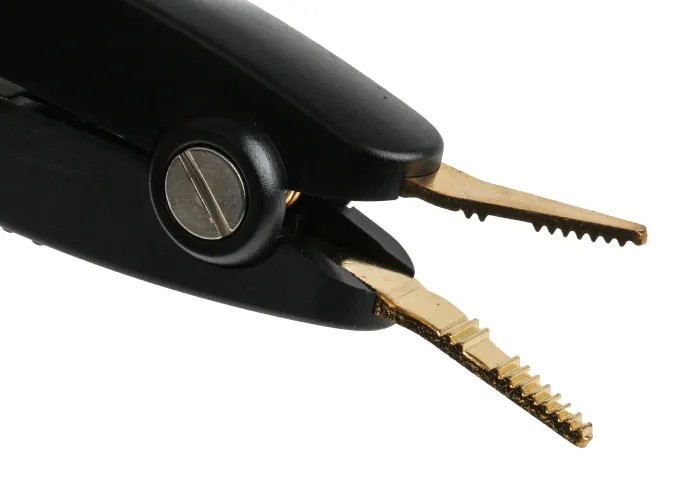

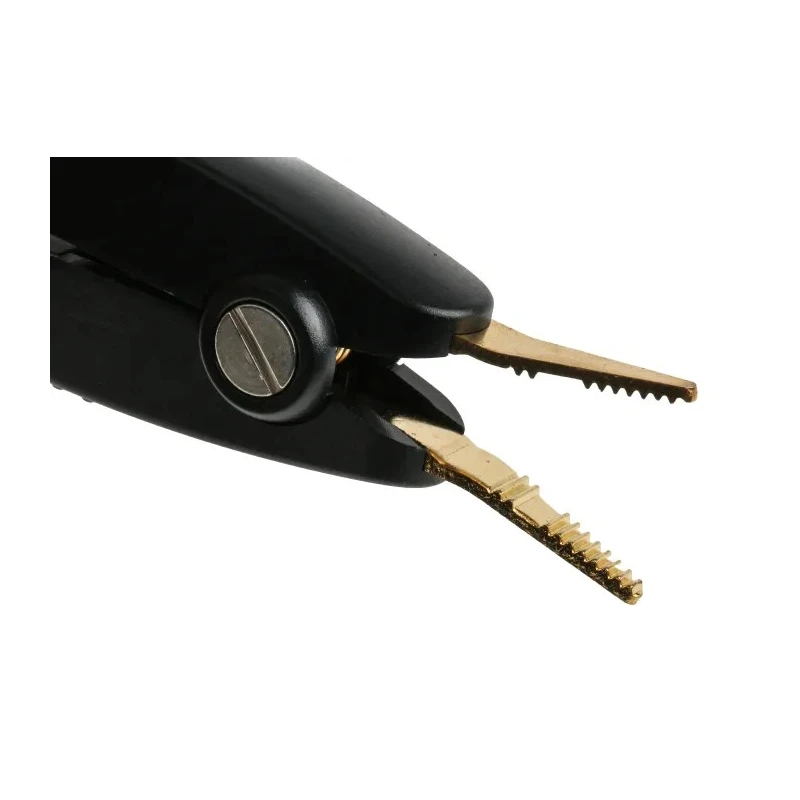

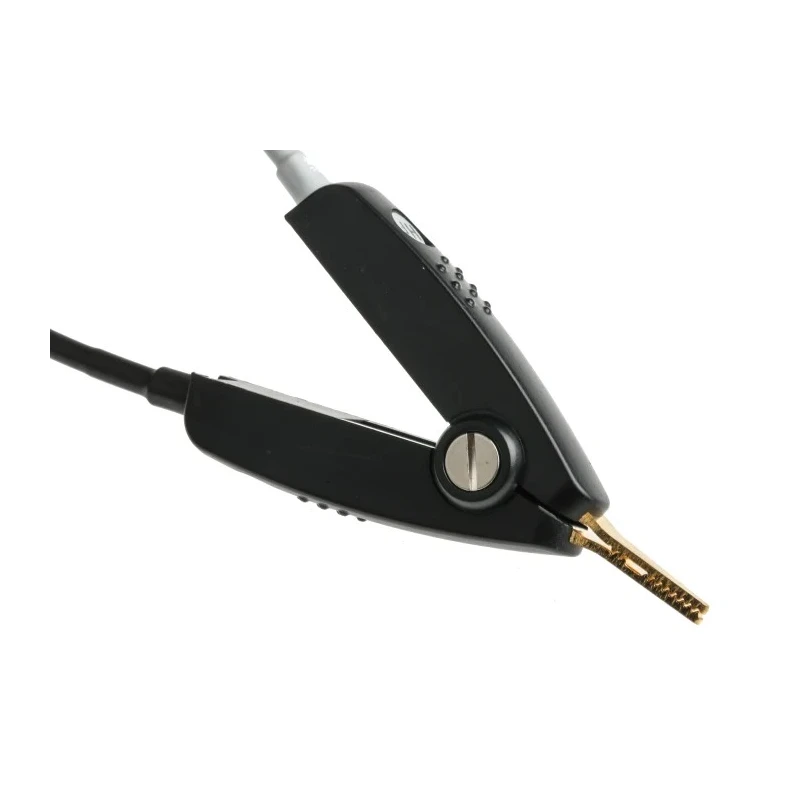

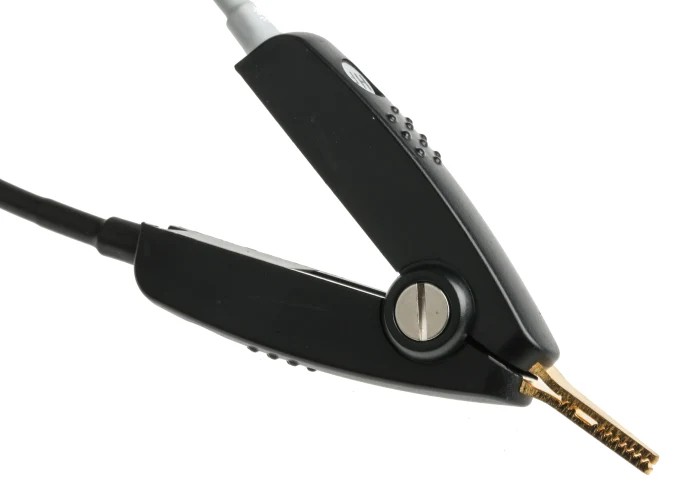

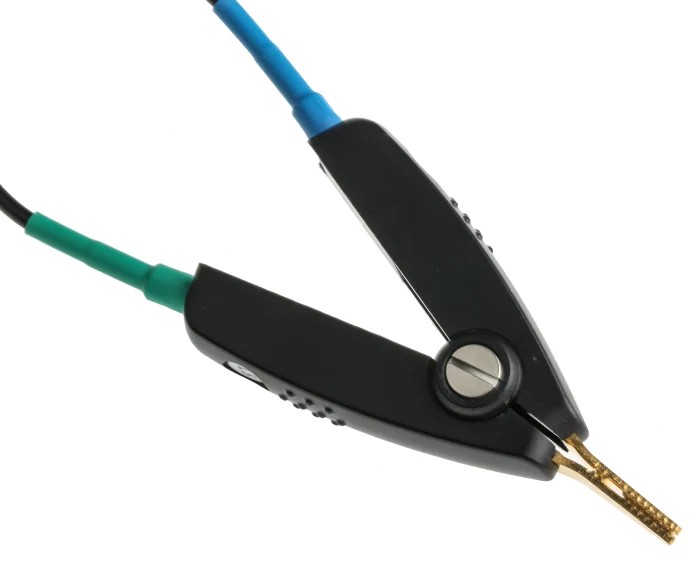

The clips and cables are longer than typical models to allow testing of larger or unusually shaped components in difficult-to-access fixtures. The assembly complies with American ANSI/ESD S20.20:2014 and British BS EN 61340-5-1:2007 electrostatic discharge (ESD) certifications, reducing the risk of electrostatic damage during handling and measurement.

This product is manufactured in China and adheres to rigorous quality and safety standards. It is ideal for industrial, laboratory, electronic manufacturing, quality control, and R&D applications requiring precise electronic component testing.

Compatible with RS PRO high precision LCR meters for accurate component measurement. Enables four-wire sensing for enhanced accuracy in inductance, capacitance, and resistance measurement. Maximum voltage tolerance of ±45 volts supports a wide range of testing conditions.

Capable of frequency operation up to 1 MHz DC for detailed analysis. Compliant with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for electrostatic discharge protection. Long wiring enhances usability on larger or atypical component fixtures.

Manufactured in China under strict quality assurance protocols.

This LCR meter chip test fixture is an essential accessory for industrial and laboratory electronic testing environments, ensuring reliable and precise readings. Explore the RS PRO range for more electronic testing solutions at EnvMart.
