Industrial Drying Oven

Name: Industrial Drying Oven
Brand: ESPL
SKU: ABBVU
Price: 11.59 USD
Availability: InStock



SKU ABBVU Category Laboratory Oven Brand ESPL Condition New

Specifications

Country of Origin	India
Resolution	0.1 DegreeC
Display Type	Digital
Frequency	50 Hz
Power Source	Electronic
Brand	Zexter
Material	Mild Steel
Voltage (V)	230 V
Readability	0.1 degreeC
Spatial Deviation In Temperature	+-5 DegreeC
Nominal Power	2000 W

Key Features

Exterior of the oven is powder coated.
High Grade Mineral wool insulation is stuffed in between the formed cavity to eliminate heat losses when the oven is operated at desired temperature.
Heating is through special grade tubular air heaters placed in the circulating air path.
Heavy Forced Air Circulation by Strong and Reliable axial flow fans for cross flow circulation.
Adjustable Damper to exhaust moist air or fumes/vapours which in turn enhances thermal efficiency.

Product Description

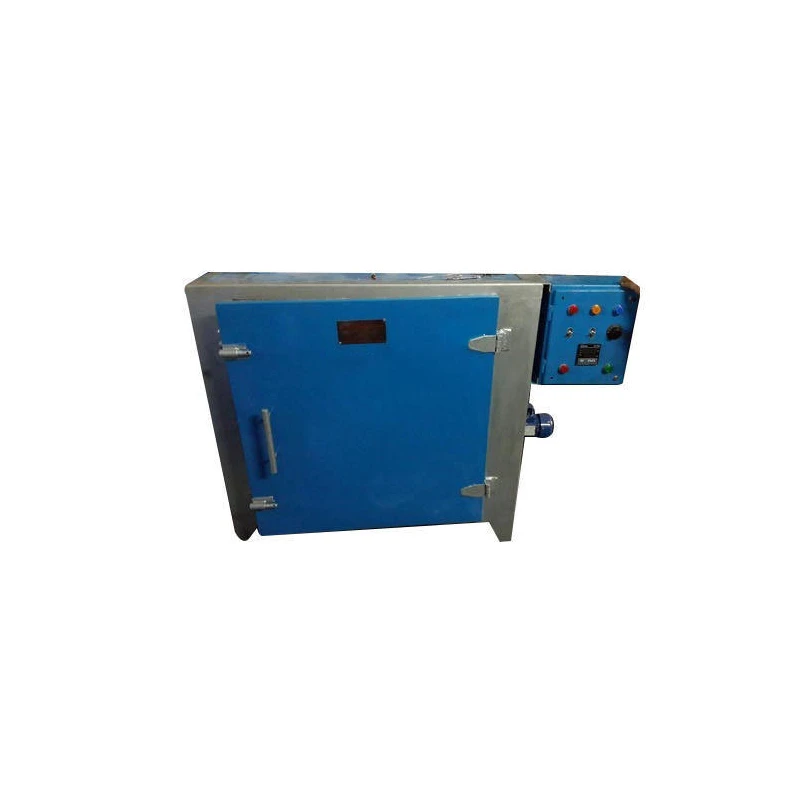

Industrial Drying Oven Double walled, mounted on sturdy angle iron frame. Outer made up of Mild Steel powder coated painted/SS-304 and Inner made up of Complete Stainless Steel-304. Insulation between the inner and outer walls is done with 75mm thick glass wool to prevent any heat loss. Provided with double walled door with a system to prevent its opening. The door is provided with the best quality handle, gasket, etc. Provided with brackets to support the heavily laden trays at different heights. Temp. The range is from ambient to 250C with an accuracy of 3C or as desired by you and is controlled by a Microprocessor PID controller with a PT-100 sensor. Heating is done with ISI mark heating elements made from Ni-chrome heating wire placed in the sides of the chamber. Motor blower system in the side of the chamber to maintain the uniformity of the temp. Throughout the chamber. Works on 220V/440V and 50HZ single phase A.C. provided with exhaust shaft on the top of the body.

Digital PID Control System enables superior temperature accuracy.
Digital Timer function with Buzzer Alarm.
Over Temperature & Over Current Protection.
Voltage and Ampere meter equipped for monitoring safe operating of the machine.
Brackets to support the heavily laden drying trays at adjustable height are provided on the sides of inner walls.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The temperature range of this model is from ambient to 250°C, with an accuracy of ±3°C or as desired by the user.

The oven features 75mm thick glass wool insulation between the inner and outer walls to prevent heat loss.

Temperature is controlled by a microprocessor PID controller with a PT-100 sensor, ensuring superior accuracy.

This unit operates on a power source of 230 V and requires a frequency of 50 Hz.

The outer structure is made of mild steel with powder coating or stainless steel 304, while the inner chamber is made entirely of stainless steel 304.

The nominal power rating of this model is 2000 W.

It utilizes a motor blower system located in the side of the chamber to maintain uniform temperature distribution.

Yes, it includes over temperature and over current protection, as well as a voltage and ampere meter for monitoring safe operation.

It is equipped with a digital display type for easy monitoring of temperature settings.

Yes, the oven is provided with brackets to support heavily laden trays at adjustable heights on the sides of the inner walls.

The resolution of temperature measurement in this unit is 0.1°C.

The country of origin for this model is India.
