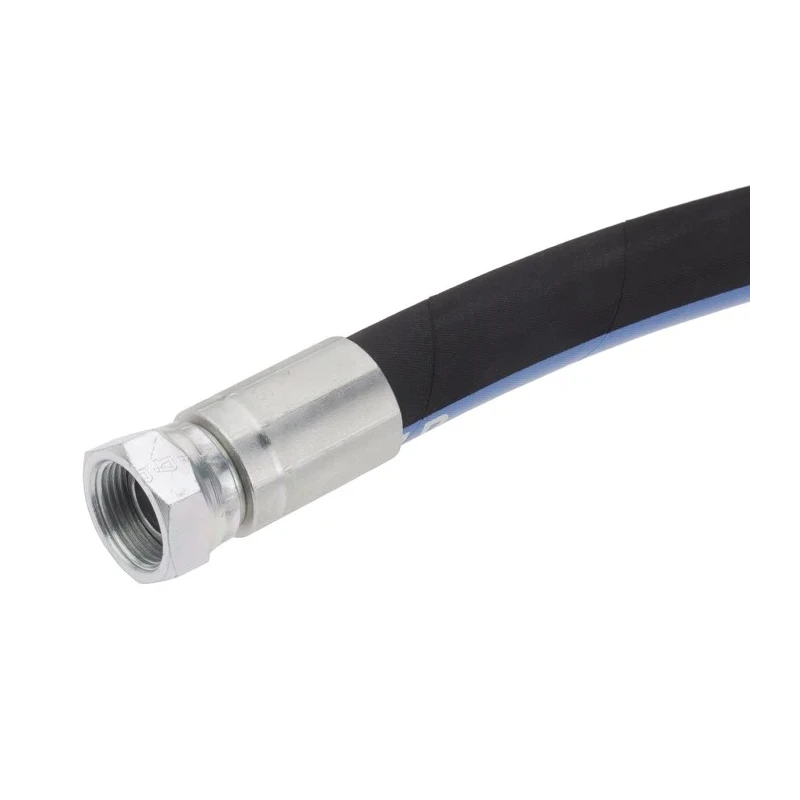

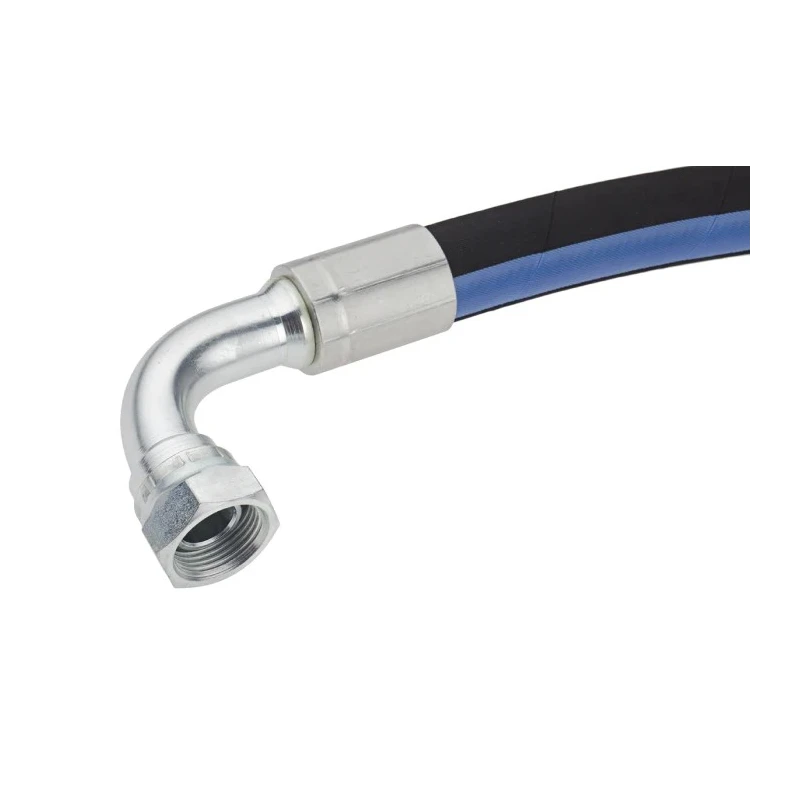

RS PRO 1.95m Synthetic Rubber Hydraulic Hose Assembly, 215 bar Max Pressure 110-2240
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Maximum Operating Pressure | 215 bar |
| Model | 110-2240 |
| Cover Material | Synthetic Rubber |
| Overall Length | 1.95m |
| Maximum Operating Temperature | 100°C |
| Inside Diameter | 19.05mm |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Connection Size A | 3/4 in |
| Connection Standard A | G |
| Connection Gender A | Female |
| Connection Type A | Threaded |
| Inner Hose Material | Synthetic Rubber |
| Reinforcing Material | Steel |
Key Features
- Constructed with synthetic rubber inner tube and outer cover for durability.
- Steel reinforcement wire ensures high tensile strength and pressure resistance.
- Threaded female connections sized 3/4 inch at both ends.
- Operating temperature range from -40°C to 100°C suitable for varied environments.
- Complies with RoHS standards ensuring material safety and environmental compliance.
- Ideal for medium pressure hydraulic fluid applications including petroleum-based fluids, mineral oils, and emulsions.
- Zinc plated mild steel fittings provide corrosion resistance and secure connections.
- Designed with one-piece crimped end fittings to eliminate incorrect insert and sleeve matches.
Product Description
RS PRO 110-2240 Hydraulic Hose Assembly is a high-quality, flexible Hydraulic Hose Assembly with a 1.95 meter overall length. Manufactured in Italy, it is engineered for medium pressure applications with a maximum operating pressure rating of 215 bar. The hose is constructed of synthetic rubber inner tubing and outer covering, reinforced by high tensile steel wire providing strong mechanical performance and resistance to pressure fluctuations.
This hose assembly features threaded female connections on both ends measuring 3/4 inch and conforming to G standards, ensuring reliable and leak-proof coupling. The fittings are zinc plated mild steel for enhanced corrosion resistance, making the assembly suitable for demanding industrial environments.
The product supports a wide operating temperature range from -40°C to 100°C, enabling use in harsh temperature conditions without degradation of material properties. It complies with RoHS standards, assuring that it meets environmental and safety regulations.
Typical uses include medium pressure hydraulic fluid transmission such as petroleum base hydraulic fluids, mineral oils, lubricating oils, water glycol solutions, water-oil emulsion fluids, hot oil, grease, crude and fuel oils, air and water. However, these assemblies are not designed for use with high pressure hydraulic cylinders or pumps exceeding 700 bar.
The hose assembly is designed with one-piece crimped end fittings to prevent incorrect matching of inserts and sleeves, thereby improving assembly reliability and longevity. This configuration suits industrial, manufacturing, hydraulic equipment maintenance, and fluid power applications.
Constructed with synthetic rubber inner tube and outer cover for durability. Steel reinforcement wire ensures high tensile strength and pressure resistance. Threaded female connections sized 3/4 inch at both ends. Operating temperature range from -40°C to 100°C suitable for varied environments.
Complies with RoHS standards ensuring material safety and environmental compliance. Ideal for medium pressure hydraulic fluid applications including petroleum-based fluids, mineral oils, and emulsions. Zinc plated mild steel fittings provide corrosion resistance and secure connections.
Designed with one-piece crimped end fittings to eliminate incorrect insert and sleeve matches. Applications cover hydraulic systems using hot oil, grease, crude and fuel oils, air and water. Explore the Hydrolic Hose Assembly category on EnvMart for more high-quality industrial hydraulic hose solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this hydraulic hose assembly is 215 bar.
This hydraulic hose assembly has an overall length of 1.95 meters.
The hose is constructed with a synthetic rubber inner tube and outer cover, reinforced with steel for added strength.
The operating temperature range for this model is from -40°C to 100°C.
It features threaded female connections sized 3/4 inch at both ends, conforming to G standards.
Yes, it complies with RoHS standards, ensuring material safety and environmental compliance.
It is suitable for medium pressure hydraulic fluid applications, including petroleum-based fluids, mineral oils, and emulsions.
This model is manufactured in Italy.
The inside diameter of this hydraulic hose is 19.05 mm.
It is designed with one-piece crimped end fittings to prevent incorrect matching of inserts and sleeves.
The reinforcing material used in this hose assembly is steel, providing high tensile strength.
It is suitable for applications in hydraulic systems using hot oil, grease, crude and fuel oils, air, and water.
