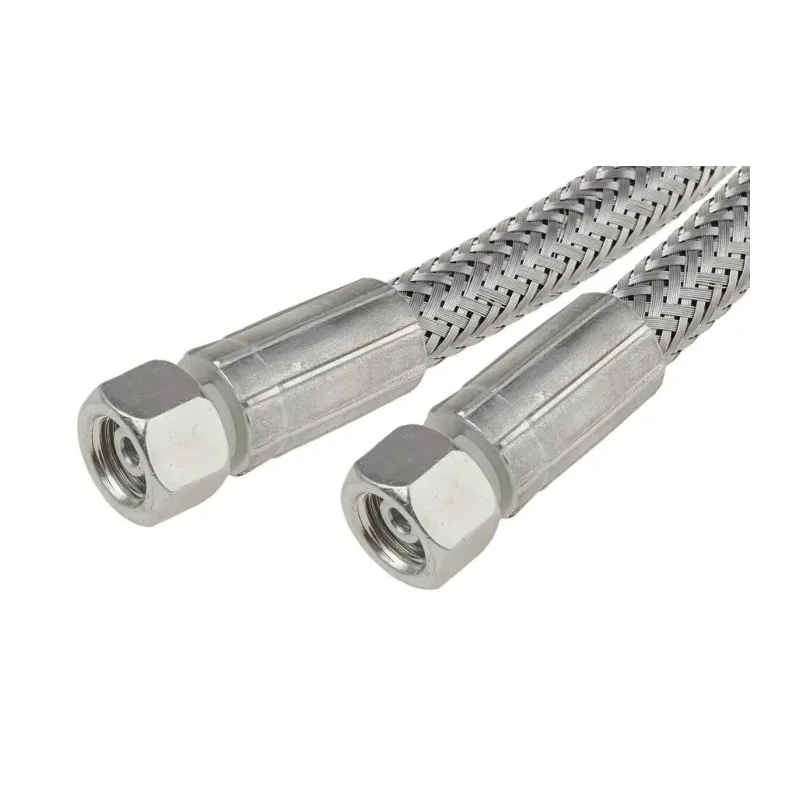

RS PRO 1m Galvanised Steel Wire Hydraulic Hose Assembly, 190 bar Max Pressure 110-2245

RS PRO 110-2245 Hydraulic Hose Assembly, 1 meter in length, is designed for demanding hydraulic fluid transfer tasks with a maximum operating pressure of 190 bar. The hose features a synthetic rubber inner tube that is resistant to damage from water and oil-based fluids, including emulsions, ensuring long service life in varied industrial settings.

The hose is reinforced with galvanised steel wire which protects against mechanical damage such as piercing and slashing, and helps prevent kinks that could disrupt fluid flow. This makes it ideal for hydraulic systems in industrial machinery, manufacturing plants, and fluid power applications.

Both ends of the assembly have straight G 1/4 inch female threaded connectors, allowing quick and secure installations without the need for additional adapters. The precision threading and built-in captive nuts ensure reliable seals and prevent misplacement of parts during connection.

The operating temperature range of -40°C to +121°C allows this hose assembly to function effectively in harsh ambient conditions, including refrigerated or heated environments encountered in industrial settings.

This RS PRO hydraulic hose assembly meets RoHS compliance standards, reflecting adherence to environmental and safety regulations. Manufactured in Italy, it combines quality engineering and materials for dependable performance.

This hydraulic hose assembly is 1 meter in overall length with female threaded connections. The hose has an inside diameter of 6.35 mm, suitable for fluid transfer applications. Inner hose material is synthetic rubber ensuring compatibility with water and oil-based fluids.

The galvanised steel wire reinforcement provides resistance to piercing, slashing, and reduces hose kinking. Operating temperature ranges from -40°C to +121°C, allowing use in diverse environments. Both ends feature straight G 1/4 inch female threaded connectors for easy and secure fittings.

The robust steel reinforcing layer enhances durability under high hydraulic pressures. This hose assembly complies with RoHS standards and is manufactured in Italy.

This Hydraulic Hose Assembly is suited for industrial, manufacturing, fluid power, hydraulic system repair and maintenance applications. EnvMart offers a comprehensive range of hydraulic hose assemblies and fittings for diverse industrial requirements.
