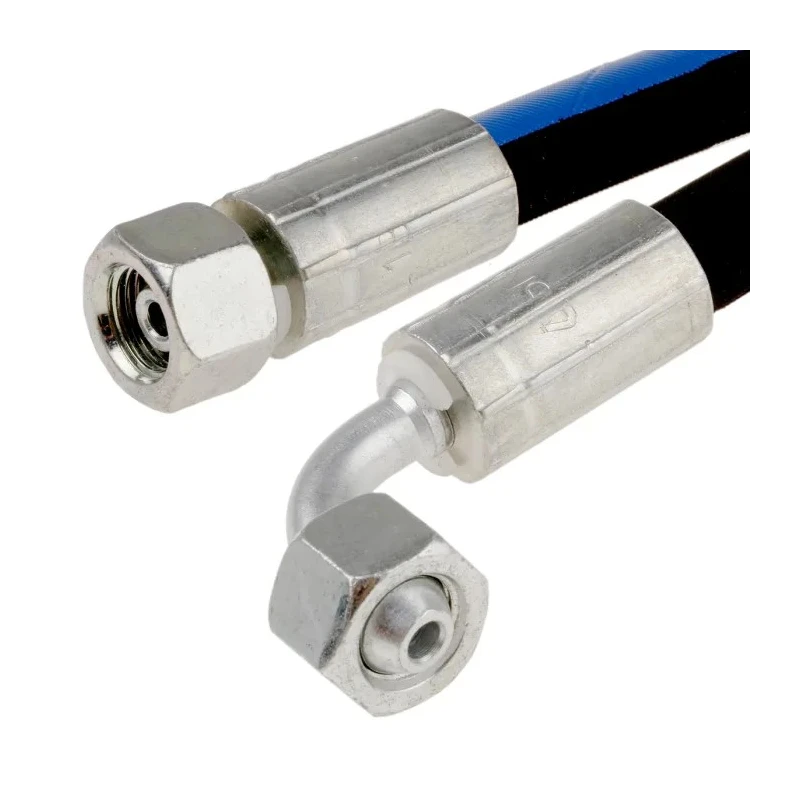

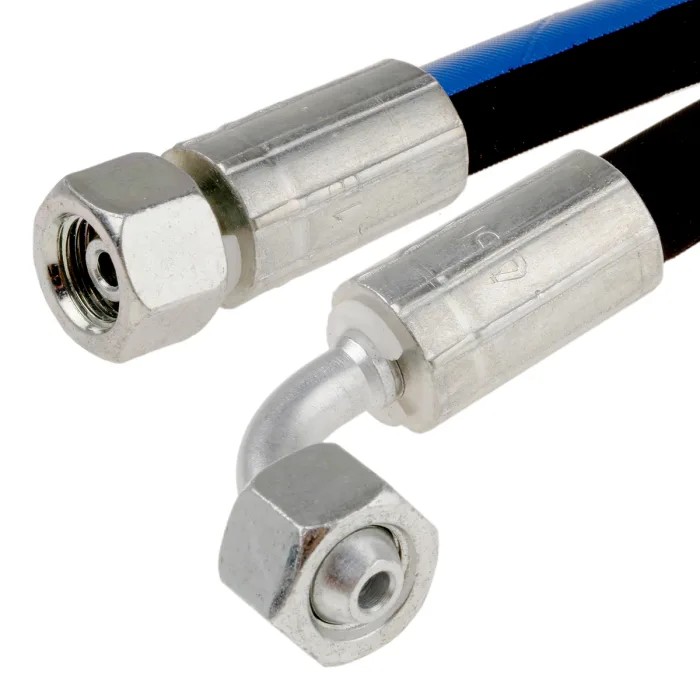

RS PRO Synthetic Rubber Hydraulic Hose Assembly 554mm Length, 215 bar Max Pressure 110-2236

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Synthetic Rubber Hydraulic Hose Assembly 554mm Length, 215 bar Max Pressure 110-2236

Name: RS PRO Synthetic Rubber Hydraulic Hose Assembly 554mm Length, 215 bar Max Pressure 110-2236
Brand: RS PRO
SKU: 184110
Price: 69.15 USD
Availability: InStock



Category Hydraulic Hose Assembly Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Brand	RS PRO
Maximum Operating Pressure	215 bar
Model	110-2236
Cover Material	Synthetic Rubber
Overall Length	554mm
Maximum Operating Temperature	100°C
Inside Diameter	19.05mm
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Connection Size A	3/4 in
Connection Standard A	G
Connection Gender A	Female
Connection Type A	Threaded
Inner Hose Material	Synthetic Rubber
Reinforcing Material	Steel
Parker 627mm Synthetic Rubber Hydraulic Hose Assembly, 215 bar Max PressureBrand	Parker

Key Features

The hose assembly features a synthetic rubber inner tube and cover with steel wire reinforcement for durability.
Fittings are zinc plated mild steel with threaded 3/4 inch female connections on both ends.
It operates efficiently between temperatures of -40°C and 100°C.
Constructed to meet RoHS standards and manufactured in Italy for quality assurance.
Suitable for petroleum-based hydraulic fluids, mineral oils, lubricating oils, water glycol, and various hydraulic emulsions.
Offers flexibility with a one-piece crimped end fitting eliminating mismatches in assembly.
Note that this assembly is not suitable for high pressure hydraulic pumps or cylinders beyond 215 bar.

Product Description

RS PRO 110-2236 Synthetic Rubber Hydraulic Hose Assembly with a length of 554mm and maximum operating pressure of 215 bar is a high-quality medium pressure hydraulic component designed for reliable fluid transmission.

The hose features a synthetic rubber inner tube and outer cover with steel wire reinforcement to provide strength and flexibility in demanding industrial environments. Zinc plated mild steel threaded female fittings (3/4 inch) are attached with a one-piece crimped end fitting for secure and reliable connections.

Operating temperature ranges from -40°C to 100°C ensure performance across diverse conditions. The product meets RoHS compliance standards and is manufactured in Italy, underscoring its quality and adherence to European manufacturing practices.

This hydraulic hose assembly is ideal for use with petroleum base hydraulic fluids, mineral oils, lubricating oils, water glycol solutions, water-oil emulsions, hot oils, greases, crude, and fuel oils. It is engineered for applications requiring flexible and durable hose assemblies with medium pressure capabilities.

Care should be taken not to use this assembly with high pressure hydraulic cylinders or pumps rated above 215 bar. Its design includes a pin prick cover which limits suitability for air or gas applications above 17 bar (250 psi).

The hose assembly incorporates a synthetic rubber tube and outer covering with steel reinforcement. Threaded 3/4 in female connections at both ends provide compatibility and ease of installation. Manufactured with one-piece end fittings for reduction of assembly errors.

Durable zinc plated mild steel fittings ensure resistance against corrosion and wear. Application versatility includes a broad range of hydraulic fluids and temperature conditions. Meets RoHS environmental and safety standards.

Manufactured in Italy to maintain high quality standards.

This RS PRO Hydraulic Hose Assembly is suitable for industrial, mechanical, construction, manufacturing, and fluid power applications requiring moderate pressure hydraulic tubing. Available from the EnvMart catalog for professional HVAC and hydraulics needs.
