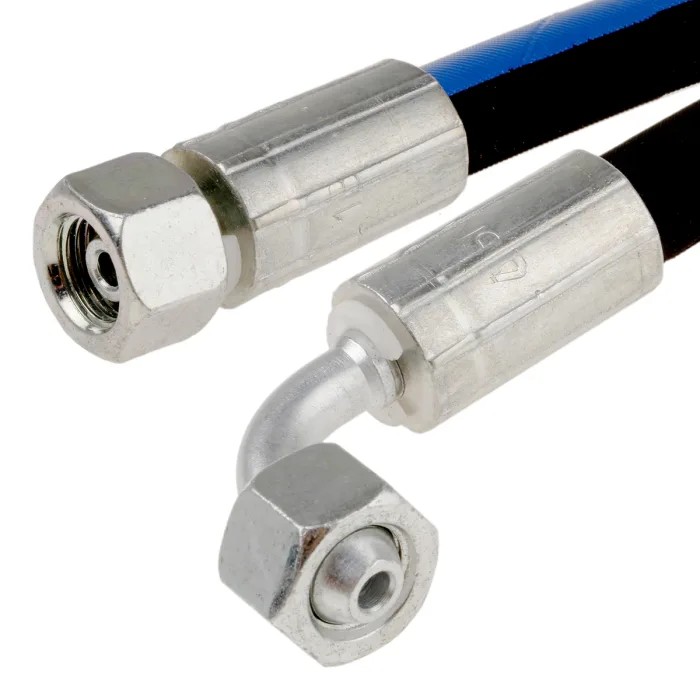

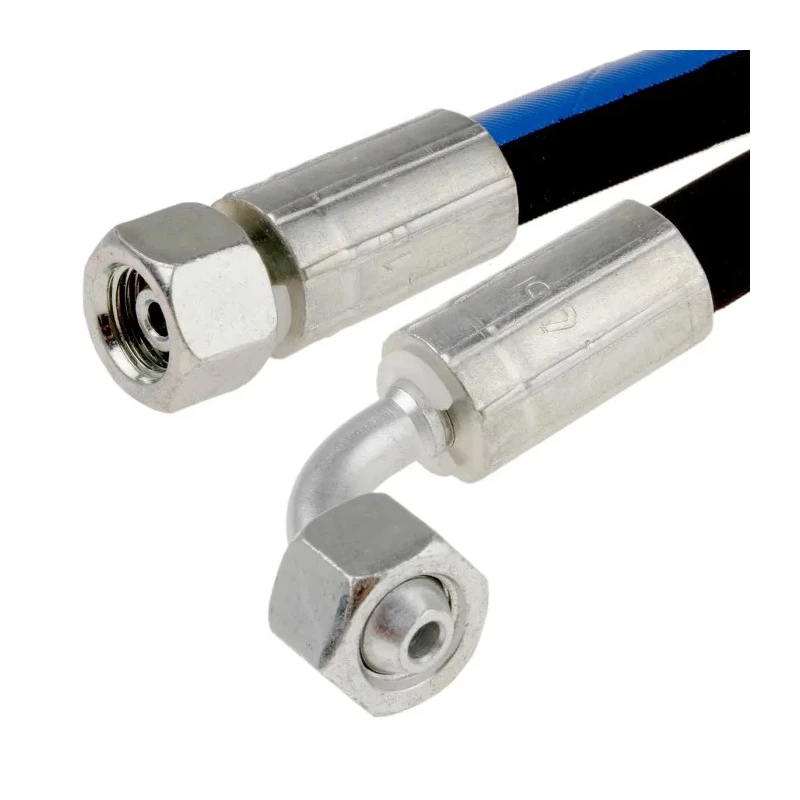

RS PRO Synthetic Rubber Hydraulic Hose Assembly 956mm Length 275 bar Max Pressure 110-2231

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Synthetic Rubber Hydraulic Hose Assembly 956mm Length 275 bar Max Pressure 110-2231

Name: RS PRO Synthetic Rubber Hydraulic Hose Assembly 956mm Length 275 bar Max Pressure 110-2231
Brand: RS PRO
SKU: 184105
Price: 53.73 USD
Availability: InStock



Category Hydraulic Hose Assembly Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Brand	RS PRO
Maximum Operating Pressure	275 bar
Model	110-2231
Cover Material	Synthetic Rubber
Overall Length	956mm
Maximum Operating Temperature	100°C
Inside Diameter	12.7mm
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Connection Size A	1/2 in
Connection Standard A	G
Connection Gender A	Female
Connection Type A	Threaded
Inner Hose Material	Synthetic Rubber
Reinforcing Material	Steel

Key Features

Constructed with synthetic rubber inner hose and outer cover for durability.
Reinforced with steel for high tensile strength and pressure resistance.
Features female threaded connections of 1/2 inch size on both ends.
Operates effectively in temperature range from -40°C to 100°C.
Complies with RoHS standards for environmental safety.
Designed primarily for medium pressure hydraulic fluid applications.
Suitable for petroleum-based fluids, mineral oils, water glycol and emulsions.
Manufactured in Italy ensuring high quality and reliability.

Product Description

RS PRO 110-2231 Synthetic Rubber Hydraulic Hose Assembly is a high-quality hydraulic hose designed for medium pressure hydraulic fluid transmission with a maximum operating pressure of 275 bar. The hose assembly has an overall length of 956mm and features synthetic rubber as the inner hose material and outer cover, combined with steel wire reinforcement for enhanced strength and durability.

Equipped with female threaded connections of 1/2 inch size on both ends conforming to G connection standards, this hose assembly ensures secure and leak-free fittings. It operates reliably in a temperature range from -40°C to +100°C, making it suitable for various industrial environments.

This Hydraulic Hose Assembly is compliant with RoHS environmental standards and is manufactured in Italy, exemplifying Germanic quality standards. It is suitable for applications involving petroleum-based hydraulic fluids, mineral oils, lubricating oils, water glycol mixtures, water-oil emulsions, hot oils, grease, crude and fuel oils, as well as air and water transmission.

The fittings are zinc plated mild steel which provides corrosion resistance, while the hose’s design with one-piece end fittings eliminates potential mismatches between inserts and sleeves, ensuring a reliable assembly.

This product is ideal for use in industrial, hydraulic, manufacturing, and fluid power applications requiring flexible medium pressure hose assemblies. Caution is advised since this hose is not designed for high-pressure hydraulic cylinders and pumps operating up to 700 bar.

Constructed with synthetic rubber inner hose and cover. Steel wire reinforcing for high tensile strength. 1/2 inch female threaded connections both ends. Operates from -40°C to 100°C temperature range. Adheres to RoHS environmental standards.

Zinc plated mild steel fittings for corrosion resistance. Suitable for petroleum-based and mineral hydraulic fluids. Overall length of 956mm. Maximum operating pressure of 275 bar. Manufactured in Italy. Explore more hydraulic hose assemblies and fittings in the EnvMart hydraulic assemblies category for industrial fluid transfer solutions.
