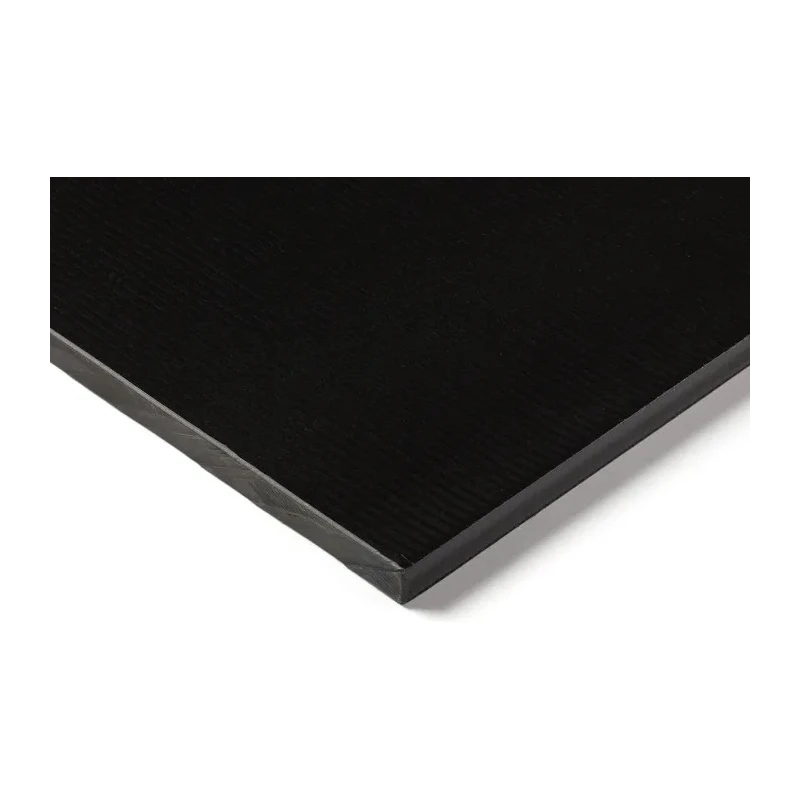

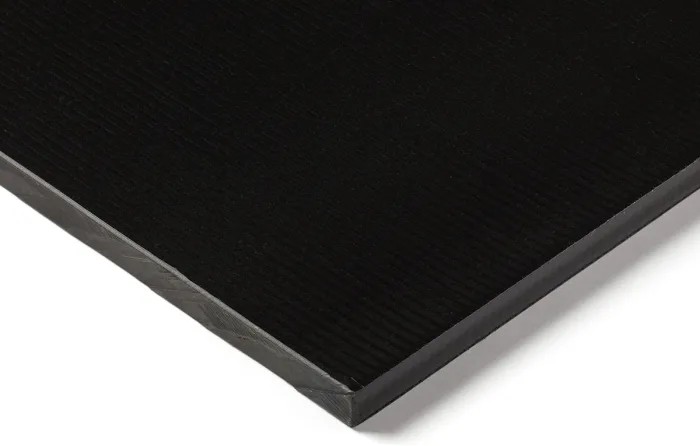

RS PRO Black Glass Reinforced Plastic Sheet Polyamide 66 GF30, 500 mm x 305 mm x 20 mm 771-875
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Material | Glass Reinforced Plastic |
| Colour | Black |
| THICKNESS | 20mm |
| Length | 500mm |
| Model | 771-875 |
| Width | 305mm |
| Tensile Strength | 160MPa |
| Density | 1.35g/cm³ |
| Maximum Operating Temperature | 100°C |
| Hardness | M 90 Rockwell |
| Thermal Conductivity | 0.27W/mK |
| Flammability Rating | UL94 HB |
| Water Absorption | 5.5% |
| Laminate Material | Polyamide 66 GF30 |
| RS Pro Black Glass Fibre Reinforced Nylon Solid Plastic Sheets - GRP Sheet | Glass Renforced Plastic |
Key Features
- Manufactured from Glass Reinforced Polyamide 66 GF30 for enhanced rigidity and dimensional stability.
- Sheet dimensions are 500 mm length, 305 mm width, and 20 mm thickness providing solid form factor.
- Black colour with UV protection suitable for outdoor use.
- High tensile strength of 160 MPa ensures excellent mechanical performance.
- Good thermal conductivity of 0.27 W/mK maintaining heat stability up to 100°C.
- Material hardness rated at M 90 Rockwell supporting wear resistance.
- Water absorption percentage of 5.5%, balancing moisture sensitivity.
- Flammability rating UL94 HB ensuring safety compliance.
Product Description
RS PRO 771-875 Black Glass Reinforced Plastic Sheet Polyamide 66 GF30 is a solid sheet made from high-quality Glass Fibre Reinforced Nylon 66 with 30% glass fibre content, providing enhanced strength, rigidity, and dimensional stability suitable for demanding industrial uses such as mechanical engineering, automotive, aerospace, and transport sectors.
This sheet measures 500 mm in length, 305 mm in width, and 20 mm in thickness. The black colour provides additional UV resistance, making it well suited for outdoor applications. With a tensile strength of 160 MPa and hardness rated at M 90 Rockwell, the material withstands mechanical stresses and offers good wear properties. Its thermal conductivity of 0.27 W/mK and maximum operating temperature of 100°C make it reliable for heat exposure environments.
The glass fibre reinforcement increases stiffness and creep resistance, though its abrasive nature cautions against use in sliding applications. Water absorption is maintained at 5.5%, balancing moisture tolerance without compromising structural integrity. The plastic sheet is weldable, bondable, and includes adhesive backing, facilitating integration into various assemblies.
Industrial users benefit from this sheet in applications such as gears, couplings, engine components, and machine parts, where high static load endurance and temperature resistance are essential. It serves sectors including mechanical engineering, transport and conveyor technology, aerospace, automotive industries, textiles, packaging, and paper production.
Manufactured from Glass Reinforced Polyamide 66 GF30 ensuring high rigidity and strength. Black colour enhances UV protection and weather resistance for outdoor suitability. Dimensions of 500 mm x 305 mm x 20 mm provide a robust solid sheet form.
High tensile strength of 160 MPa offers durability under mechanical stress. M 90 Rockwell hardness rating delivers excellent wear resistance. Maximum operating temperature of 100°C supports heated environment applications.
Includes adhesive backing for easy bonding and assembly integration. Material is weldable and bondable, ideal for fabrication tasks. Widely used in mechanical engineering, aerospace, automotive, and packaging industries.
Explore more industrial Plastic Sheets and materials on EnvMart for your manufacturing and engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dimensions of this sheet are 500 mm in length, 305 mm in width, and 20 mm in thickness.
It has a tensile strength of 160 MPa, providing excellent mechanical performance under stress.
The maximum operating temperature for this plastic sheet is 100°C, making it suitable for heated environments.
The material hardness is rated at M 90 on the Rockwell scale, indicating good wear resistance.
The thermal conductivity of this sheet is 0.27 W/mK, which helps maintain heat stability.
The water absorption percentage is 5.5%, balancing moisture sensitivity without compromising structural integrity.
Yes, the black colour provides UV protection, making it suitable for outdoor applications.
This sheet is widely used in mechanical engineering, automotive, aerospace, and packaging industries.
Yes, it includes adhesive backing, facilitating easy bonding and assembly integration.
It is manufactured from Glass Reinforced Polyamide 66 GF30, which enhances rigidity and dimensional stability.
The flammability rating is UL94 HB, ensuring compliance with safety standards.
Yes, the material is both weldable and bondable, making it ideal for various fabrication tasks.
