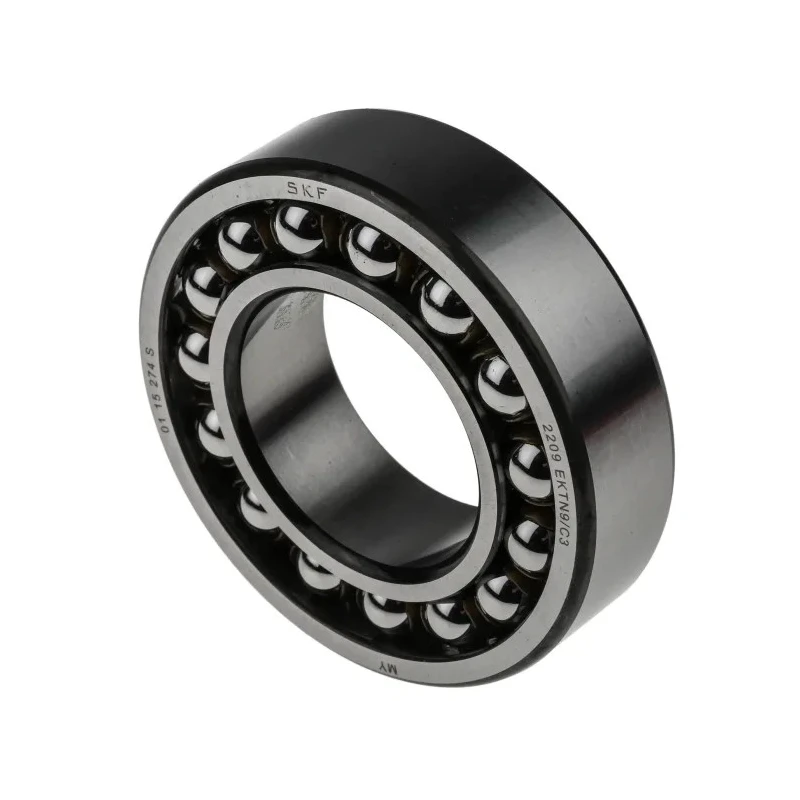

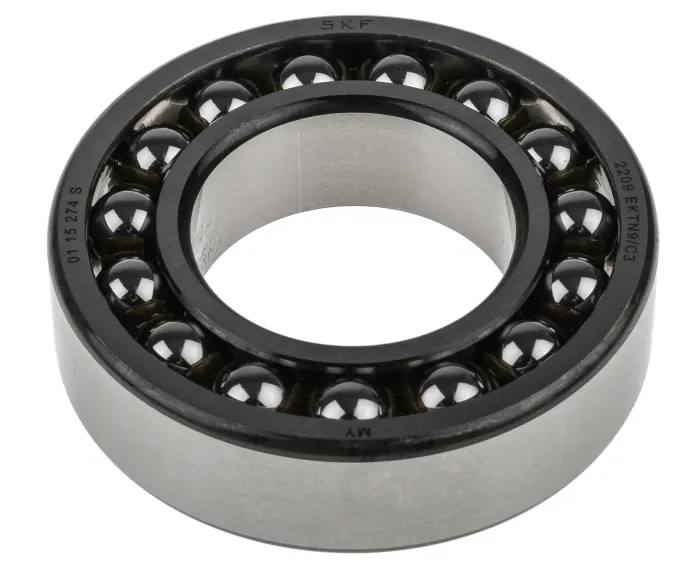

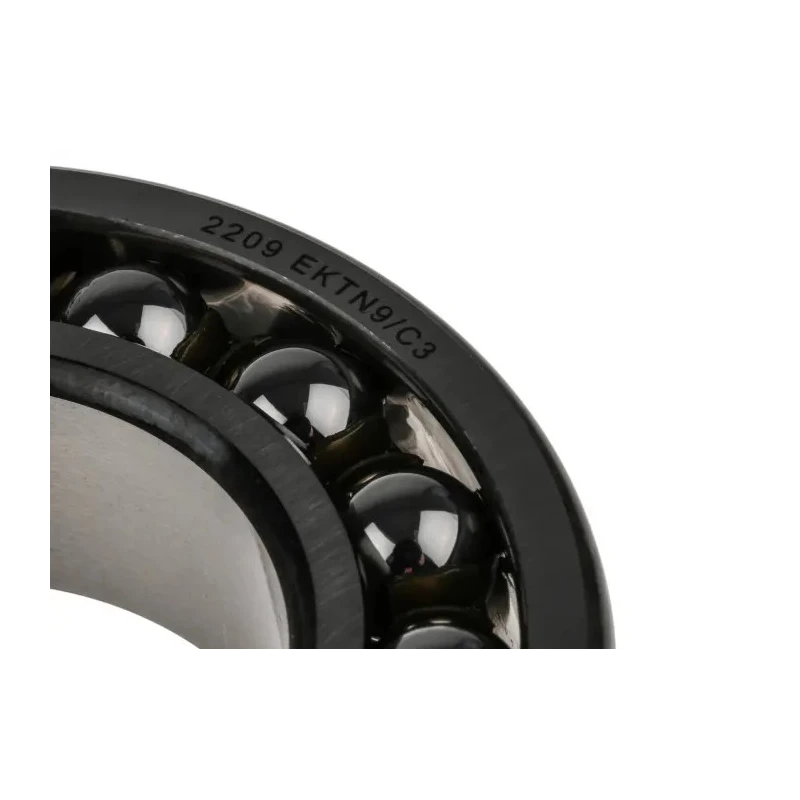

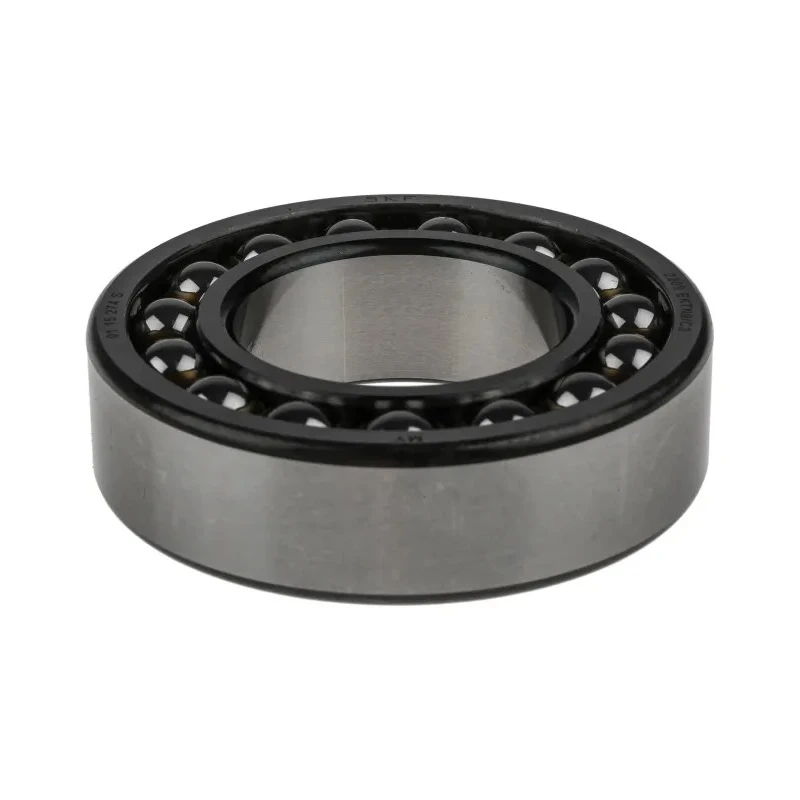

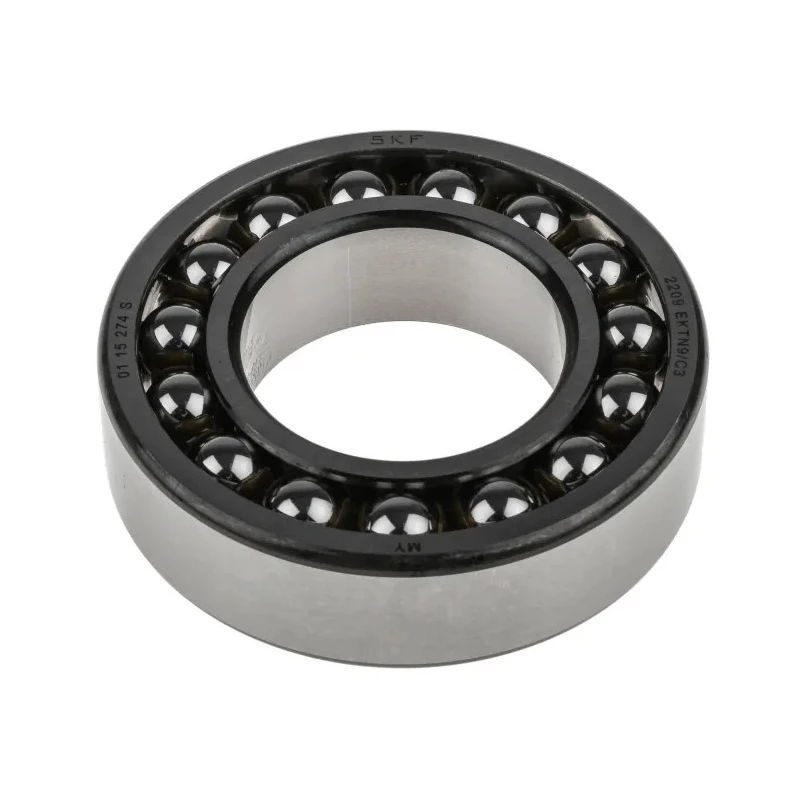

SKF Self-Aligning Ball Bearing 45 mm Inside Diameter 85 mm Outside Diameter 2 Row Non-Metallic Cage Open End 2209 EKTN9/C3
Specifications
| Country of Origin | India |
|---|---|
| Brand | SKF |
| Model | 2209 EKTN9/C3 |
| Series | Self-aligning ball bearings |
| Outside diameter | 85mm |
| Inside Diameter | 45mm |
| Number of Rows | 2 |
| Ball Material | Steel |
| Limiting Speed | 10000rpm |
| Internal Clearance | C3 |
| End Type | Open |
| Bore Type | Tapered |
| Bearing Type | Self-Aligning |
| Cage Material | Non-Metallic |
| Race Width | 23mm |
| Static Load Rating | 10.6kN |
| Dynamic Load Rating | 32.5kN |
Key Features
- Double-row ball bearing allows improved radial load distribution.
- C3 internal clearance accommodates thermal expansion during operation.
- Steel balls provide durable contact surfaces with hardened material properties.
- Non-metallic cage reduces friction and centrifugal forces at high speeds.
- Open end design requires external lubrication and contamination control.
- Tapered bore type for secure mounting with press or adaptor fitment.
- Rated limiting speed of 10000 rpm suits high-frequency rotational machinery.
- Dynamic load rating of 32.5 kN supports sustained operational loads.
Product Description
SKF 2209 EKTN9/C3 self-aligning ball bearing is specifically engineered for industrial machinery requiring angular compensation and high-speed rotation. With a 45 mm inside diameter and 85 mm outside diameter, this double-row bearing delivers excellent radial load distribution and durability.
The bearing incorporates steel balls providing a hardened contact surface optimized for boundary and mixed lubrication regimes. The non-metallic cage design reduces friction and centrifugal load, supporting operation up to 10000 rpm.
This open-ended bearing features a tapered bore allowing press or adaptor mounting, ensuring secure and precise installation. Its C3 internal clearance permits thermal expansion during load conditions, enhancing reliability during continuous use.
Typical industrial applications include conveyor drive shafts with shaft misalignment, gearboxes requiring angular correction, agricultural machinery with fluctuating loads, industrial fans, and blowers operating at elevated speeds.
The self-aligning feature allows the inner ring to tilt relative to the outer ring, accommodating shaft deflection and reducing misalignment stresses. Lubrication and contamination control are to be managed externally due to the open end design.
Double-row ball bearing for enhanced radial load capacity. C3 clearance for thermal expansion handling. Steel balls for robust wear resistance and contact performance. Non-metallic cage to reduce friction and support high-speed operation.
Open end bearing requires external lubrication strategy. Tapered bore enables adaptor or press-fit installation. High limiting speed rating of 10000 rpm. Dynamic load rating of 32.5 kN and static rating of 10.6 kN. Self-aligning design corrects shaft misalignment during use.
This product is ideal for use in industrial, manufacturing, agricultural, conveyor, gearbox, and HVAC applications requiring durable, high-performance rotary bearings. Browse EnvMart for related SKF rotor bearings and accessories to support your machinery maintenance and operational efficiency.
Explore more products in our Rotary Bearings & Housing Units category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SKF 2209 EKTN9/C3 self-aligning ball bearing has an inside diameter of 45 mm and an outside diameter of 85 mm.
The dynamic load rating for this bearing is 32.5 kN, which supports sustained operational loads.
This model has a rated limiting speed of 10000 rpm, suitable for high-frequency rotational machinery.
It features a non-metallic cage, which helps reduce friction and centrifugal forces at high speeds.
This bearing has two rows of steel balls, allowing for improved radial load distribution.
The SKF 2209 EKTN9/C3 has a tapered bore type, which allows for secure mounting with press or adaptor fitment.
It has a C3 internal clearance, which accommodates thermal expansion during operation.
The static load rating for this model is 10.6 kN.
This self-aligning ball bearing is suitable for applications such as conveyor drive shafts, gearboxes, and agricultural machinery.
The bearing has a race width of 23 mm, an inside diameter of 45 mm, and an outside diameter of 85 mm.
Yes, the open end design of this bearing requires external lubrication and contamination control.
The SKF 2209 EKTN9/C3 self-aligning ball bearing is manufactured in India.
