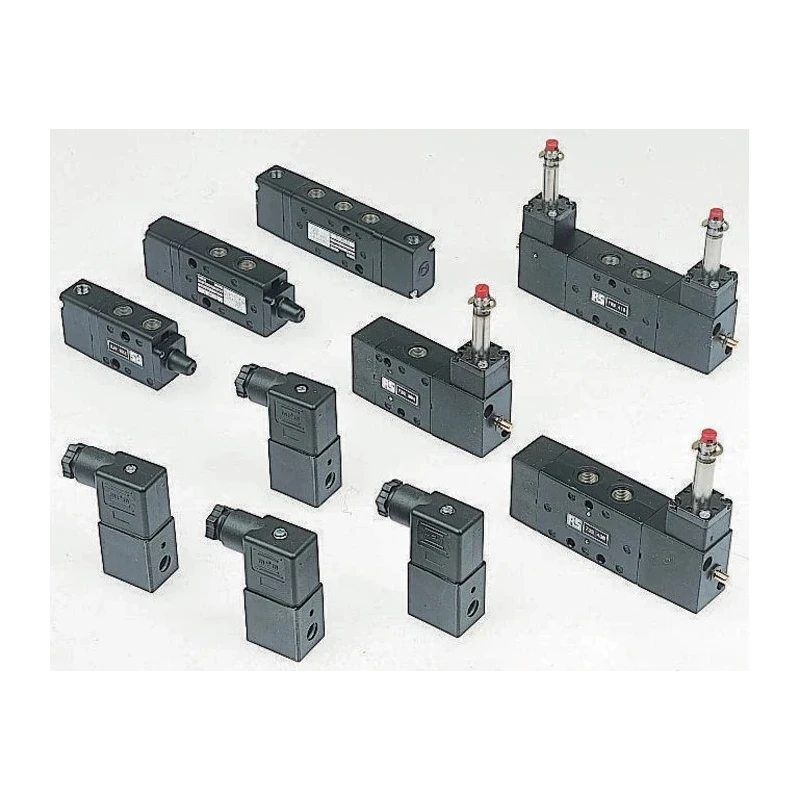

Norgren Pneumatic Solenoid Valve 3/2 NC Pilot/Spring G 1/4 in Port Die Cast Aluminium Body 7.5W 1422350L000
Specifications
| Country of Origin | China |
|---|---|
| Brand | Norgren |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 10 bar |
| Model | 1422350L000 |
| Mount Type | Through Hole |
| Series | G 1/8 03 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 2 |
| Port Size | 1/4 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | 5°C |
| Actuation Type | Pilot/Spring |
| Maximum Flow Rate | 965L/min |
| Standards/Approvals | RoHS |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 2bar |

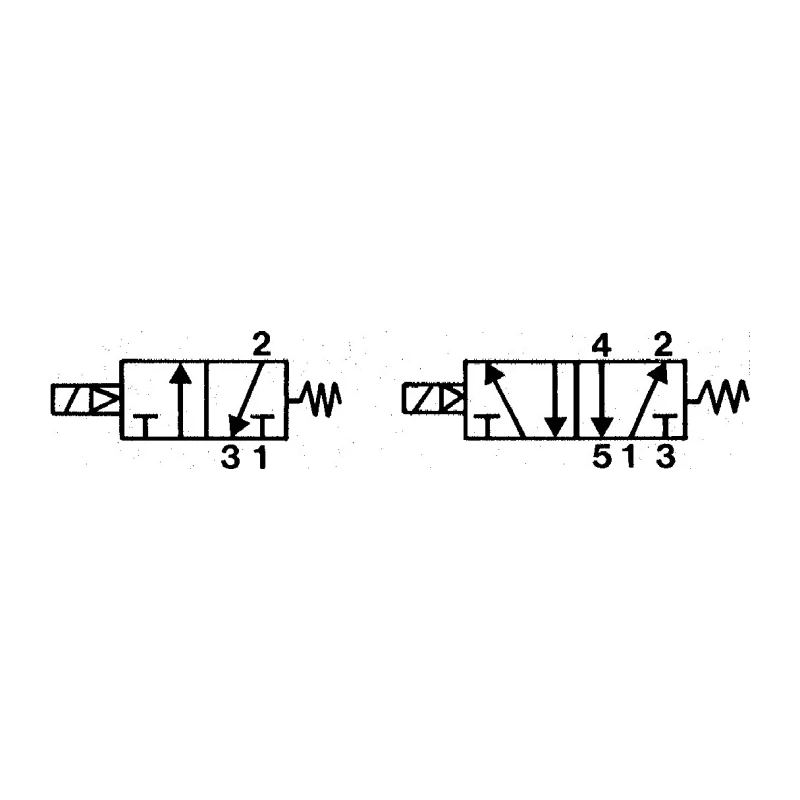

| Valve Function | 3/2 NC |
| Electrical Connection Type | 22 mm, Industrial Standard |
| Solenoid Type | Low and High Power Options |
| Solenoid Power Consumption | 7.5W |
Key Features
- Compact valve with 3 ports and 2 positions for efficient airflow control.
- Die cast aluminium body provides corrosion resistance and durability.
- Nitrile Rubber (NBR) seals offer abrasion resistance to prevent leaks.
- Operates at pressures up to 10 bar with a flow rate of 965 L/min.
- Suitable operating temperature range from 5°C to 50°C for versatile environment use.
- Pilot/spring actuation with low and high power solenoid options.
- Standard G1/4 thread ports enable compatibility with common fittings.
- Mountable in four positions at 90° increments for installation flexibility.
Product Description
Norgren 1422350L000 Pneumatic Solenoid Valve 3/2 NC Pilot/Spring, G Series with 1/4 inch ports and a robust die cast aluminium body, is designed for precise compressed air control in demanding industrial environments. This valve uses pilot/spring actuation combined with low and high power solenoid options allowing seamless on/off pneumatic flow management in manufacturing, HVAC, agricultural, and fluid power systems.
With a maximum operating pressure of 10 bar and a flow rate capacity of 965 L/min, it supports diverse pneumatic applications. The valve is equipped with durable nitrile rubber (NBR) seals that resist abrasion and ensure leak-free operation. Its temperature tolerance from 5°C to 50°C allows usage in standard industrial ambient conditions.
The valve features 3 ports and 2 positions, providing 3/2 normally closed operation to control airflow effectively. Its mount type allows secure mounting through holes and installation flexibility by positioning the valve in four different orientations at 90-degree increments. The G1/4 threaded connection ensures compatibility with common pneumatic tubing and fittings.
Electrical connection is standardized with a 22 mm industrial connection type, facilitating integration into existing control systems. It complies with RoHS standards for reduced hazardous substances, supporting sustainability in industrial settings.
Typical applications include manufacturing plants requiring reliable fluid power control, agricultural equipment automation, and climate control systems in HVAC installations. The valve is rated IP65, making it dust-tight and resistant to low-pressure water jets, enhancing durability in challenging environments.
Compact design with 3 ports and 2 positions for airflow management. Durable die cast aluminium body resists corrosion in damp environments. NBR seals prevent leaks and improve operational lifespan. Operates within 5°C to 50°C ambient temperature range.
Suitable for industrial, agricultural, and HVAC use cases. Explore additional Pneumatic Solenoid Valves and fluid power components in EnvMart's Industrial Valves category for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 10 bar.
It has a flow rate capacity of 965 L/min.
The operating temperature range for this model is from 5°C to 50°C.
This valve features 3 ports.
It uses pilot/spring actuation.
The body is made of die cast aluminium, and it has nitrile rubber (NBR) seals.
The electrical connection type is standardized at 22 mm, industrial standard.
Yes, it can be mounted in four positions at 90-degree increments for installation flexibility.
The seal material used in this valve is nitrile rubber (NBR).
This valve complies with RoHS standards for reduced hazardous substances.
This model has a 3/2 normally closed (NC) valve function.
The minimum pilot pressure required for operation is 2 bar.
