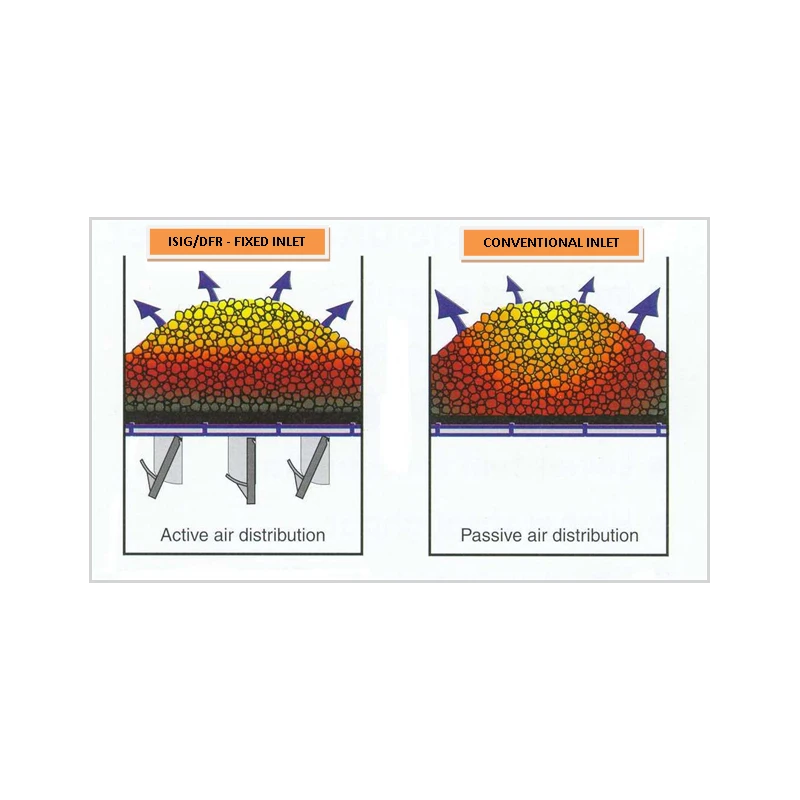

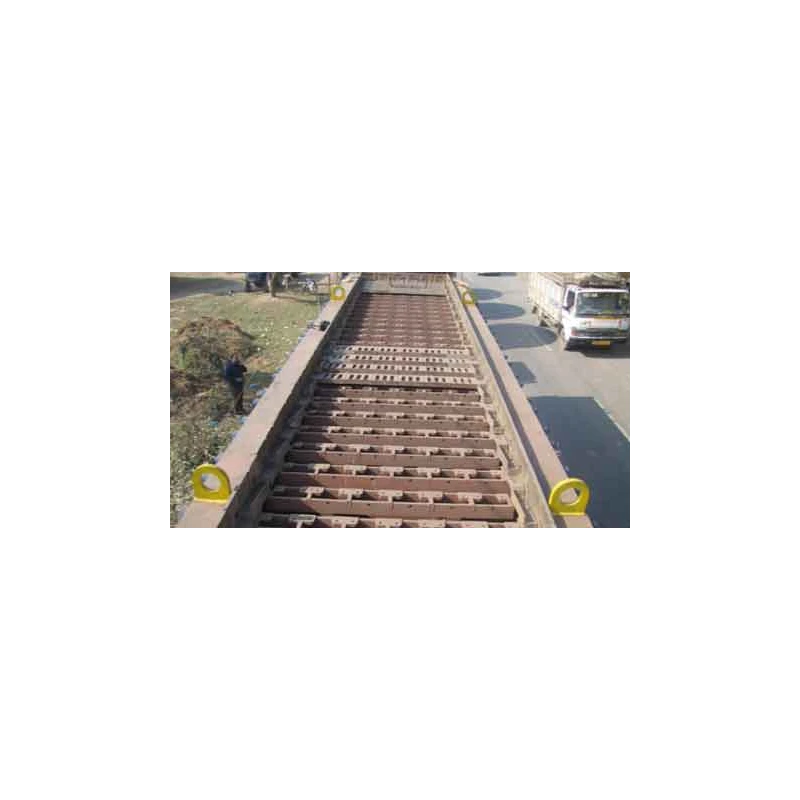

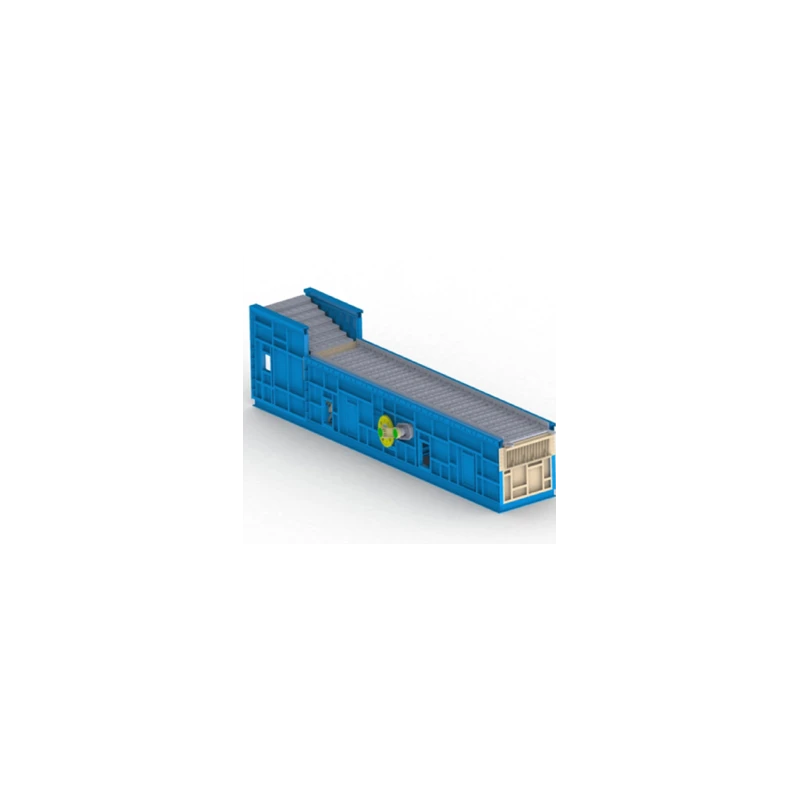

Industrial Clinker Cooler is extensively used to cool the clinker and extracted heat from hot clinker is supplied at secondary and tertiary air to kiln. Acknowledged for its optimum specific grate load, this ensures lower heat consumption. It is basically supplied in two independent entities inlet stationary inclined grate and reciprocating clinker grate cooler which are then joined together for achieving maximum recuperation of heat. Moreover, the cooler operates with no risk of "Snowman" formation as there are air blasters installed at front and side walls.HIGHLIGHTSSpecific Grate load:45 - 50 t/d m2Designed cooling air: 2.0 -2.2Nm3/kg ClinkerRequired cooling air: 1.7 -1.8 Nm3/kg ClinkerProvided with Inlet Stationary inclined Grate(ISIG) and Dynamic Flow regulator(DFR)Lower heat consumption/Kg Clinker due to High Secondary Air temperature which helps in intense burner flameHigh Tertiary Air causes good degree of Pre-calcination in Calciner and reduces fuel consumptionNo Internal Ducting/manual DampersUniform Distribution Of Air Through-out the with Inlet Stationary inclined Grate (ISIG) Zone ensured By Dynamic Flow Regulators (DFR)Air Blasters Installed At Front & Side Walls Eliminate Snowman FormationNo Clinker Fall Through

• As ISIG does the major heat recovery task, for balance Clinker cooling it is equipped with conventional Reciprocating Grate Cooler.
