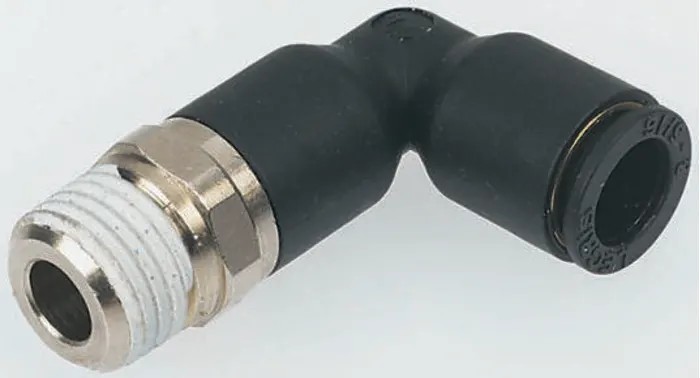

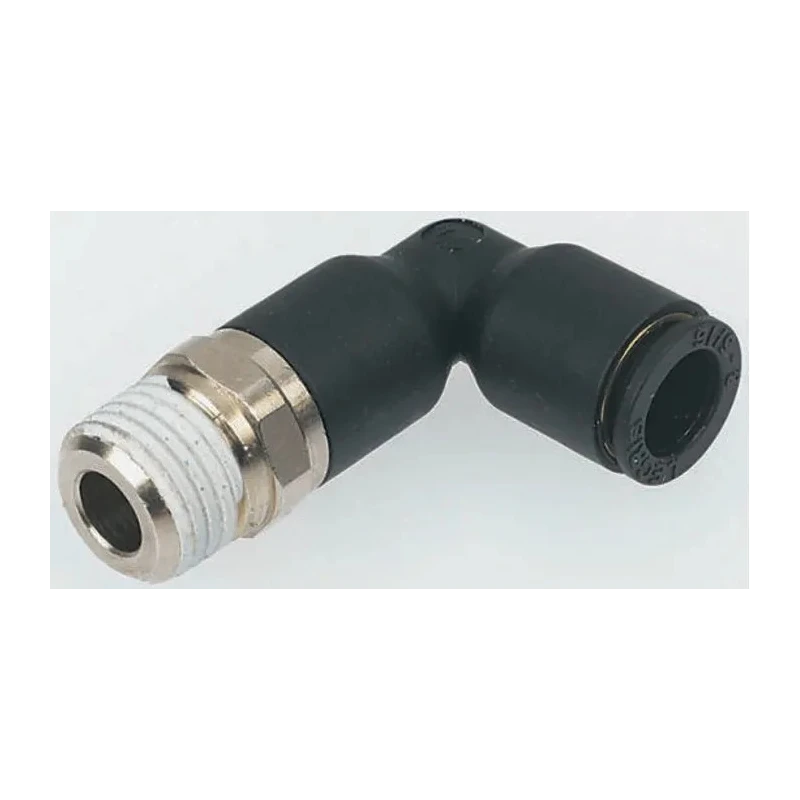

Legris LF3000 Series Male Pneumatic Fitting Nickel Plated Brass Threaded-to-Tube Push-In 10mm, 1/4 in R Thread LF3000

Legris LF3000 Series male pneumatic fitting is a high-quality nickel-plated brass component designed for pneumatic systems requiring threaded-to-tube connections. The fitting features a 1/4 inch R taper thread male connection combined with a 10 mm push-in tube connection. Constructed from nickel-plated brass, it ensures excellent durability and resistance to corrosion, making it suitable for industrial compressed air systems.

This fitting supports operating pressures up to 20 bar and temperatures up to 80 degrees Celsius. The full bore design delivers efficient airflow while maintaining an exceptionally low leak rate, critical for maintaining pneumatic system integrity. It is suitable for use with all plastic pneumatic plastic tubing and is 100% leak tested during manufacture, conforming to ISO standards.

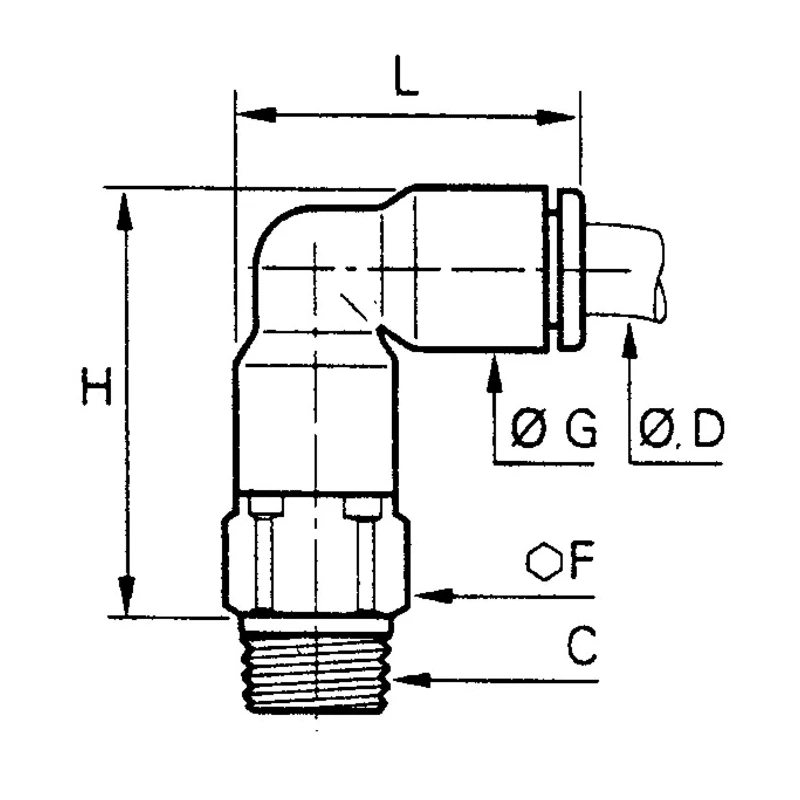

The LF3000 Series includes threaded tube adaptors, elbows, and tees, with sizes ranging from 4 to 12 mm. This particular fitting’s extended elbow adaptor design allows the tubing to pass over elbow fittings, enhancing installation flexibility. The push-in assembly allows quick and reliable tube connections without tools, and disconnection is achieved by depressing a release collet. The product includes nitrile O-rings to ensure a secure seal under both vacuum and positive pressure conditions up to 20 bar.

Common industrial applications encompass pneumatic lines in manufacturing, laboratory automation, fluid power controls, and HVAC pneumatic control systems. Compliance with ISO 14743 standards and date coding for traceability enhance quality control and system reliability.

Nickel-plated brass material offers long-lasting corrosion resistance. Operates between -20 to +80°C temperature range and 0 to 20 bar pressure. Threaded male taper R 1/4 inch connection with 10 mm push-in tube size. Push-in assembly requires no additional tools for installation.

Designed for air compression systems with vacuum capabilities down to 0.9 bar. ISO 14743 compliant and 100% leak tested for quality assurance. Extended elbow adaptor ideal for flexible tube routing in complex pneumatic systems.

Choose the Legris LF3000 Series for reliable and precise pneumatic fitting needs in industrial and laboratory pneumatic systems. Explore more products in the Pneumatic Fittings category at EnvMart for comprehensive fluid power solutions.
