SMC Pneumatic Solenoid Valve Solenoid Metric PVQ Series 24V PVQ13-5L-08-M5-A

Free Delivery in India | Lowest Global Shipping Charges

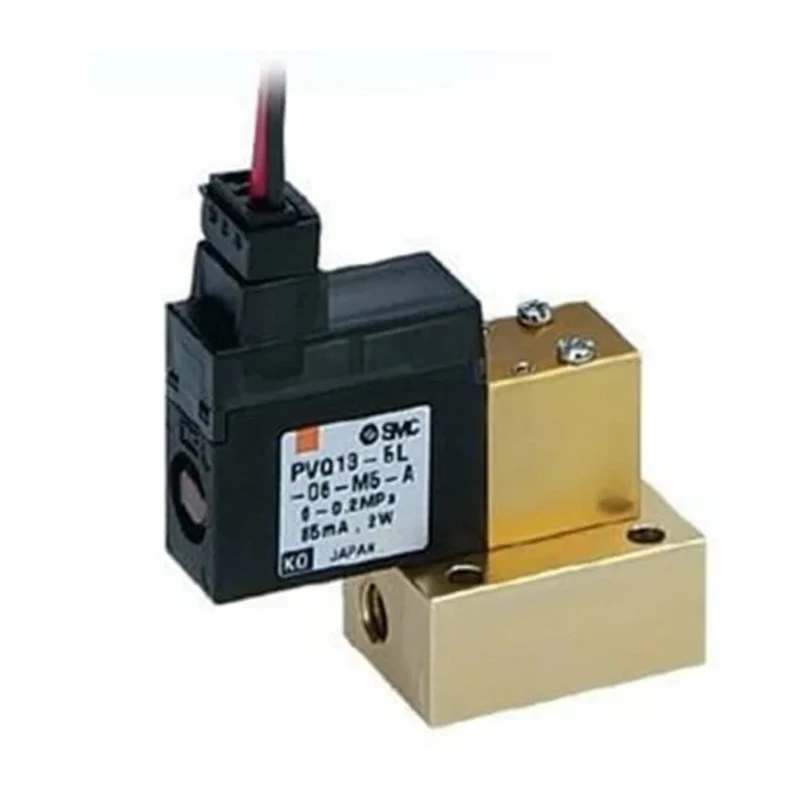

SMC Pneumatic Solenoid Valve Solenoid Metric PVQ Series 24V PVQ13-5L-08-M5-A



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	0.7 bar
Height	36.6mm
Length	38.1mm
Model	PVQ13-5L-08-M5-A
Width	16mm
Mount Type	Base
Series	PVQ
Number Of Ports	2
Maximum Operating Temperature	50°C
Port Type	O-Ring
Number of Positions	2
Port Size	M5
Seal Material	Fluorelastomer
Minimum Operating Temperature	0°C
Actuation Type	Solenoid
Maximum Flow Rate	6L/min
Standards/Approvals	RoHS
Connection Thread Standard	Metric
Mount Pattern	Base
Minimum Pilot Pressure	0.25bar
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	2W

Key Features

Designed for precise flow control with maximum operating pressure of 0.7 bar.
Constructed with a die cast zinc body and fluorelastomer seals ensuring durability.
Compact dimensions with length 38.1 mm, width 16 mm, and height 36.6 mm for easy mounting.
Operates within temperature range of 0°C to 50°C for reliable performance.
Direct operated poppet valve minimizing leakage when de-energized.
Consumes 2W solenoid power for efficient actuation.
Suitable for industrial applications including air blow and flow control in machinery and medical equipment.
Mount type and pattern is base for stable installation.

Product Description

SMC PVQ13-5L-08-M5-A Pneumatic Solenoid Valve from the PVQ series is a compact, direct-operated poppet valve designed for precise and reliable pneumatic control applications. It features a dual-port design with O-Ring ports to ensure leak-tight operation. The valve body is made of durable die cast zinc, complemented with fluorelastomer seals to withstand industrial environments.

Operating at 24V with a solenoid power consumption of only 2W, this valve provides efficient actuation with a maximum operating pressure of 0.7 bar. Its compact size, measuring 38.1 mm in length, 16 mm in width, and 36.6 mm in height, allows for easy base mounting in a variety of pneumatic systems.

This valve is engineered to work reliably in temperature ranges from 0°C up to 50°C. The direct-operated poppet mechanism ensures minimal leakage when the valve is de-energized, making it ideal for precision applications such as air blow, flow control, and respiratory or laser machinery cooling.

Precise flow control with low leakage design. Durable die cast zinc construction with fluorelastomer seals. Compact size for flexible mounting options. Efficient 2W solenoid power consumption at 24V. RoHS certified and manufactured in Japan.

Suitable for industrial, laboratory, and medical pneumatic applications. Operates within 0°C to 50°C temperature range. Female port gender with metric threading. Base mount type ensuring stable installation. Two port positions supporting varied flow requirements.

This pneumatic solenoid valve is a reliable component for industrial automation, HVAC, manufacturing, and medical device pneumatic systems. Explore the full range of SMC pneumatic valves and accessories at EnvMart for enhanced system integration.
