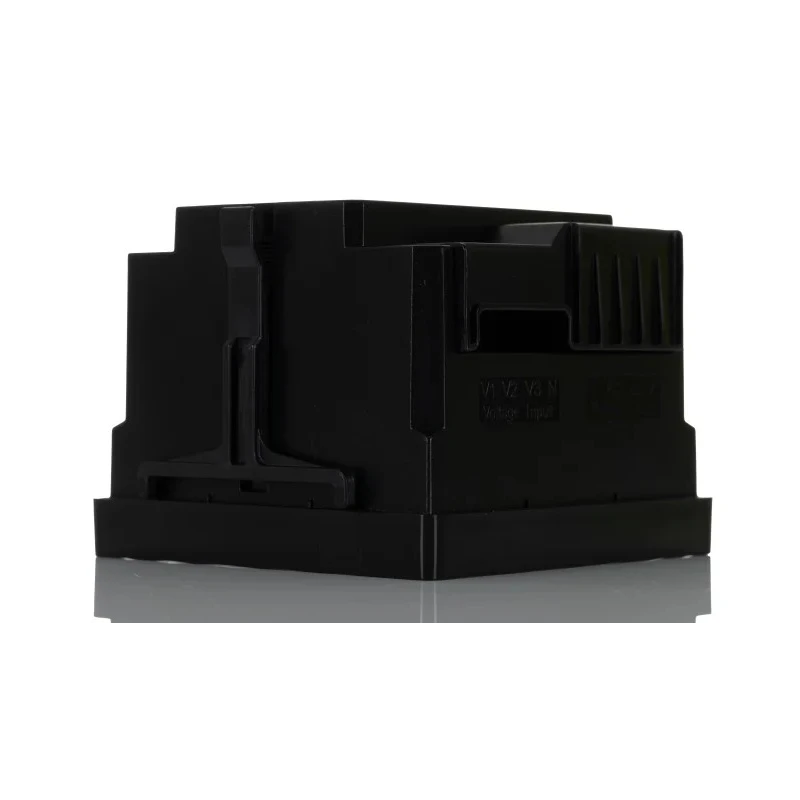

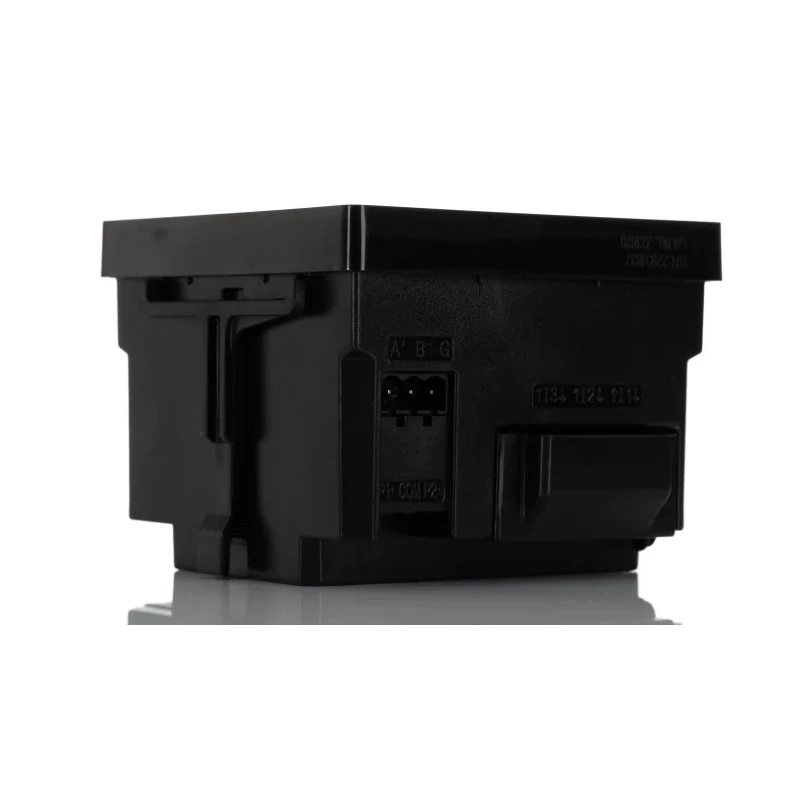

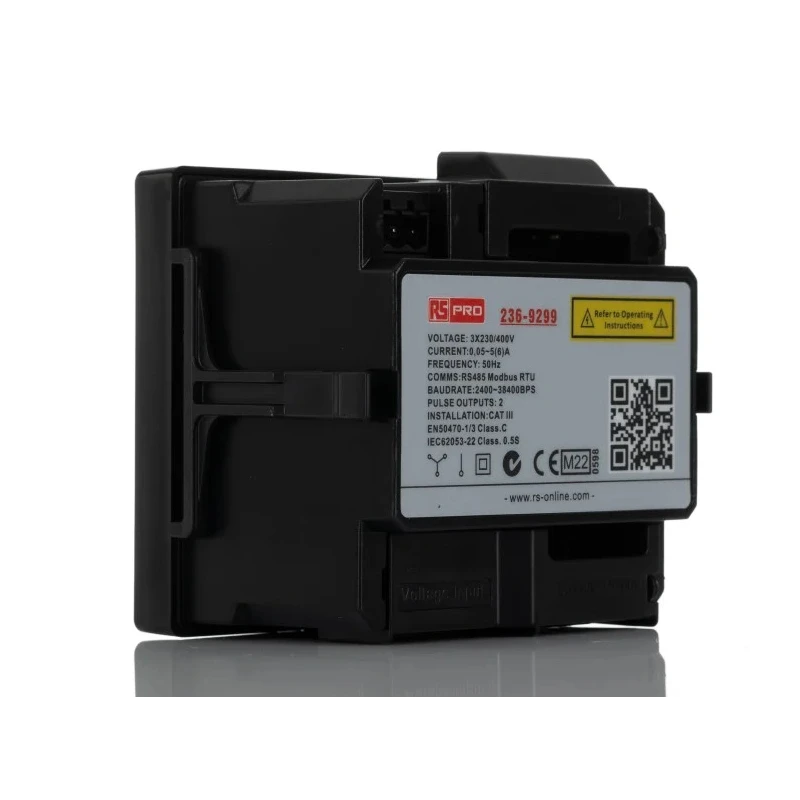

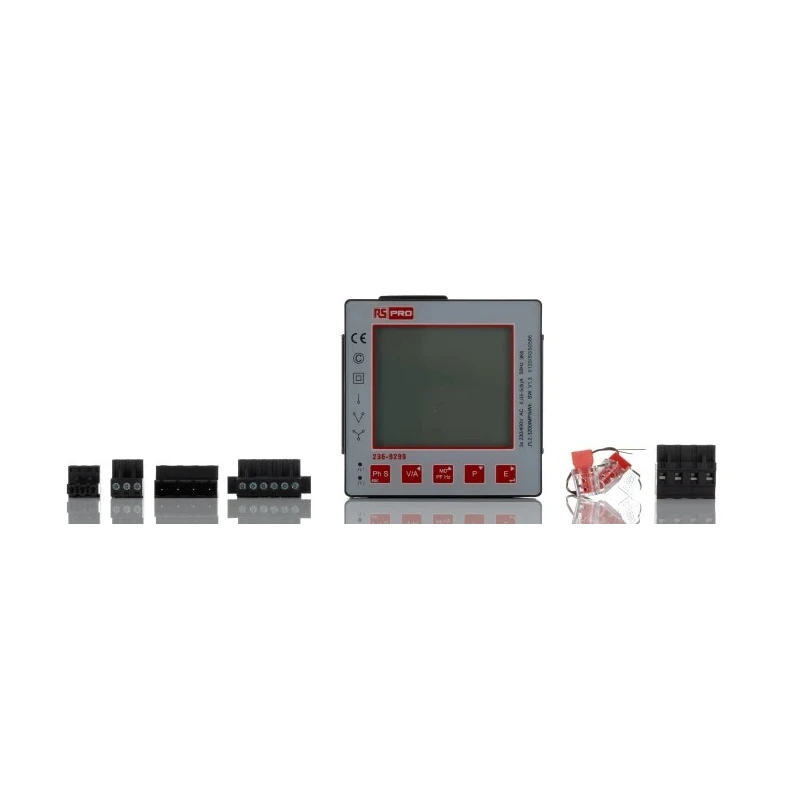

RS PRO 3 Phase LCD Backlight Energy Meter 96x96mm Panel Mount MID Certified 236-9299

RS PRO 236-9299 is a high accuracy, multifunction 3 Phase Energy Meter with a 96x96mm panel mount fitting and an LCD backlight display. It is specifically designed for industrial and commercial applications requiring reliable energy monitoring and sub billing.

This meter operates on a traditional wired 1/5A current transformer system and is programmable for configurations including 1 phase 2 wire, 3 phase 3 wire, and 3 phase 4 wire systems. It measures a wide array of electrical parameters such as voltage, current, power, power factor, imported/exported kWh, individual harmonics up to 63rd level, phase sequence, and provides a phase summary page.

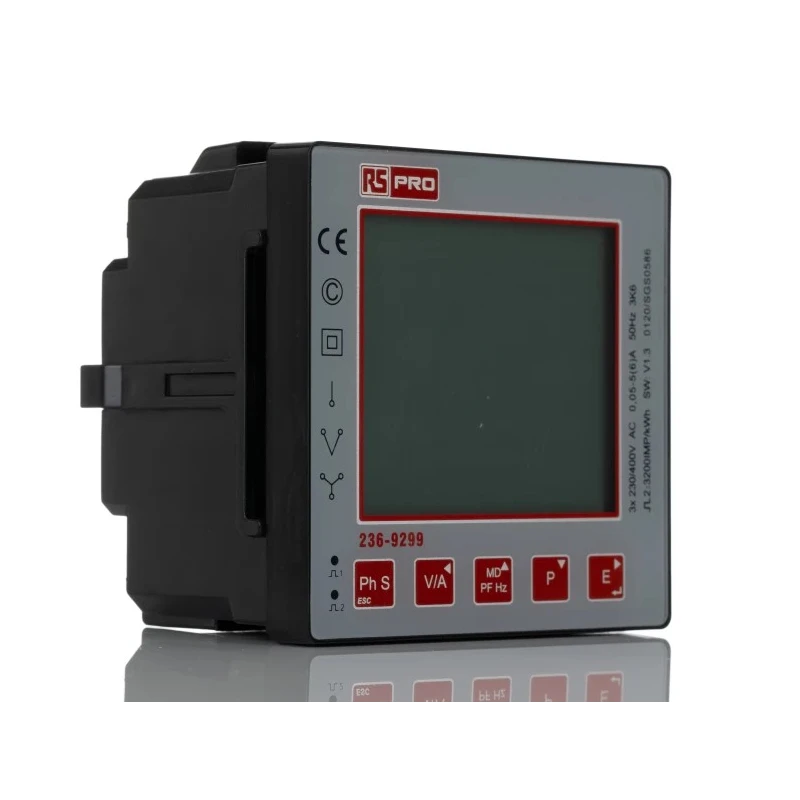

The meter features a highly visible backlit LCD display enabling easy reading from various angles. Its internal self-supply system uses any of the three connected phases, removing the need for an additional auxiliary power source. This contributes to ease of installation and reduced wiring complexity.

Certified to MID standard (B&D - 0120/SGS0586) and RoHS compliant, this meter also adheres to IEC 60068-2-6 environmental standards, ensuring robust operation under industrial conditions ranging from -25°C to 55°C.

Additional features include built-in pulse output and RS485 Modbus RTU communication protocol, enabling seamless integration with Building Management Systems (BMS) and remote monitoring setups. The programmable reverse flow feature manages left/right side breaker CT installations effectively, while the relay output provides real-time energy measurement indication.

Typical applications for the RS PRO 236-9299 meter include industrial energy monitoring, commercial sub metering, power quality analysis, and integration within complex electrical distribution schemes. Its combination of high functionality, certification, and user-friendly design makes it suitable for various industrial, laboratory, and manufacturing environments.

High accuracy multifunction 3 Phase Energy Meter with 96x96mm panel mount. Programmable configurations for 1p2w, 3p3w, and 3p4w systems. Backlit LCD display for clear visibility in diverse lighting conditions. B&D MID certified and RoHS compliant with IEC60068-2-6 approval.

Built-in pulse output and RS485 Modbus RTU for system integration. Measures volts, amps, power, power factor, harmonics, and energy export/import. Internal self-supply from connected phases eliminates auxiliary connections.

Operating temperature suitable for industrial environments (-25°C to 55°C). Relay output and programmable reverse flow features enhance functionality. Explore more Energy Meters and industrial measuring instruments in EnvMart to find the perfect fit for your application.
