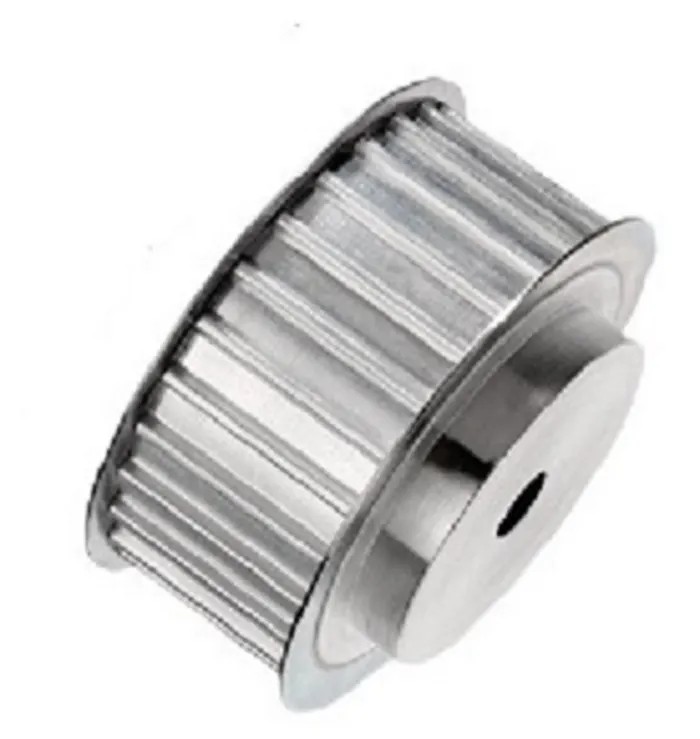

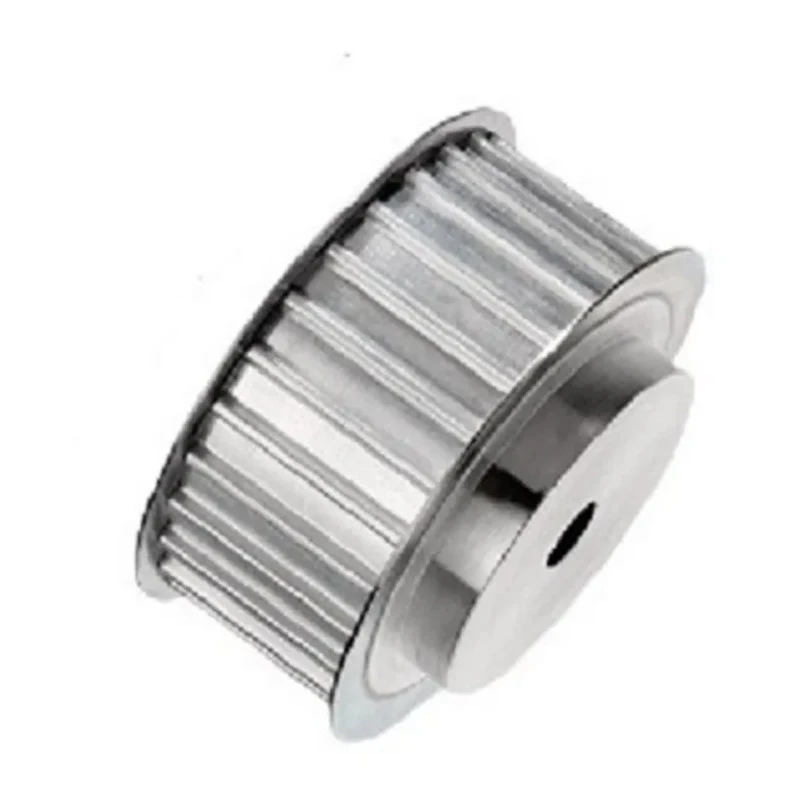

OPTIBELT Timing Belt Pulley Aluminium 25 mm Belt Width 10 mm Pitch 22 Tooth 22-240AT10

OPTIBELT 22-240AT10 Timing Belt Pulley is a precision-engineered component constructed from aluminium, featuring a 25 mm belt width and a 10 mm pitch with 22 teeth. This pulley is designed specifically for use with HTD belts and is optimized for industrial mechanical power transmission applications.

The pulley has a pitch circle diameter of 70.03 mm and an outside diameter of 68.15 mm, ensuring efficient power transfer and reliable operation. It incorporates a pilot bore type with a finished bore diameter of up to 28 mm, allowing for secure and accurate mounting onto the shaft.

Its flanged design, with a flange diameter of 75 mm, provides excellent belt retention and stability during operation, reducing slippage and enhancing longevity. Manufactured from high-quality aluminium, the pulley offers high strength while remaining lightweight, suitable for various industrial applications requiring precision and durability.

This timing belt pulley is ideal for integration in material handling equipment, manufacturing machinery, and other mechanical power transmission systems that require reliable and precise belt drive components.

Constructed from high-strength aluminium for durability. Features 22 teeth suited for HTD belts with AT10 profile. 25 mm acceptable belt width ensures compatibility with standard belts. Pitch diameter optimized at 70.03 mm for efficient power transfer.

Incorporates pilot bore with a maximum diameter of 28 mm for secure mounting. Flanged design with 75 mm flange diameter enhances belt retention. Outside diameter measures 68.15 mm ensuring balanced operation. Designed for industrial mechanical power transmission applications.
