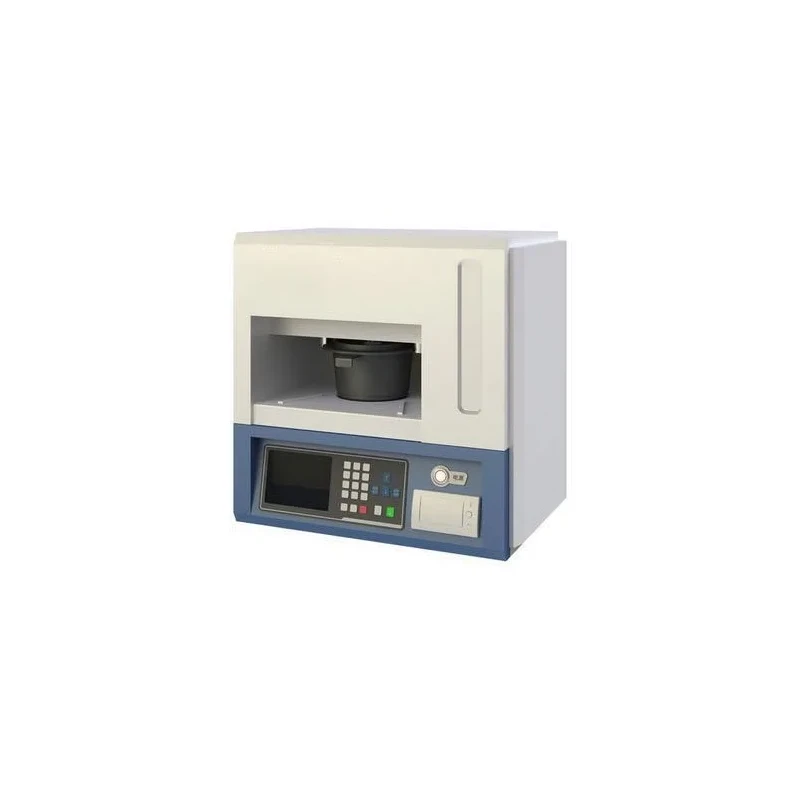

Industrial Automatic HGI Tester for Coal Pc-controllable
Specifications
| Temperature Accuracy | +/-1 |
|---|---|
| Material | Stainless Steel |
| Grade | Automatic |
| Power | Greater Than 5 KW |
| Applications | Industrial This instrument can be used to determine grindability of coal in coal industry| power plants| metal |
| Power Requirement | 220V| 50/60 Hz |
| Feed Size | 0.63~1.25 mm |
| Weight | 52 kgs |
| Supply | AC |
| Ball Diameter | 25.4 mm |
| Continual Detection Capacity | Greater than 104 m |
| Cabinet Dimension | 400 mm x 550 mm x 600 mm |
| Conformance to Standards | SO 5074 1994 Hard coal-Determination of Hardgrove Grindability Index. ASTM D409-08 Standard Test Met |
| Spindle RPM | 201 r/min |
| Working Revolution | 60r |
| Grinding Bowl Capacity | 50g |
| Vertical Pressure of Grinding | 2842 N |
Key Features
- With microcomputer intelligent controlling system, real time display of working status and process
- High automation: Auto-lifting and loading, automatic revolution and counting, and stop automatically after 60 round
- With built-in linear regression correction curve, calculation and calibration can be finished automatically
- With emergency stop function. If restart, revolution counting can accumulate
Product Description
Industrial Automatic HGI Tester for Coal PC-CONTROLLABLE SDHG60A, The Hardgrove Grindability Index (HGI) is a measure of coal's resistance to crushing. Grinding studies, and the resulting HGI, allow many different types of coal users to evaluate how coals will perform in their mills, allowing them to estimate grinding power requirements and throughput capacities
- With film key and LCD screen, it''s easy to operate
- Connection with balance is available; Data can be stored automatically; With micro-printer, it can realize the functions of date query, automatic calculation, result print and so on...
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power requirement for this model is 220V with a frequency of 50/60 Hz.
This unit weighs 52 kgs.
The spindle RPM for this model is 201 r/min.
The feed size for the coal sample should be between 0.63 to 1.25 mm.
The instrument is constructed from stainless steel.
It can be used to determine the grindability of coal in the coal industry, power plants, and metal industries.
The grinding bowl capacity is 50 grams.
The vertical pressure of grinding is 2842 N.
It conforms to SO 5074 1994 and ASTM D409-08 standards for determining the Hardgrove Grindability Index.
This model features high automation, including auto-lifting and loading, automatic revolution and counting, and it stops automatically after 60 revolutions.
Yes, it has the capability to store data automatically and includes a micro-printer for result printing.
