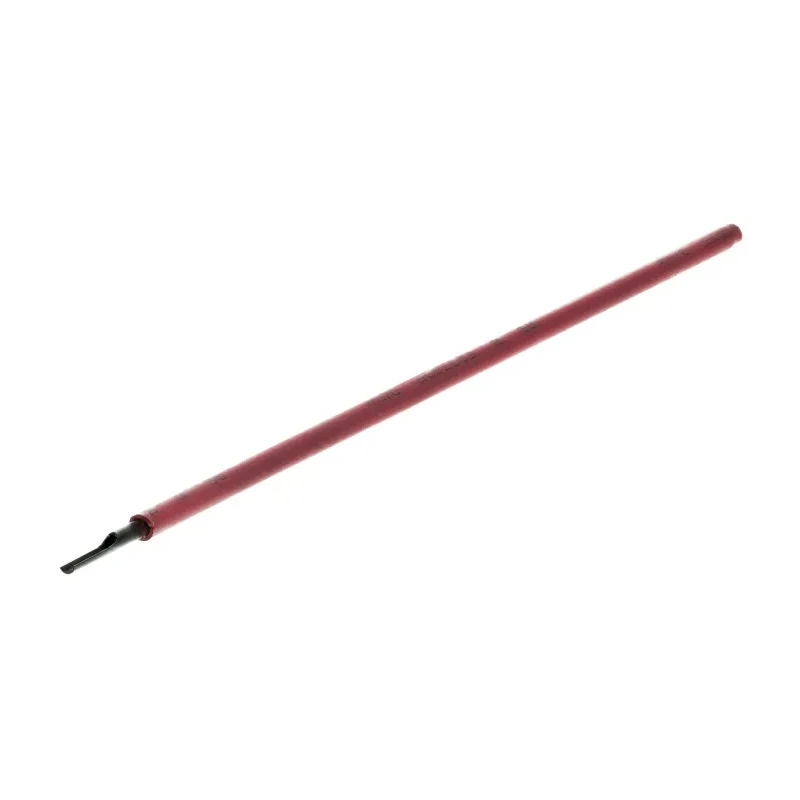

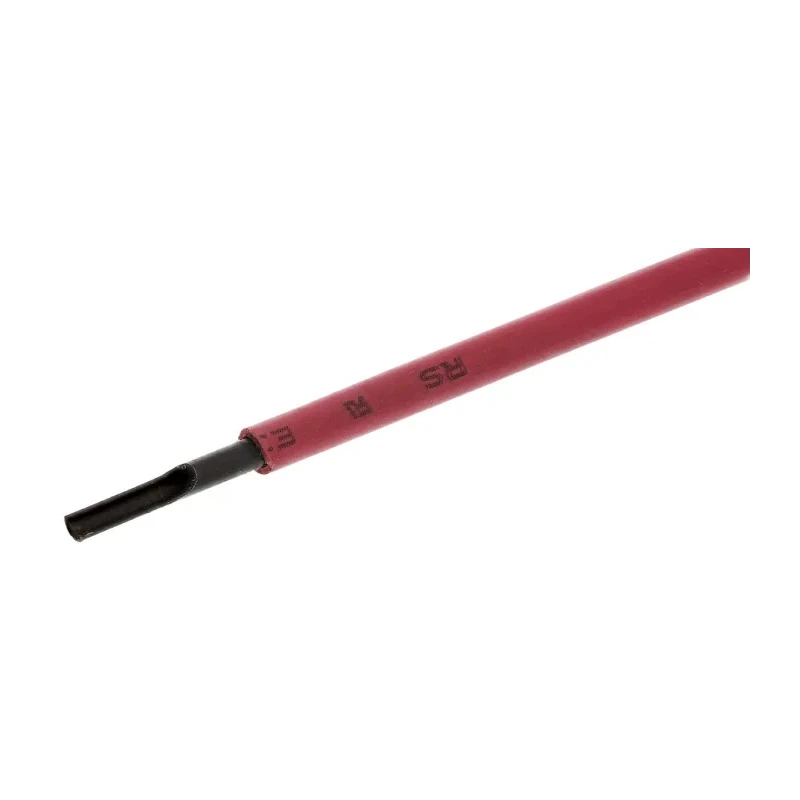

Molex Insertion Tool HANDTOOL Series Crimp Contact Insertion Tool, Compatible with C-Grid III 69008-0140
Specifications
| Country of Origin | Netherlands |
|---|---|
| Brand | Molex |
| Housing | Polyphenylene Oxide |
| Current Rating | 3A max |
| Series | HANDTOOL |
| Sub Type | Insertion Tool |
| Contact Type | Crimp |
| For Use With | C-Grid III Pre-crimped Terminals |
| Contact Plating | Selective Gold over Nickel or Tin over Nickel |
| Insulation Material Headers | 15% Glass-filled Polyester (PBT) |
| Header Pin Size | 0.64 square mm |
| Recommended PCB Hole Diameter | 1mm |
Key Features
- Compatible with C-Grid III 90156, 90123, 90142, 90143, and 90160 series crimp housings.
- Constructed to insert crimp contacts with precision and ease.
- Suitable for use with phosphor bronze contacts plated with selective gold or tin.
- Recommended for wire size ranges 24-22 AWG or 28-26 AWG terminals.
- Manufactured in the Netherlands ensuring high-quality standards.
- Designed for industrial and commercial electronic applications.
- Ergonomic hand tool construction enhances user comfort during repeated use.
- Robust build suitable for commercial vehicles and consumer electronics assembly.
Product Description
Molex 69008-0140 Insertion Tool from the HANDTOOL Series is a specialized hand tool designed for inserting crimp contacts into C-Grid III pre-crimped terminals. This tool is integral for precise assembly in electronic and electrical manufacturing where reliable connections are critical.
The insertion tool is compatible with C-Grid III 90119 series female crimp terminals and the wide range of mating crimp housings including 90156, 90123, 90142, 90143, and 90160 series. The contacts feature a box design combined with a uniform locking system, facilitating ease of use across different housing styles.
Manufactured using phosphor bronze with options of selective gold over nickel or tin over nickel plating, the contacts inserted using this tool ensure high conductivity and corrosion resistance. The tool supports wire sizes from 24-22 AWG and 28-26 AWG, making it versatile for various cable gauges.
Applications of this insertion tool span consumer electronics assembly, commercial vehicle manufacturing, and other industrial sectors requiring robust electrical connections. The Netherlands manufacturing origin guarantees adherence to stringent quality controls.
The HANDTOOL Series insertion tool provides ergonomic handling for comfortable operation during repetitive use. Its design is optimized to improve productivity and maintain connection integrity during assembly processes.
Compatible with multiple C-Grid III crimp terminal series. Facilitates precise and secure crimp contact insertion. Supports wire sizes 24-22 AWG and 28-26 AWG. Phosphor bronze contact compatibility with selective plating.
Durable construction suitable for industrial use. Ergonomic design enhances user comfort in manufacturing environments. Manufactured in the Netherlands with high-quality standards.
Explore similar insertion and extraction tools within the Industrial Tools & Equipment category on EnvMart to find complementary products for your assembly line and maintenance needs.
Explore more products in our Insertion & Extraction Tools category.
