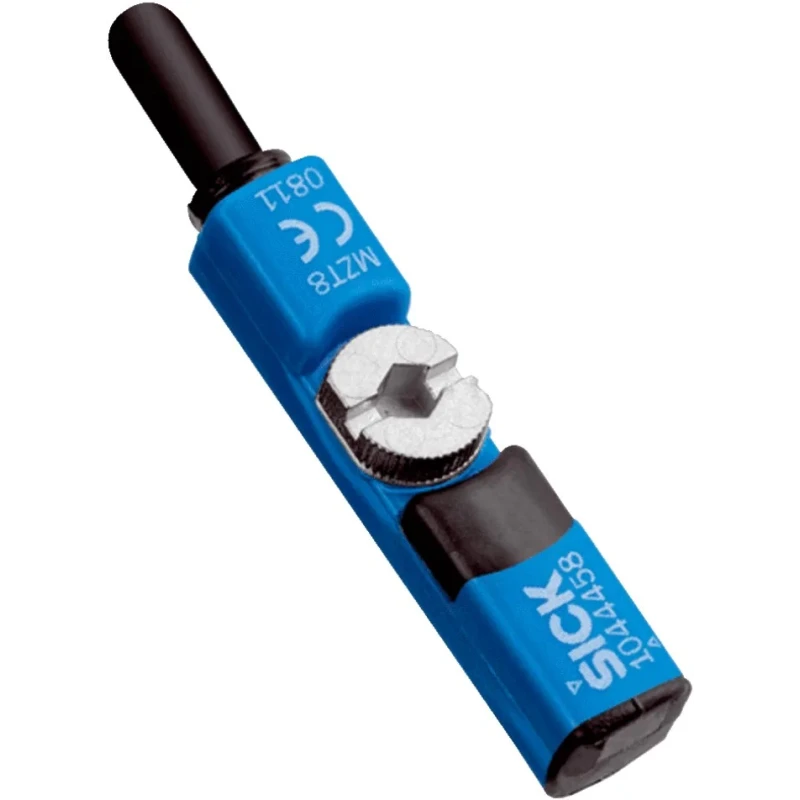

SICK Pneumatic Sensor T-Slot Construction Magnetic Cylindrical Sensor 30V DC IP68 LED Indicator MZT8-03VPSAKP0

The SICK MZT8-03VPSAKP0 pneumatic sensor is a magnetic cylindrical sensor designed for use with T-slot pneumatic cylinders offering reliable piston position detection. Operating at 30V DC, this sensor comes equipped with an LED indicator enabling straightforward status checks and supports an output function of normally open (NO) with PNP switching action. The housing material is plastic, specifically polyamide 12, known for its durability and chemical resistance.

This sensor is engineered to withstand harsh industrial environments with an IP68 protection rating, guaranteeing resistance against dust ingress and prolonged immersion in water. Additional enclosure options include IP67 and IP69K for even more demanding conditions. It operates effectively within a temperature range from -30°C to 80°C, with available high-temperature variants enduring temperatures up to 100°C.

Installation is fast and convenient; the sensor inserts into the cylinder’s T-slot from above and secures quickly using a combined fixing screw accommodating both hexagon socket and slotted screwdrivers. Its compact housing is ideal for use in short stroke cylinders and ensures minimal interference with cylinder movement.

Incorporating patented GMR technology along with proprietary SICK ASIC, the sensor achieves precise switching at the first attempt, suppressing multiple switching operations. This technology increases machine output and reduces maintenance requirements by providing consistent, dependable piston position feedback.

Applications for this sensor span multiple industries including machine building, automotive production, handling and assembly technology, metalworking, electronics and solar industries, as well as consumer goods manufacturing. It is widely used for monitoring clamping cylinders, end position detection on pneumatic cylinders, cylinder final positions, gripper state, presence and position of trays, tilting devices, and indexing stations.

The product is manufactured in Hungary and complies with EN 60947-5-2 standards. It does not have hazardous area certification but delivers excellent performance in industrial pneumatic systems requiring precise feedback and high durability.

This sensor is designed for standard cylinders, linear slides, and grippers using the T-slot system. Features include a plastic housing made of polyamide 12 and a robust LED indicator for operational status. It provides PNP output with normally open (NO) switching function ensuring precise piston position detection.

The sensor supports operating temperatures from -30°C to 80°C, with high-temperature variants enduring up to 100 °C. Enclosure ratings include IP67, IP68, and IP69K providing excellent protection against dust and water ingress.

Quick mounting is facilitated by combined fixing screws compatible with Allen keys or flat-head screwdrivers. Patented GMR technology and SICK ASIC deliver accurate switching performance, reducing machine downtime. It is suitable for applications in automotive, metalworking, electronics, handling and assembly, and consumer goods industries.

Its robust construction resists shock and vibration, minimizing sensor movement within the slot for reliable operation. Explore our wide range of Pneumatic Sensors and related pneumatic cylinder sensors at EnvMart for your industrial, manufacturing, and automation needs.
