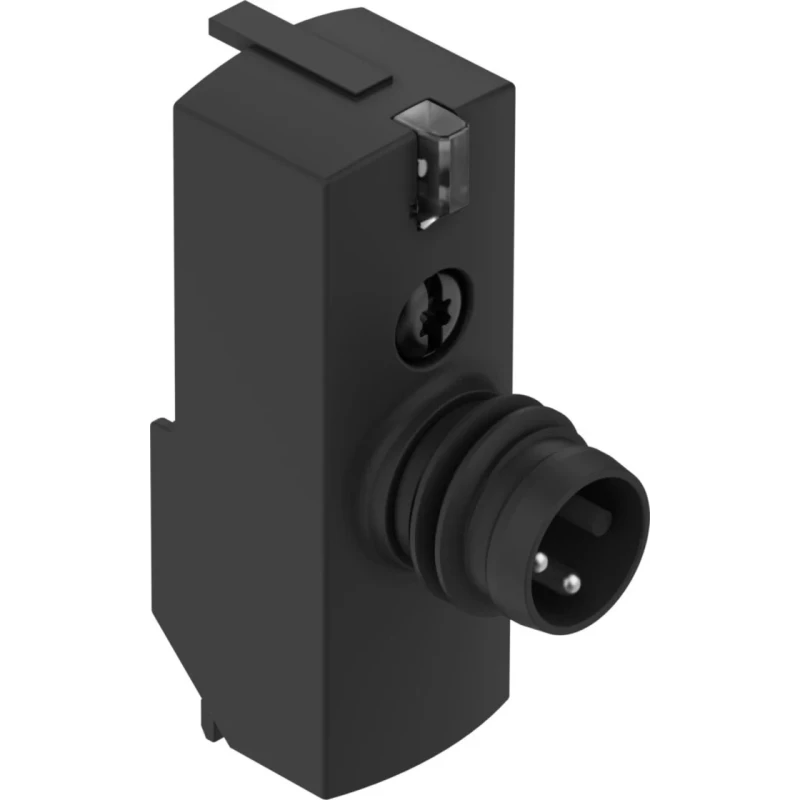

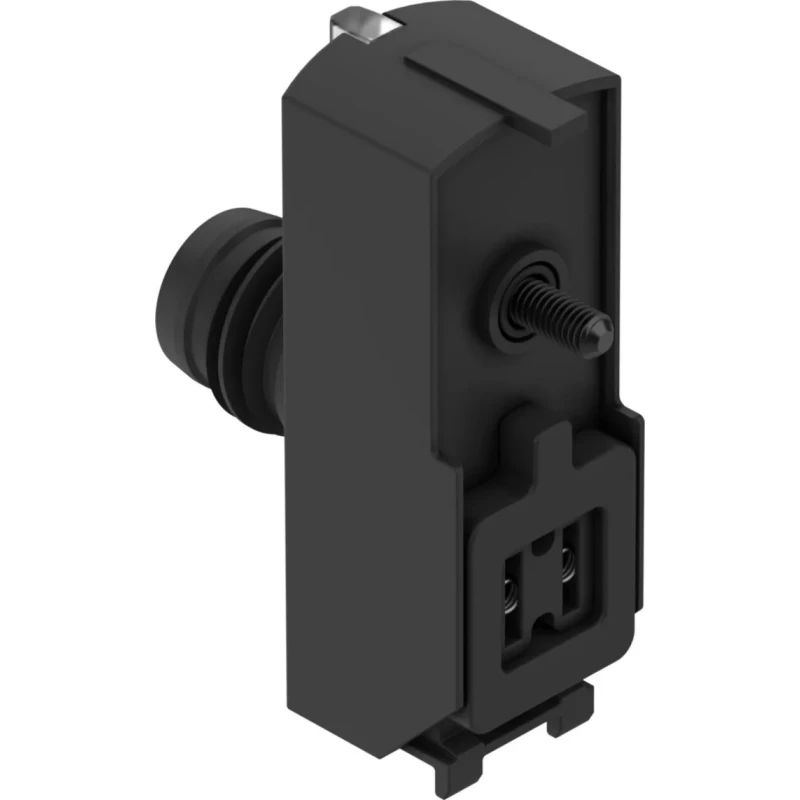

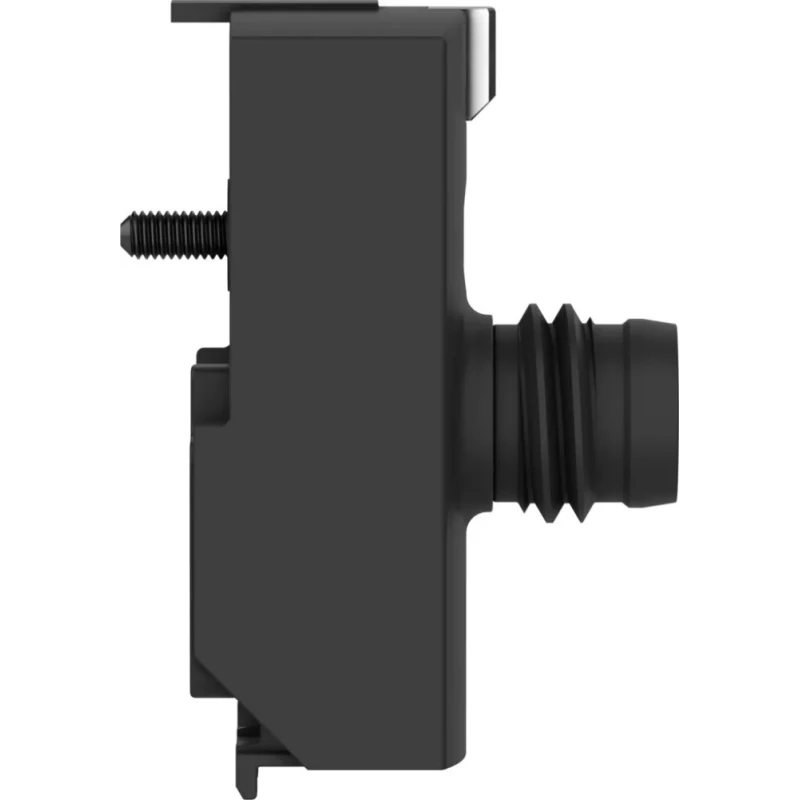

Festo VAVE series 1 station Metric Sub-Base for use with Valves with F solenoid coils VAVE-L1-1VR8-LP

Festo VAVE-L1-1VR8-LP is a Metric Sub-Base from the VAVE series, designed specifically as a single station base to mount solenoid coils with F type electrical connections. Its polyamide body ensures durability and chemical resistance, making it ideal for industrial control and automation systems.

This sub-base supports solenoid valves with M8 metric thread connections and is fixed to the valves by a self-tapping screw mechanism for reliable mechanical stability.

The unit operates on a nominal DC12V power supply, featuring reverse-polarity protection to prevent damage from incorrect wiring. Its IP65 rating safeguards the electrical connections against ingress of dust and water, ensuring longevity in harsh operational environments.

Additional robustness is provided by spark arresting features that reduce ignition risks and a bipolar surge immunity of 0.8 kV enhancing electrical resilience during switching operations.

The sub-base includes an LED signal status display for quick visual confirmation of coil activity, improving maintenance efficiency.

It is optimized for use with pneumatic valve islands and suitable for retrofit replacement applications where metric threaded sub-bases are required. The operating temperature range from -5°C to 60°C suits typical factory and plant installations, while the CRC2 corrosion classification ensures moderate resistance to corrosive atmospheres.

The electrical interface supports both 3-pin and 2-pin configurations with an M8 connection format for versatile installation scenarios. Designed for single-station use with M8 metric thread connections. Polyamide body provides lightweight and chemical-resistant housing.

Self-tapping screw fixation ensures secure mounting to solenoid valves. Rated for DC 12V operation with reverse-polarity protection. IP65 rated for dust and water protection in industrial environments. Equipped with LED signal status indicator for immediate visual feedback.

Suitable for pneumatic valve islands and retrofit replacements. Operating temperature range from -5°C to 60°C for factory and plant environments. Moderate corrosion resistance classified as CRC2 for industrial robustness.

This sub-base is a reliable component for industrial automation, pneumatic valve control systems, and other manufacturing and plant operations requiring robust electrical connections for solenoid valves.
