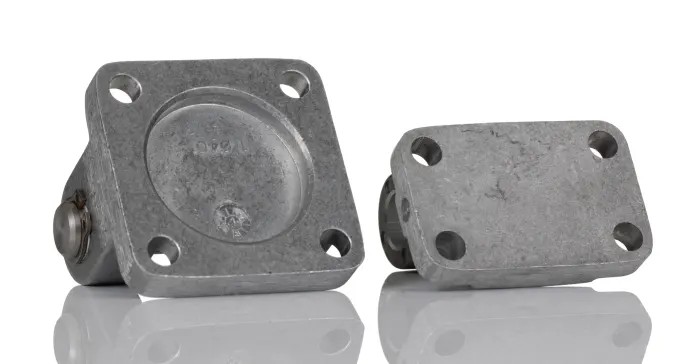

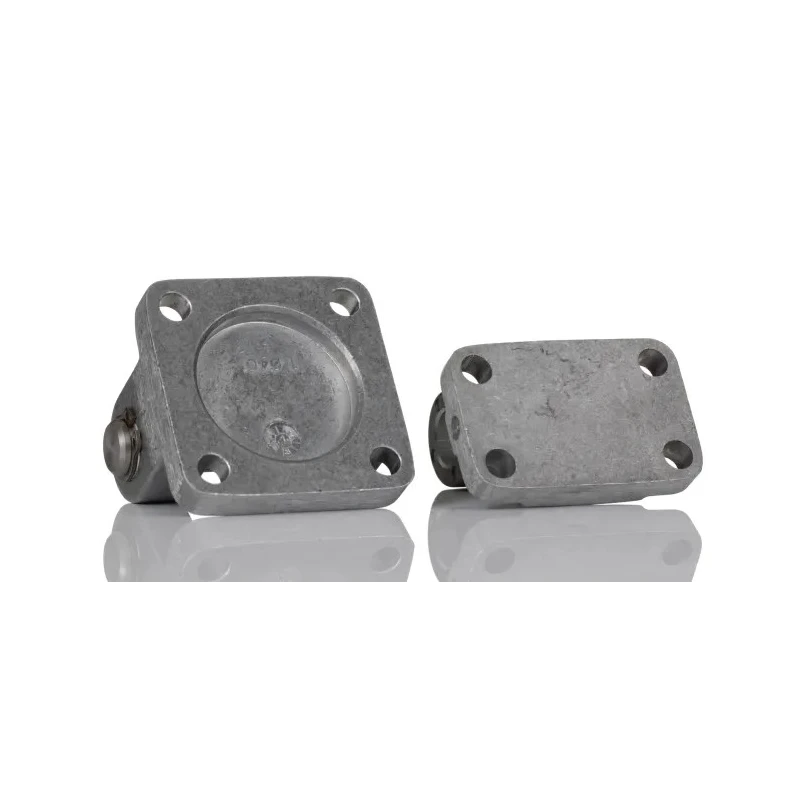

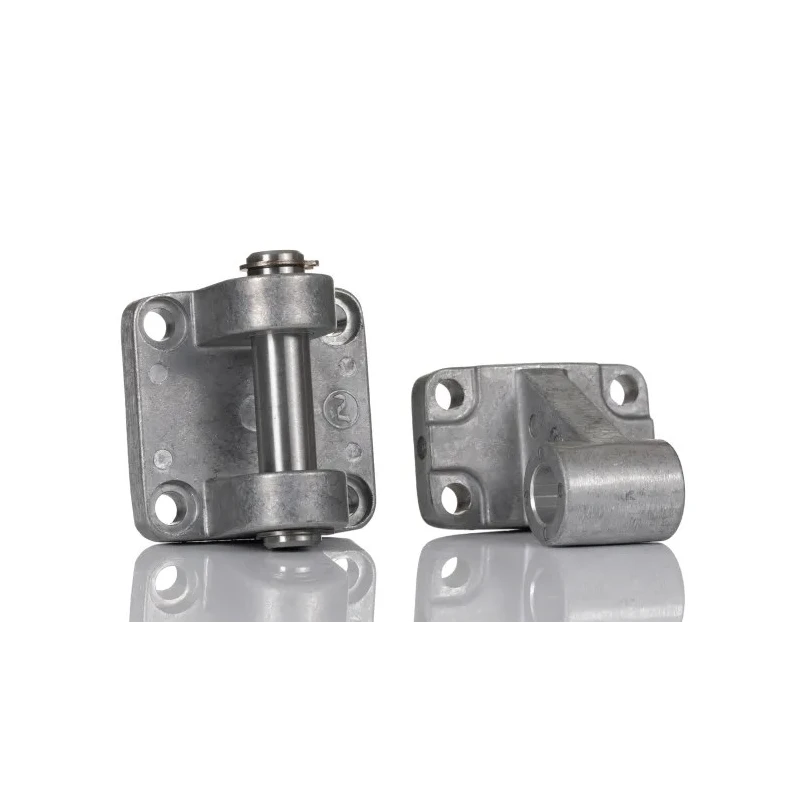

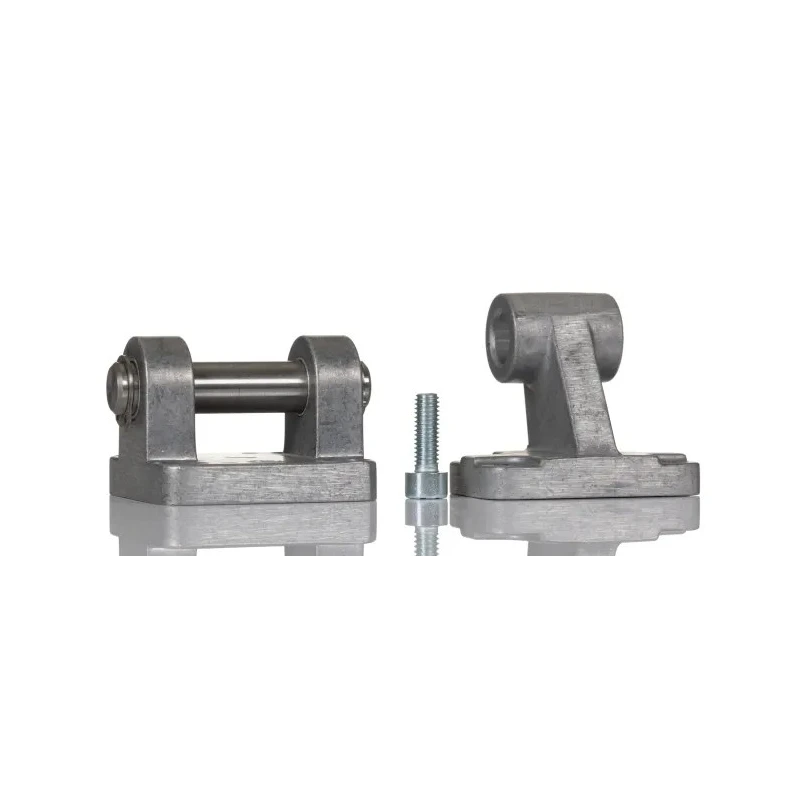

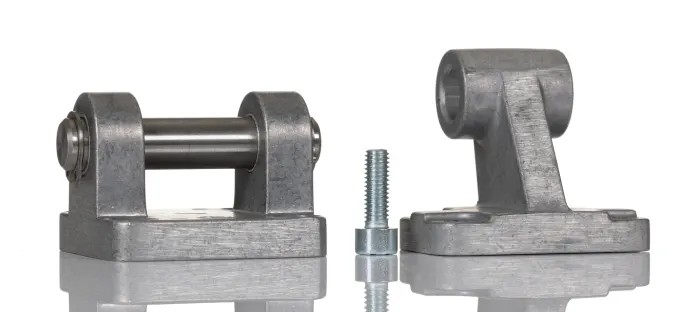

Norgren Rear Hinge For Use With Guide Blocks QA/8040/24
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Norgren |
| Model | QA/8040/24 |
| Series | PRA/182000 |
| Kit Contents | Supplied Complete With Piston Rod locknut |
| For Use With | Guide Blocks |
Key Features
- Compatible with Norgren QA series pneumatic profile cylinders.
- Allows 90° hinge movement for versatile cylinder positioning.
- Operates effectively within pressure range of 1 to 16 bar.
- Features four recessed pre-drilled holes on each plate for flush screw fitting.
- Withstands operating temperatures from -20°C to +80°C for demanding environments.
- Comes supplied complete with piston rod locknut for secure assembly.
- Manufactured in Germany ensuring quality and compliance to standards.
- Meets VDMA 24562, NFE 49-003-1, and ISO 6431 standards.
Product Description
Norgren QA/8040/24 rear hinge is engineered for reliable mounting of pneumatic profile cylinders with a 40mm bore from the QA series. This rear hinge assembly from IMI Norgren features two connected plates enabling a 90° pivoting motion for optimal positioning of the attached cylinder in various industrial and manufacturing environments.
The hinge supports a wide operating pressure range from 1 bar to 16 bar, allowing its use in both low and high-pressure pneumatic applications. Four pre-drilled, recessed holes on each plate allow screws to fit flush, preventing snagging and ensuring a smooth installation on any flat surface.
Manufactured to high standards including VDMA 24562, NFE 49-003-1, and ISO 6431, this rear hinge ensures compliance and durability. Built to tolerate operating temperatures from -20°C to +80°C, it is suited for harsh and demanding industrial environments.
This product comes complete with a piston rod locknut ensuring secure fastening of pneumatic cylinders. Originating from Germany, it embodies quality manufacturing standards required in automated manufacturing systems, agricultural machinery, and construction industry applications.
Compatible with Norgren QA series pneumatic profile cylinders. 90° hinged movement for flexible positioning. Broad operating pressure range of 1 to 16 bar. Flush fitting of screws to avoid snagging. Wide operating temperature range from -20°C to +80°C.
Supplied with piston rod locknut for secure assembly. Conforms to VDMA 24562, NFE 49-003-1, and ISO 6431 standards. Manufactured in Germany for assured quality. Fit for industrial automation, agriculture, and construction industries.
Explore more pneumatic cylinder and actuator accessories in EnvMart for enhanced industrial system configurations.
Explore more products in our Pneumatic Cylinder & Actuator Accessories category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rear hinge operates effectively within a pressure range of 1 to 16 bar, making it suitable for both low and high-pressure pneumatic applications.
It can withstand operating temperatures ranging from -20°C to +80°C, making it suitable for demanding industrial environments.
The hinge features four recessed pre-drilled holes on each plate for flush screw fitting, which prevents snagging during installation.
This rear hinge is compatible with Norgren QA series pneumatic profile cylinders, specifically designed for those with a 40mm bore.
It comes supplied complete with a piston rod locknut to ensure secure assembly of the pneumatic cylinder.
This product conforms to VDMA 24562, NFE 49-003-1, and ISO 6431 standards, ensuring compliance and quality.
This rear hinge is manufactured in Germany, ensuring adherence to high manufacturing standards.
The hinge is designed to allow 90° hinge movement, providing versatile positioning of the attached pneumatic cylinder.
It is suitable for applications in industrial automation, agriculture, and construction industries.
The model number of this rear hinge is QA/8040/24, which identifies it within the Norgren product line.
The recessed pre-drilled holes allow for a smooth installation on any flat surface, enhancing ease of use.
It is engineered for reliable mounting of pneumatic profile cylinders in various industrial and manufacturing environments.
