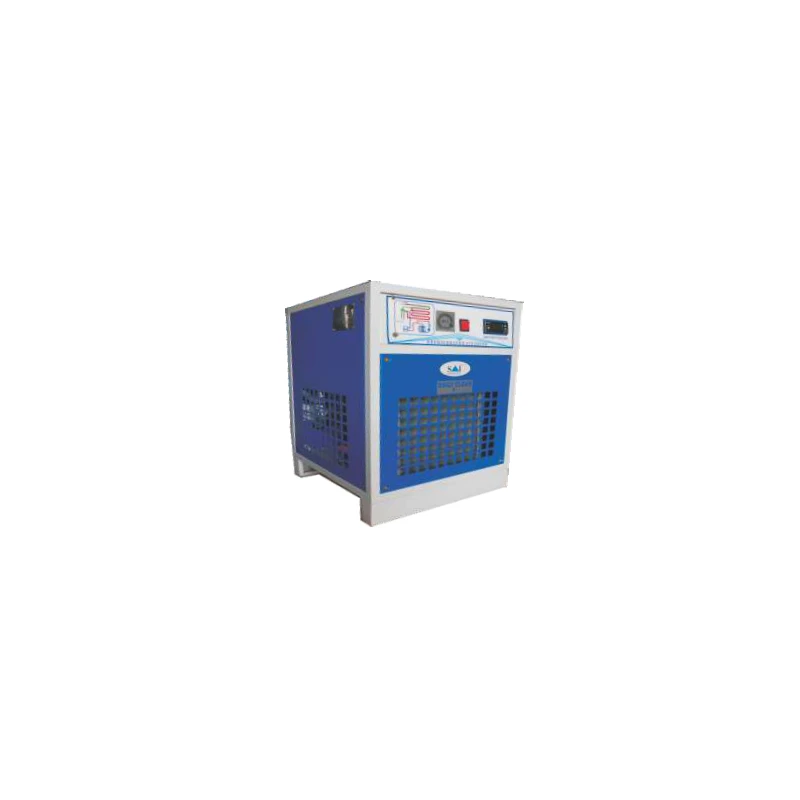

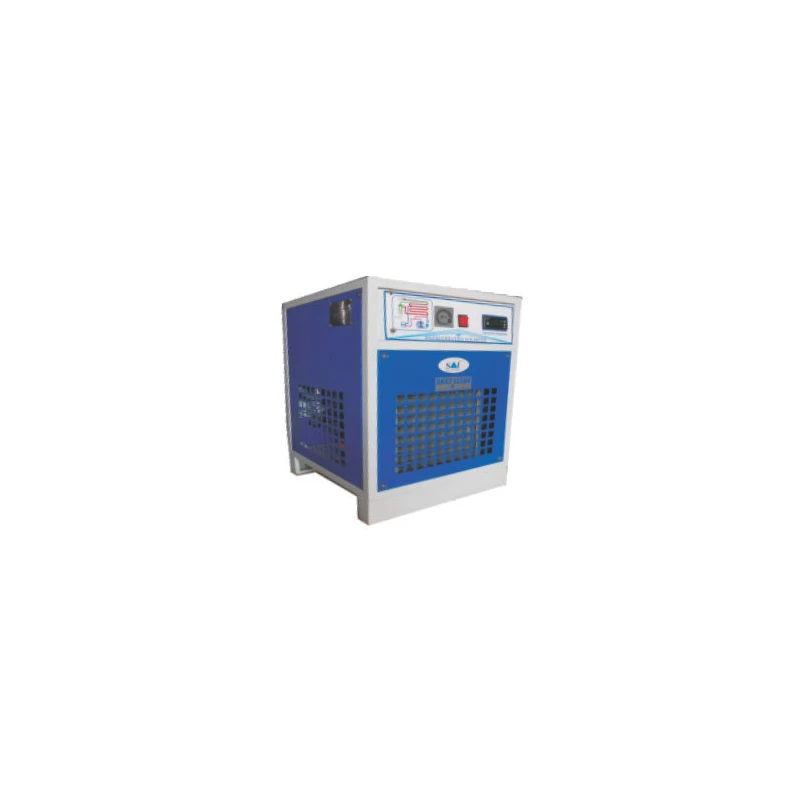

Refrigerated Air Dryer 2 HP
Specifications
| Applications | Industrial |
|---|---|
| Voltage (V) | 220V/50Hz |
| Minimum Order Quantity | 1 Piece |
| Operating Pressure | 1 to 10 Kg/cm2g |
| Air Capacity | 50 to 300 NM3/Hr |
| Dew Point | Up to (-) 25 deg C |
| Dryer Technology | In-Line |
| Dryer Power (HP) | 2 HP |
| Drying Capacity | 51 - 120 cfm |
| Minimum Output Dew Point | -30 C |
Key Features
- Consist of an air-to-freon cooler
- Auto Drain Valve Provided for cyclone Separator Low Pressure
- Compact design
Product Description
Refrigerated dryer are general purpose dryers, most economical being less running cost. refrigerant systems is environmentally friendly in nature. Refrigeration dryer remove moisture from compressed air to the desired dew point temperature. For greater air drying capacity, we offer refrigerated air dryers with air capacities typically above 500 NM3/h. This is a skid-mounted unit consisting of an air-to-freon cooler, an air-to-air precooler, and a moisture separator. The air is first pre-cooled to about 25C with cold air and then cooled to a temperature of (+)3C in a Freon cooler, thus reducing power consumption. The discharged dry air has a dew point of (+)3C and is discharged at a temperature of approximately 25C as a dew point of (+)3C corresponds to a dew point of approximately (-)25C at atmospheric pressure will be pressure.
- Running cost is very low Hot Gas by-pass circuits for partial load Maintains Constant Pressure Dew Point
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The air capacity of this model ranges from 50 to 300 NM3/Hr.
This refrigerated air dryer can achieve a dew point of up to (-) 25 degrees Celsius.
The operating pressure for this unit is between 1 to 10 Kg/cm2g.
This refrigerated air dryer has a power rating of 2 HP.
It operates at 220V/50Hz.
The drying capacity of this refrigerated air dryer ranges from 51 to 120 CFM.
This model utilizes In-Line dryer technology for moisture removal.
Yes, this unit is equipped with an auto drain valve for the cyclone separator.
The specific dimensions of this model are not provided in the available data.
Yes, it is designed for industrial applications.
The minimum output dew point for this refrigerated air dryer is -30 degrees Celsius.
It features a compact design that includes an air-to-freon cooler and a moisture separator.
