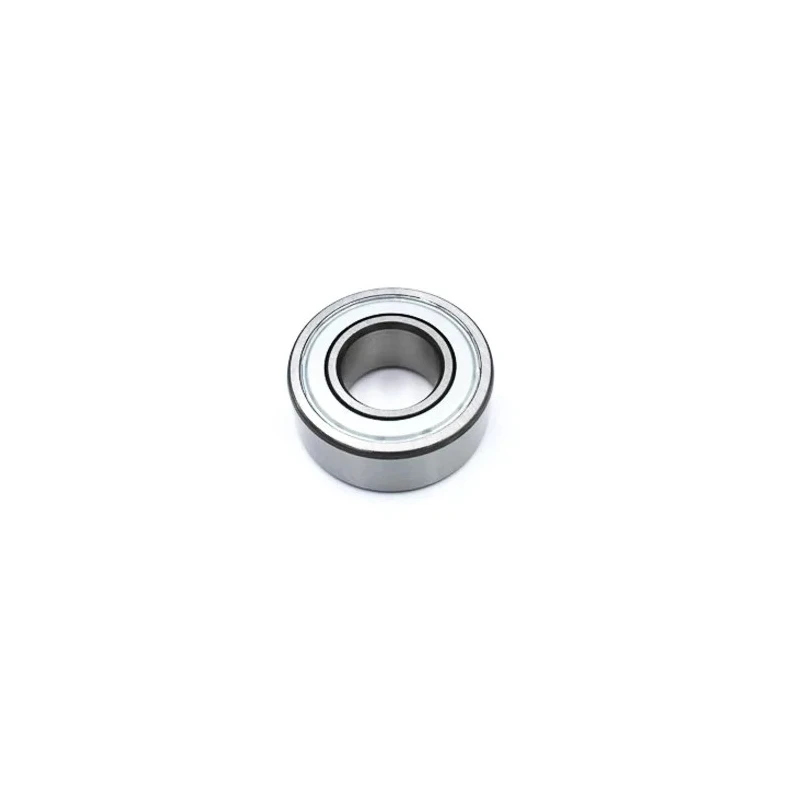

FAG Double Row Angular Contact Ball Bearing 5 mm ID, 14 mm OD, 7 mm Race Width 30/5-B-2Z-TVH-HLC

Free Delivery in India | Lowest Global Shipping Charges

FAG Double Row Angular Contact Ball Bearing 5 mm ID, 14 mm OD, 7 mm Race Width 30/5-B-2Z-TVH-HLC



Category Rotary Bearings & Housing Units Brand FAG Condition New

Specifications

Country of Origin	India
Brand	FAG
Model	30/5-B-2Z-TVH-HLC
Series	0 Extra Light
Outside diameter	14mm
Inside Diameter	5mm
Number of Rows	2
Ball Material	Steel
Limiting Speed	51000rpm
Internal Clearance	CN
End Type	Shielded
Bore Type	Parallel
Bearing Type	Double Row Angular Contact Ball
Cage Material	Steel
Race Width	7mm
Static Load Rating	940N
Race Type	Plain
Dynamic Load Rating	1.78kN
Contact Angle	25°

Key Features

5 mm inside diameter and 14 mm outside diameter provide compact dimensions.
7 mm race width supports durability in high load conditions.
Steel cage and ball materials ensure rigidity and wear resistance.
Shielded end type limits contamination to extend bearing life.
Two-row angular contact design manages combined radial and axial loads effectively.
25° contact angle improves axial load handling for compact designs.
Limiting speed up to 51,000 rpm supports high-speed rotation.
Dynamic load rating of 1.78 kN extends operational life under cyclic loads.

Product Description

FAG 30/5-B-2Z-TVH-HLC double row angular contact ball bearing with 5 mm inside diameter, 14 mm outside diameter, and 7 mm race width is engineered for miniature high-speed assemblies and precision equipment.

This bearing features a steel cage and balls for excellent rigidity and wear resistance, shielded ends to minimize contamination, and a 25° contact angle that enhances axial load capacity. The double row angular contact design allows it to effectively handle combined radial and axial loads within confined spaces. With a limiting speed of 51,000 rpm, it supports high-speed rotational applications.

The bearing offers a dynamic load rating of 1.78 kN for extended operational life under cyclic loading and a static load rating of 940 N to resist deformation during stoppages. CN internal clearance ensures minimal axial play, facilitating precise shaft positioning. Its parallel bore configuration is designed for either slip-fit or press-fit mounting depending on housing and shaft tolerances.

Suitable for a range of industrial uses, including spindle drives in miniature motors, precision automation stages in electronics assembly, rotary encoders requiring tight axial control, compact gearboxes in electrical actuators, and instrumentation demanding low-profile bearings.

5 mm inside diameter and 14 mm outside diameter provide compact dimensions. 7 mm race width supports durability in high load conditions. Steel cage and ball materials ensure rigidity and wear resistance. Shielded end type limits contamination to extend bearing life.

Two-row angular contact design manages combined radial and axial loads effectively. 25° contact angle improves axial load handling for compact designs. Limiting speed up to 51,000 rpm supports high-speed rotation. Dynamic load rating of 1.78 kN extends operational life under cyclic loads.

Static load rating of 940 N resists deformation during stoppage. CN internal clearance minimizes axial play for precise shaft positioning. Parallel bore type suitable for slip-fit or press-fit installation. Explore more ball bearings and related rotary bearing units on EnvMart for comprehensive industrial solutions.
