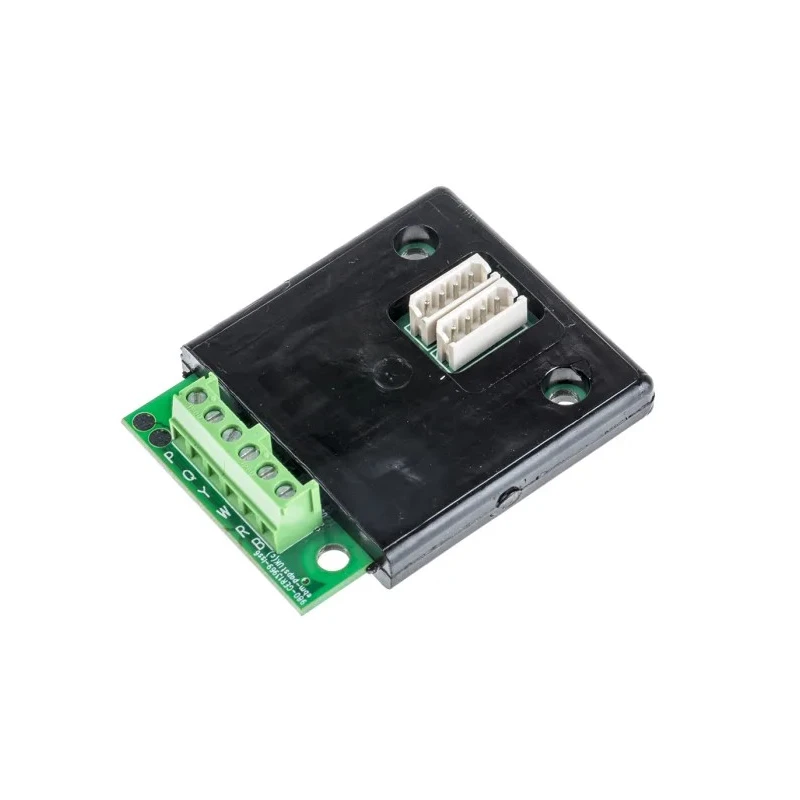

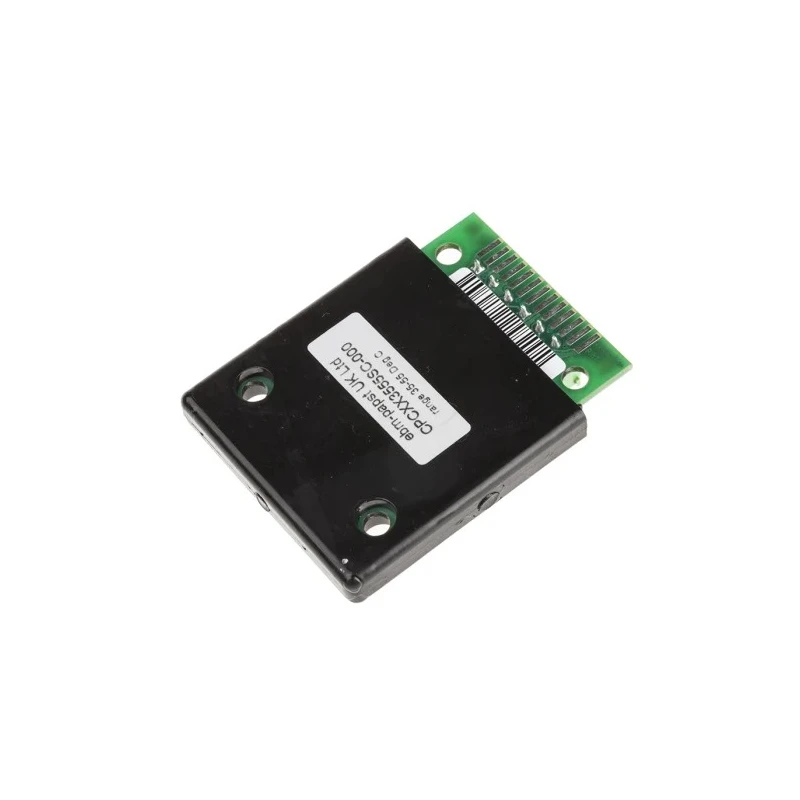

ebm-papst CGC Series Fan Speed Controller for Use with EC and DC Fans, 4 mA Max Current, 57V DC, Variable Speed CGCXX00000

ebm-papst CGCXX00000 Fan Speed Controller offers a configurable and programmable solution designed for industrial HVAC and cooling applications using ebm-papst EC and DC fans.

This controller regulates fan rotational speed by accepting inputs from temperature sensors such as NTC thermistors or 0-10 V voltage signals, and outputs pulse width modulation signals according to a programmable profile. Users can modify input source types, fan speed response curves, and alarm thresholds through an intuitive Graphical User Interface (GUI) software.

The controller supports a maximum current of 4 mA and operates with supply voltages up to 57V DC, making it suitable for a wide range of fan control applications in industrial, commercial, and laboratory environments. Its design enables rapid and cost-effective customization to specific application needs, including alarm monitoring and custom speed profiles.

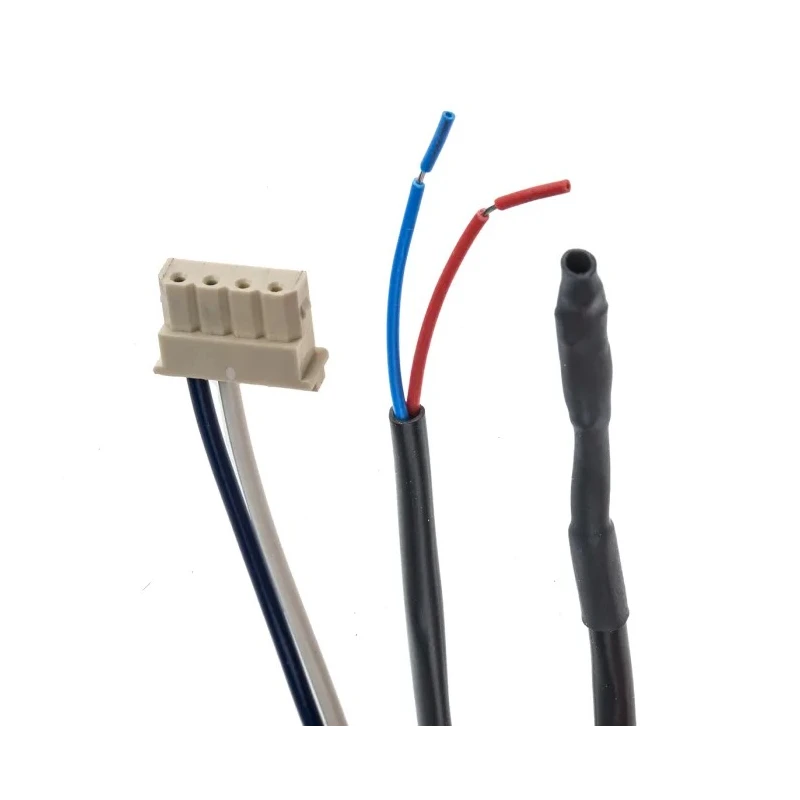

Included with the product are thermistor, configuration, and alarm leads, facilitating straightforward integration and quick prototyping. The CGC controller’s versatility allows powering directly from an EC fan output or a separate power supply, increasing installation flexibility.

This device complies with RoHS standards and carries an IP0 rating, emphasizing adherence to industry environmental compliance and operational safety. The CGC series fan speed controller supports applications across HVAC systems, industrial process cooling, and thermal management solutions.

Supports variable speed settings via pulse width modulation output configuration. Compatible with ebm-papst EC and DC fans accepting 0-10 V or PWM inputs. Equipped with programmable profiles for custom input/output response using GUI software.

Includes thermistor, configuration, and alarm leads for plug and play operation. Allows setting of high and low alarms with alarm indication and monitoring functions. Powered directly from 10 V output of EC fan or up to 57 V from separate power supply.

IP0 rated with RoHS compliance ensuring environmental safety standards. Provides cost-effective development platform reducing design time and resources. Explore more Fan Accessories and controllers at EnvMart to support your industrial and HVAC system requirements.
