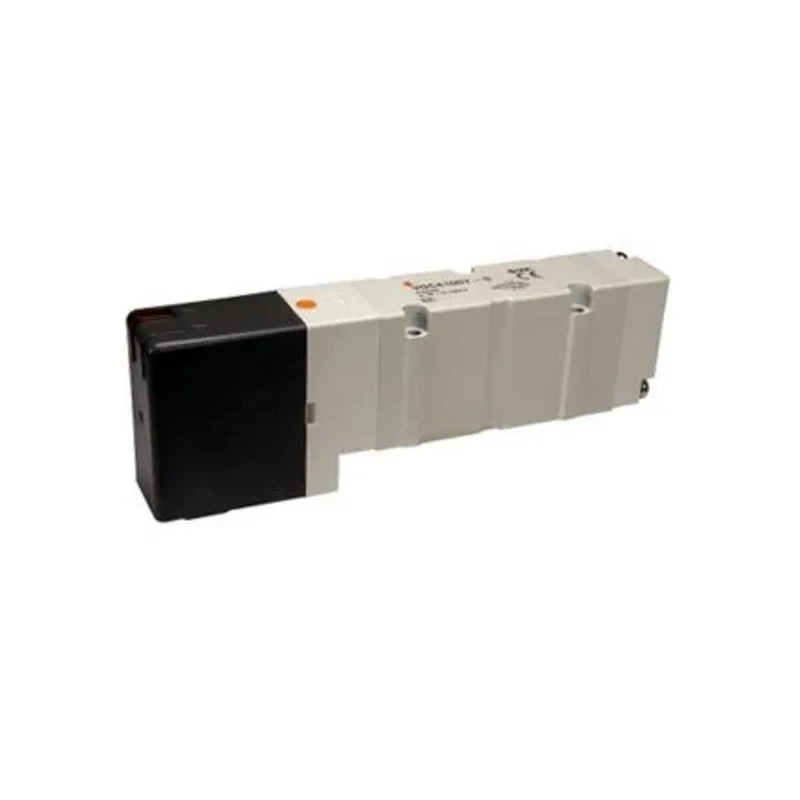

SMC Pneumatic Solenoid Pilot-Operated Control Valve 3/3 Solenoid M5 x 0.8 VQC4000 Series 24V DC

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Pilot-Operated Control Valve 3/3 Solenoid M5 x 0.8 VQC4000 Series 24V DC



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	0.7 Mpa
Height	163mm
Length	209mm
Model	VQC4000
Enclosure	dust proof (conforms to IP67)
Operating Pressure	1.0MPa [0.7MPa (low wattage)]
Width	101.2mm
Mount Type	Base
Series	VQC4000
Number Of Ports	5
Maximum Operating Temperature	50°C
Port Type	Cylinder, EXH, PE, Support
Number of Positions	3
Port Size	M5 x 0.8
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Fluid	air/inert gas
Standards/Approvals	RoHS
Connection Thread Standard	M5 x 0.8
Minimum Pilot Pressure	0.15MPa
Valve Function	3/3
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.4W
Effective area (Cv)	1.7 metal seal, 2.0 rubber seal

Key Features

The valve features a 5-port base mount with M5 x 0.8 female threaded connections.
Operates at 24V DC with a solenoid power consumption of 0.4W.
Constructed from die-cast zinc body with a rubber seal for durability and reliability.
Maximum operating pressure of 0.7 MPa and pilot pressures ranging from 0.15 MPa to 0.7 MPa.
Designed for temperature ranges from -10°C to 50°C with an IP67 dust-proof enclosure.
The valve has a 3-position function and effective flow area (Cv) of 1.7 metal seal and 2.0 rubber seal.
Complies with RoHS standards and is manufactured in Japan.

Product Description

SMC VQC4301-51 Pneumatic Solenoid Pilot-Operated Control Valve 3/3 Solenoid M5 x 0.8 VQC4000 Series 24V DC offers precise and reliable control for industrial pneumatic applications requiring effective air or inert gas flow management.

This valve features a 5-port configuration with female M5 x 0.8 threaded ports for easy connection to cylinders, exhaust, pilot exhaust, and support lines. The robust die-cast zinc body ensures long-term durability with a rubber seal to maintain operational integrity. Designed for a maximum operating pressure of 0.7 MPa, it supports pilot pressures between 0.15 MPa and 0.7 MPa.

Operating within a temperature range of -10°C to 50°C, the valve's solenoid coil functions at 24V DC with a low power consumption of 0.4W. The unit features a 3-position valve function, providing versatile control options with enhanced response times and long operational life.

The dust-proof enclosure conforms to IP67 standards providing protection against dust and moisture, making it suitable for harsh industrial environments. The effective flow area ensures efficient performance with Cv values of 1.7 for metal seals and 2.0 for rubber seals.

Ideal for use in pneumatic systems in manufacturing, automation, HVAC, water treatment, and other industrial sectors, this valve supports flexibility with multi-pin connectors and manifold block configurations for scalable system design.

The valve supports 5 ports for comprehensive pneumatic control. Compact and robust design suitable for various industrial settings. Low wattage solenoid reduces energy consumption. IP67 rated dust-proof enclosure increases reliability in harsh conditions.

Complies with RoHS environmental standards.

Manufactured in Japan, the SMC VQC4301-51 model ensures high-quality engineering and consistent performance. Explore more Pneumatic Solenoid Valves and pneumatic control devices in the SMC VQC4000 series on EnvMart.
