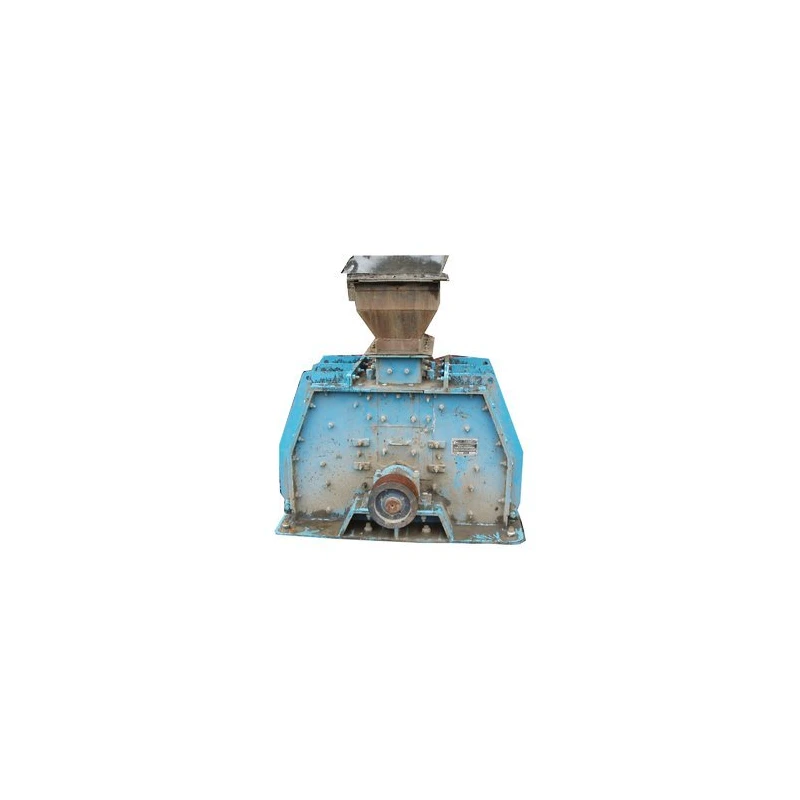

Reversible Impactor
Specifications
| Capacity | 55-260 TPH |
|---|---|
| Material | MS |
| Power | 110-440 kW |
| Voltage (V) | Up to 240 V |
| Minimum Order Quantity | 1 Unit |
| Weight | 10 -17.5 ton |
Key Features
- The frame of the impactor is made out of rolled steel plates with extra support in the from of ribs. Inside the frame are liners which are fixed with CSK bolts and are changed when worn out. This guards the frame from wear & tear.
- The breaker blocks & hammers are made out of cast aystenitic manganese steel of high grade which is abrasive resistant. The rotor shaft is made out of forged steel for maximum strength. The suspension disc and suspension bars are made out of alloy steel.
Product Description
Reversible Impactor The reversible impactor is one of the most versatile crusher ever designed, used fo crushing various types of materials ranging from friable minerals to hard rocks. They offer high capacities and produce well graded products. They achieve high reduction roll of around 36:1 or higher. These type of crushers hove few ports to maintain/ replace which are easily changeable. It is used for secondary & tertiary crushing of stone, limestone, minerals, ores, chemicals & fertilizers etc.Easy Maintenance:The design of the impactor is such that the frame can be unlocked in a few minutes, to change the various spores inside the rotor assembly.The impactor is sectionalized so that rotor can be removed without disturbing the feed chute or overhead feeder. The impactor can be daily inspected through the small access doors on both sides. Access doors also provide for removal of suspension bars so that hammer can be changed with the rotor in place.
