Festo HGL Series Non-Return Check Valve Nickel Plated Brass & Anodised Alloy, 10 bar, -10°C to 60°C, Model HGL-1/2-B

Category Non Return Valves Brand FESTO Condition New

Specifications

Country of Origin India
Brand Festo
Material Nickel Plated Brass, Anodised wrought Aluminium Alloy, Die Cast Zinc, Brass, Aluminium, POM, Nitrile Rubber (NBR)
Maximum Operating Pressure 10 bar
Model HGL-1/2-B
Series HGL
Maximum Operating Temperature 60°C
Sub Type Non-Return Check Valve
Minimum Operating Temperature -10°C
Minimum Operating Pressure 0.5bar
Inlet Port Gender Male, Female
Outlet Port Gender Female, Male

Key Features

  • Supports both male and female inlet and outlet port orientations for flexible assembly.
  • Constructed with nickel-plated brass and anodised aluminium for high corrosion resistance.
  • Works at minimum operating pressure of 0.5 bar enabling low-pressure applications.
  • Compliance with ISO 228-1 and ISO 1179-1 dimensional standards ensures compatibility.
  • Meets RoHS and ISO 8573-1 particulate standards for pneumatic system purity.
  • Ideal for pneumatic actuator circuits and compressed-air distribution lines.
  • Prevents backflow in automation panels and safety isolation in testing rigs.
  • Flow path materials selected for wear resistance and chemical compatibility with industrial gases.

Product Description

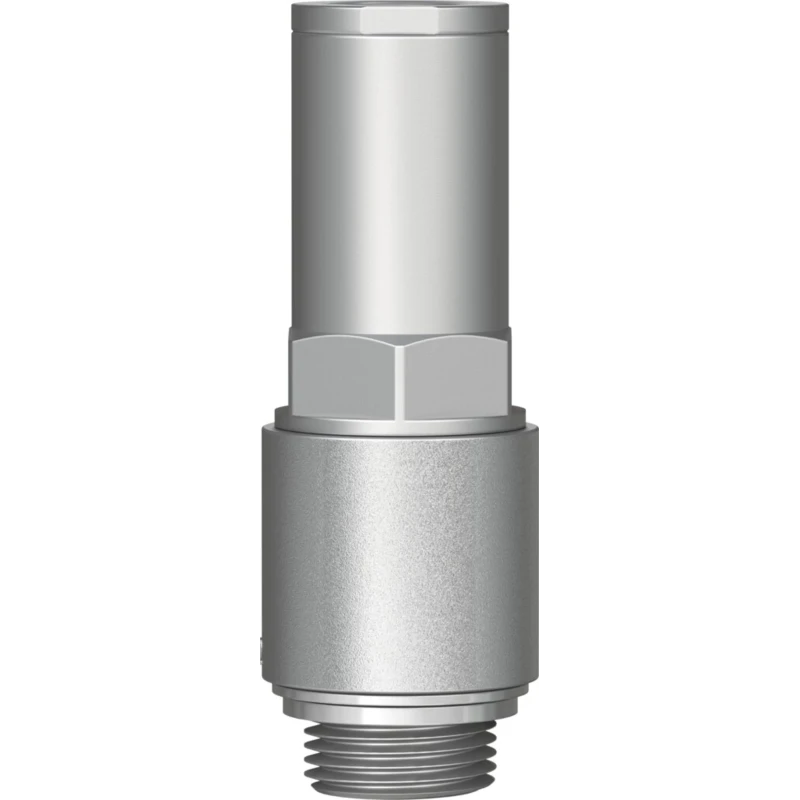

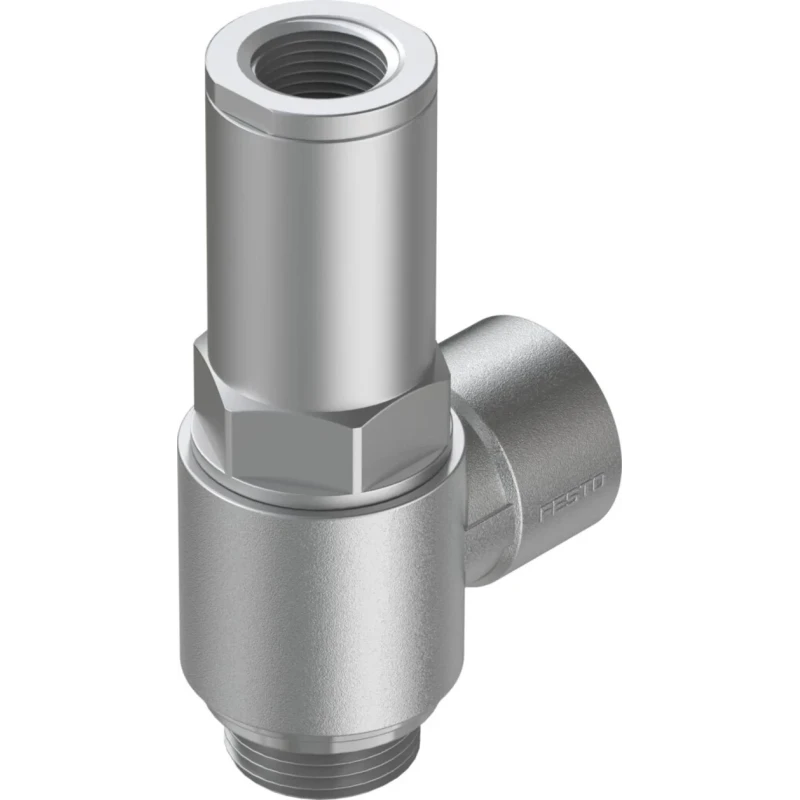

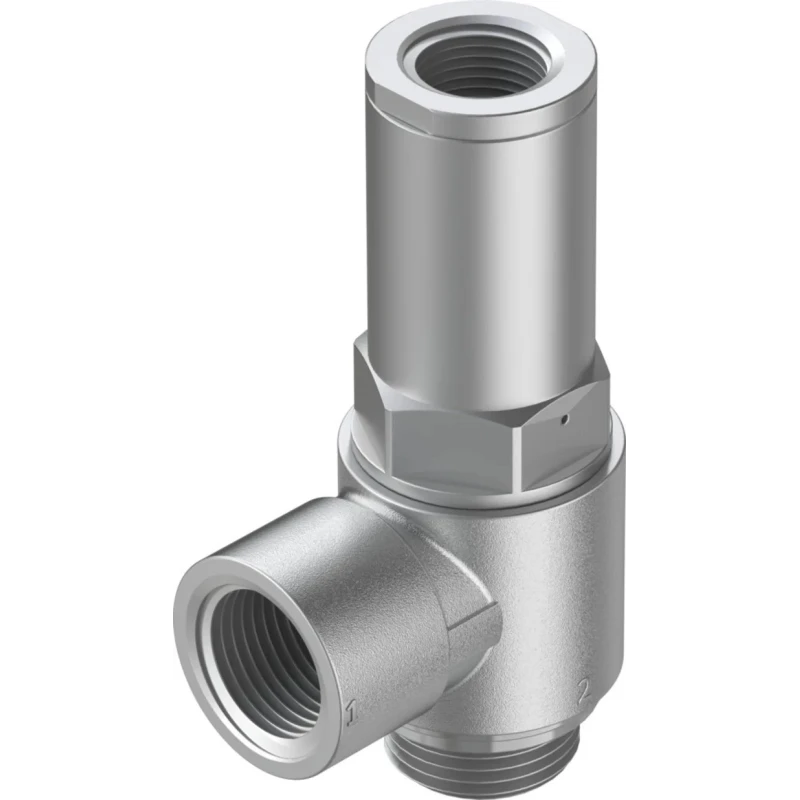

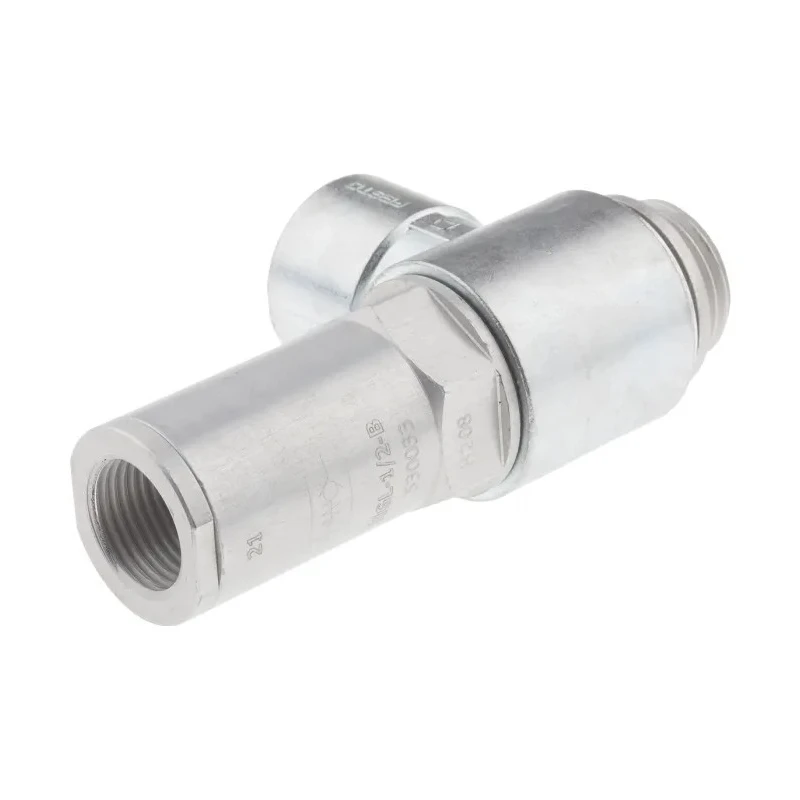

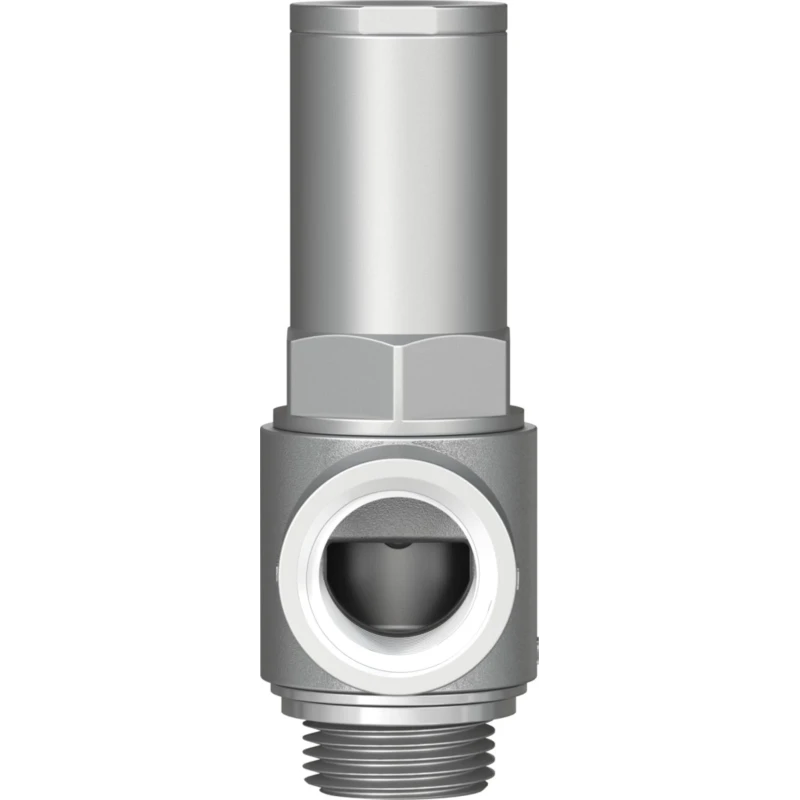

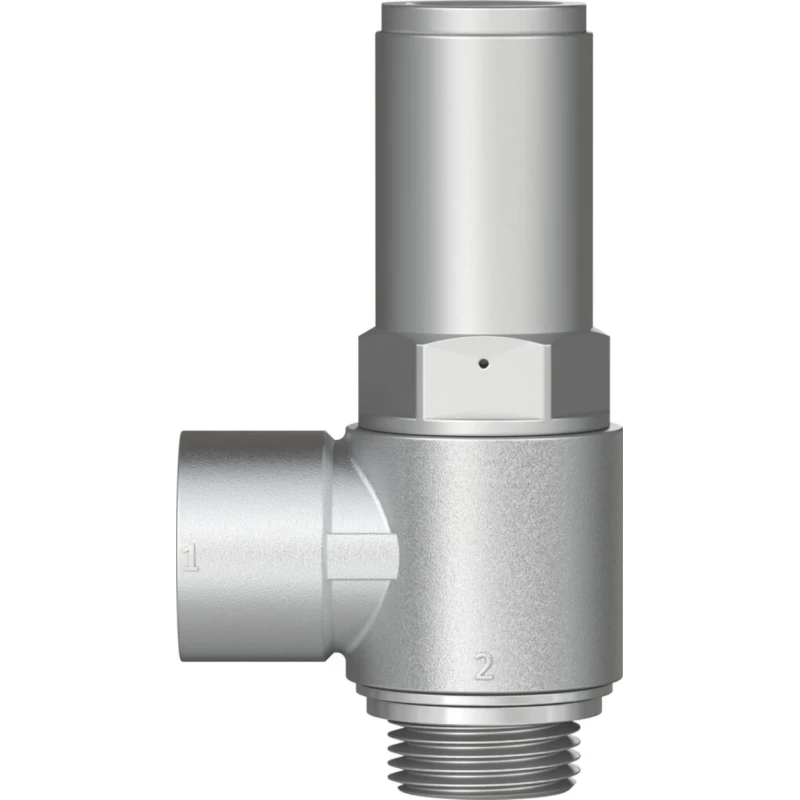

Festo HGL-1/2-B Non-Return Check Valve is designed for pneumatic systems where dependable prevention of backflow is critical. This valve supports a maximum operating pressure of 10 bar and a working temperature range from -10°C to 60°C, making it suitable for various industrial and automation applications. The versatile design accommodates both male and female inlet and outlet ports, facilitating straightforward inline or panel-mounted installations without additional adaptors.

Manufactured using nickel-plated brass and anodised aluminium alloy, along with POM and Nitrile Rubber components, the valve exhibits excellent corrosion resistance and mechanical durability. The selected materials ensure compatibility with compressed air and common industrial gases while balancing wear resistance for extended service life.

The valve complies with ISO 228-1 and ISO 1179-1 dimensional and thread standards, guaranteeing secure and standardized connections. It also adheres to RoHS directives and complies with ISO 8573-1 particulate classifications, supporting high levels of pneumatic purity and contamination control in the system.

This product is highly suitable for pneumatic actuator circuits, compressed-air distribution panels, and safety isolation applications in testing instrumentation. Its robust construction and adherence to international standards make it an ideal choice in industrial automation and mechanical fluid power systems.

Supports both male and female inlet/outlet ports for flexible installation. Corrosion-resistant nickel-plated brass and anodised aluminium construction. Capable of operating from 0.5 bar minimum to 10 bar maximum pressure.

Temperature range from -10°C to 60°C for versatile environment use. Conforms to ISO and RoHS standards for quality and safety. Maintains pneumatic purity per ISO 8573-1 classifications. Prevents backflow effectively in pneumatic systems.

Ideal for automation, testing rigs, and control valve protection.

Festo valves are widely used across multiple industries including manufacturing, automation, HVAC, and fluid power systems, providing reliable performance and system protection. Explore more Festo pneumatic function fittings and valves for comprehensive fluid control solutions.

Explore more products in our Non Return Valves category.

Festo HGL Series Non-Return Check Valve Nickel Plated Brass & Anodised Alloy, 10 bar, -10°C to 60°C, Model HGL-1/2-B
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating pressure of this check valve is 10 bar.

This model operates within a temperature range of -10°C to 60°C.

It is constructed from nickel-plated brass, anodised aluminium alloy, POM, and Nitrile Rubber (NBR).

Yes, it supports both male and female inlet and outlet port orientations for flexible assembly.

This valve complies with ISO 228-1 and ISO 1179-1 dimensional standards, as well as RoHS and ISO 8573-1 particulate standards.

The minimum operating pressure is 0.5 bar, allowing for low-pressure applications.

It is suitable for pneumatic actuator circuits, compressed-air distribution lines, and safety isolation in testing rigs.

This valve prevents backflow in pneumatic systems, ensuring safety isolation in automation panels and testing instrumentation.

The specific dimensions and weight are not provided in the available specifications.

The selected materials ensure high corrosion resistance and compatibility with compressed air and industrial gases.

It can be installed inline or panel-mounted without additional adaptors, accommodating both male and female ports.

The country of origin for this valve is India.
