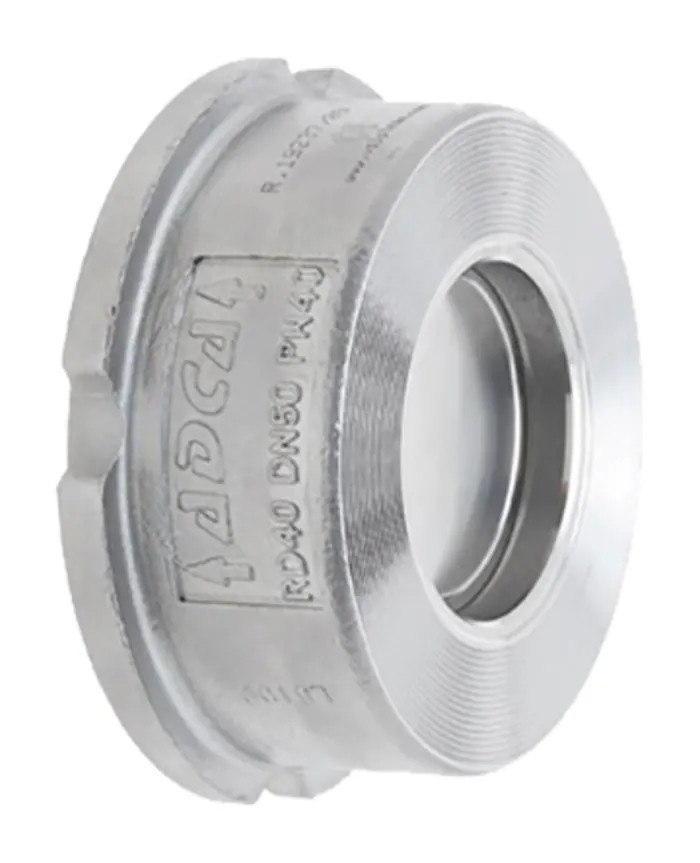

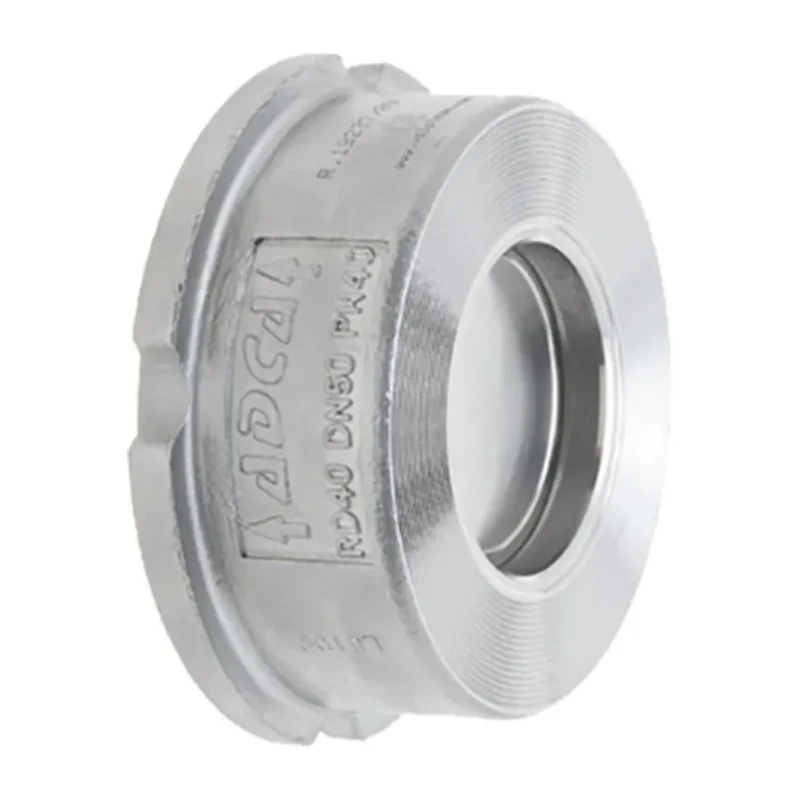

Valsteam ADCA Flange Disc Check Valve DN15 to DN100, 40 bar, Stainless Steel CF8M, Model 445631

Free Delivery in India | Lowest Global Shipping Charges

Valsteam ADCA Flange Disc Check Valve DN15 to DN100, 40 bar, Stainless Steel CF8M, Model 445631

Name: Valsteam ADCA Flange Disc Check Valve DN15 to DN100, 40 bar, Stainless Steel CF8M, Model 445631
Brand: Valsteam ADCA
SKU: 136601
Price: 140.85 USD
Availability: InStock



Category Check Valves Brand Valsteam ADCA Condition New

Specifications

Country of Origin	Portugal
Brand	Valsteam ADCA
Maximum Operating Pressure	40 bar
Inlet Connection Type	Flange
Model	445631
Maximum Operating Temperature	180°C
Sub Type	Disc Check Valve
Standards/Approvals	ANSI, CE (PED-European Directive 97/23/EC), EN 1092
Inlet Port Size	DN15 to DN100

Key Features

The valve features a sprung disc designed for low pressure drop and simple operation.
Compact overall length compliant with DIN 3202 part 3-K4.
Materials include stainless steel body CF8M and disc AISI316 for corrosion resistance.
Suitable for horizontal or vertical installation.
Conforms to ANSI, CE (PED-European Directive 97/23/EC) and EN 1092 standards.
Maximum operating temperature is 180°C for high-temperature applications.
Originated from Portugal, ensuring high manufacturing quality.

Product Description

Valsteam ADCA 445631 Flange Disc Check Valve is a high-quality mechanical valve designed for fluid flow control in industrial pipeline systems. This valve supports flange connections with inlet and outlet port sizes ranging from DN15 to DN100, operating at pressures up to 40 bar and temperatures up to 180°C.

The valve's body is crafted from CF8M stainless steel (grade 1.4408), providing excellent corrosion resistance, durability, and suitability for various industrial environments. The disc and star components are manufactured from AISI316 (grade 1.4401) stainless steel, offering reliable sealing and long service life. AISI302 stainless steel springs aid in disc actuation, ensuring swift and secure check valve function.

Designed for both horizontal and vertical pipeline installations, the valve complies with ANSI and EN 1092 standards and carries CE marking under PED-European Directive 97/23/EC, affirming its conformance to stringent quality and safety measures.

The compact design facilitates integration into existing systems with overall lengths adhering to DIN 3202 part 3-K4 specifications. Its low pressure drop characteristic improves efficiency and minimizes energy loss in fluid transport.

The valve is suitable for industrial, commercial, and HVAC pipeline applications where reverse flow prevention is critical. Constructed with high-grade stainless steel for enhanced corrosion resistance and durability. Flexible installation options, allowing both horizontal and vertical mounting.

Operates reliably under pressures up to 40 bar and temperatures up to 180°C. Meets ANSI, CE (PED 97/23/EC), and EN 1092 standards for safety and quality assurance. Compact length following DIN 3202 part 3-K4 enables straightforward system integration.

Port sizes cover DN15 to DN100 to accommodate varied pipe dimensions.

This product is manufactured in Portugal and supplied new. It is ideal for industries including water treatment, chemical processing, HVAC systems, and general industrial fluid handling requiring robust, certified Check Valves.
