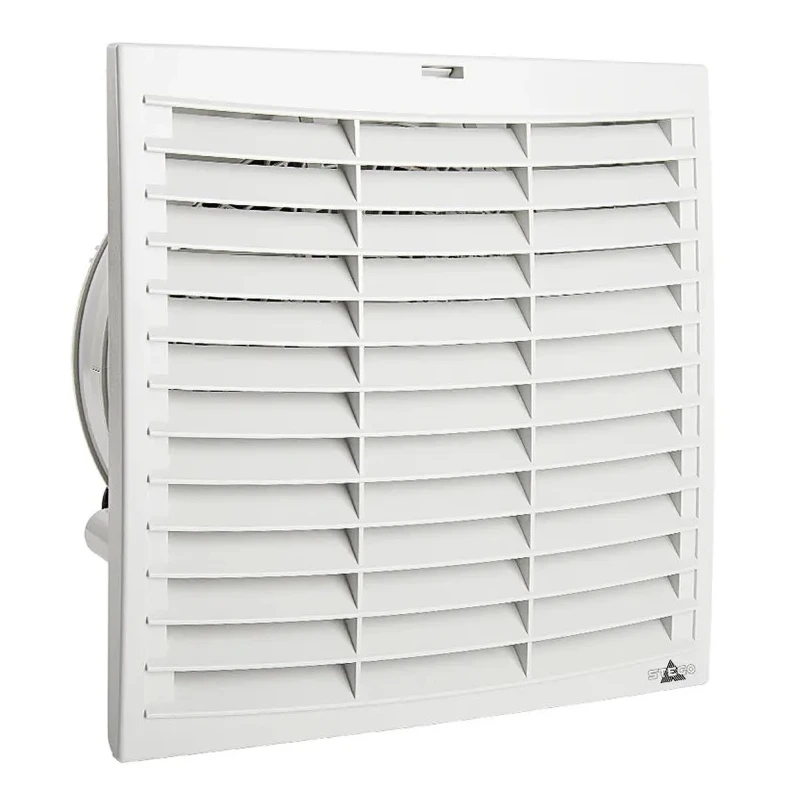

STEGO Filter Fan Plus FPI Series, Filter Fan, 115V AC, 90W, 339 m³/h Filtered Air Flow, 394 m³/h Unimpeded Air Flow IP54
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | STEGO |
| Model | IP54 |
| IP Rating | IP54 |
| Noise Level | 61dBA |
| Series | Filter Fan Plus FPI |
| Configuration | Rectangular |
| Input power | 90W |
| Installation Depth | 160mm |
| Input current | 800mA |
| Terminal type | Clamp |
| Supply Voltage | 115V ac |
| Bearing Type | Ball |
| Standards/Approvals | EN, cULus, EAC, VDE, RoHS, CE, UL |
| AC or DC Operation | AC |
| Unimpeded Air Flow | 394m³/h |
| Filtered Air Flow | 339m³/h |
| Face Height | 322mm |
| Face Width | 322mm |
Key Features
- Provides 339 m³/h filtered air flow and 394 m³/h unimpeded air flow.
- Rectangular configuration with face dimensions of 322 mm by 322 mm.
- Features an IP54 rating for protection against dust and water splashing.
- Ball bearing type ensures reliability and long operational life.
- Noise level is rated at 61 dBA providing quiet operation.
- Simple clamp terminal type for secure electrical connections.
- Installation depth of 160 mm suitable for various panel thicknesses.
- Conforms to EN, cULus, EAC, VDE, RoHS, CE, UL standards ensuring quality compliance.
Product Description
STEGO IP54 Filter Fan Plus FPI Series filter fan operates at 115V AC with 90W power input, designed to optimize ventilation in electrical enclosures by supplying filtered air at 339 m³/h while allowing an unimpeded air flow of 394 m³/h.
This rectangular fan with face dimensions of 322 mm by 322 mm and an installation depth of 160 mm is equipped with a durable ball bearing and clamp terminal connections for straightforward installation.
It holds an IP54 ingress protection rating, ensuring reliable operation in environments subject to dust and water splashes, thereby protecting electronic and electrical components efficiently.
The noise level is maintained at 61 dBA for quiet operation in sensitive environments. Compliance with multiple international standards including EN, cULus, EAC, VDE, RoHS, CE, and UL certifies its quality and suitability for industrial applications.
The Filter Fan Plus FPI series is engineered to improve heat dissipation in cabinets and enclosures, enhancing component reliability and extending performance life in electrical and electronic industrial systems.
Provides 339 m³/h filtered air flow and 394 m³/h unimpeded air flow. Rectangular configuration with face dimensions of 322 mm by 322 mm. Features an IP54 rating for protection against dust and water splashing. Ball bearing type ensures reliability and long operational life.
Noise level is rated at 61 dBA providing quiet operation. Simple clamp terminal type for secure electrical connections. Installation depth of 160 mm suitable for various panel thicknesses. Conforms to EN, cULus, EAC, VDE, RoHS, CE, UL standards ensuring quality compliance.
Manufactured in Germany guaranteeing high-quality production standards.
The STEGO filter fan is suitable for industrial, HVAC, manufacturing, and electronic enclosure cooling applications. Optimize your equipment's thermal management with this robust and efficient filter fan.
Explore further Filter Fan models and industrial cooling solutions with EnvMart to maintain the optimal performance of your electrical enclosures and systems.
