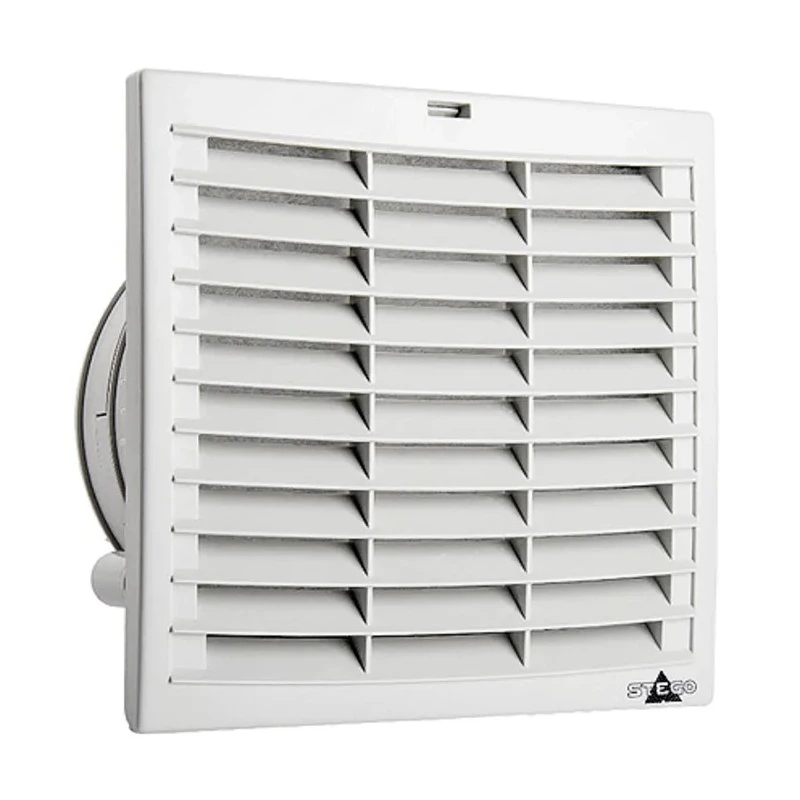

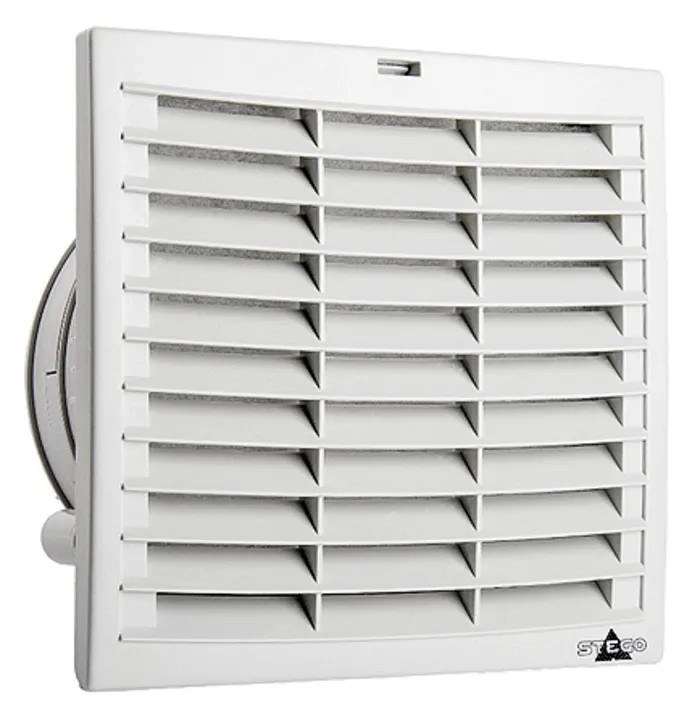

STEGO Filter Fan Plus FPI Series Filter Fan, 230V AC, 64W Power, 271 m³/h Filtered Air Flow, 305 m³/h Unimpeded Air IP54

STEGO IP54 Filter Fan Plus FPI Series Filter Fan, operating on 230V AC and 64W power, is engineered to optimize climate control within enclosures housing sensitive electronic or electrical components. By drawing in filtered cooler air at a rate of 271 m³/h and allowing a maximum unimpeded airflow of 305 m³/h, it effectively disperses heat generated inside the enclosure, thereby enhancing component performance and reliability.

Featuring an IP54 rating, this fan offers protection against dust ingress and water splashes, making it suitable for industrial and commercial HVAC applications. The rectangular design with 257mm by 257mm face dimensions ensures compatibility with standard enclosure cut-outs, while the 147mm installation depth allows for versatile mounting options.

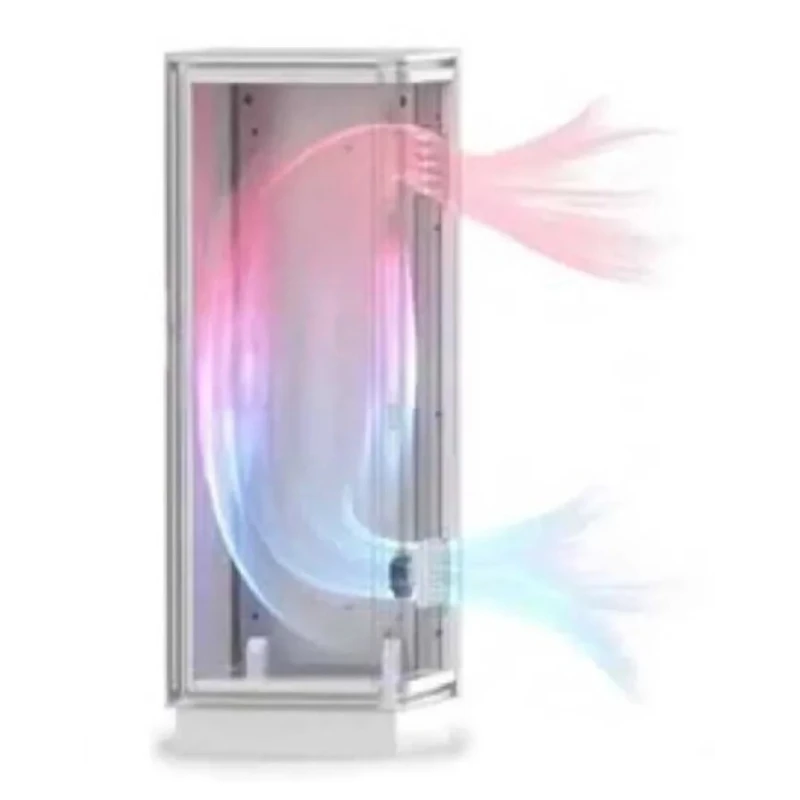

The unit incorporates ball bearing technology for steady and long-lasting operation. Innovative air-flap outlet technology improves airflow efficiency by expelling heated air more effectively. The Filter Fan Plus series distinguishes between FPI and FPO configurations: the FPI includes a filter fan inlet pulling cooler air in at the enclosure's lower end, whereas the FPO places the fan on the outlet pushing heated air out.

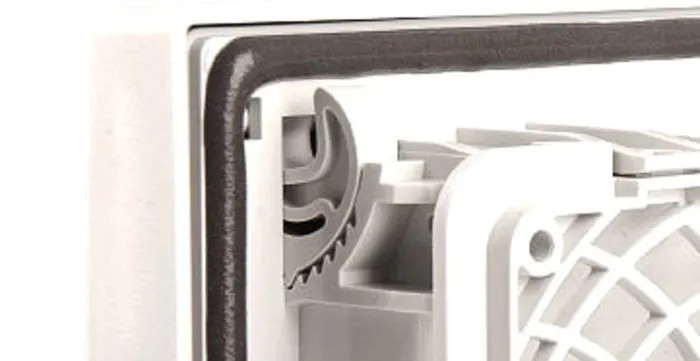

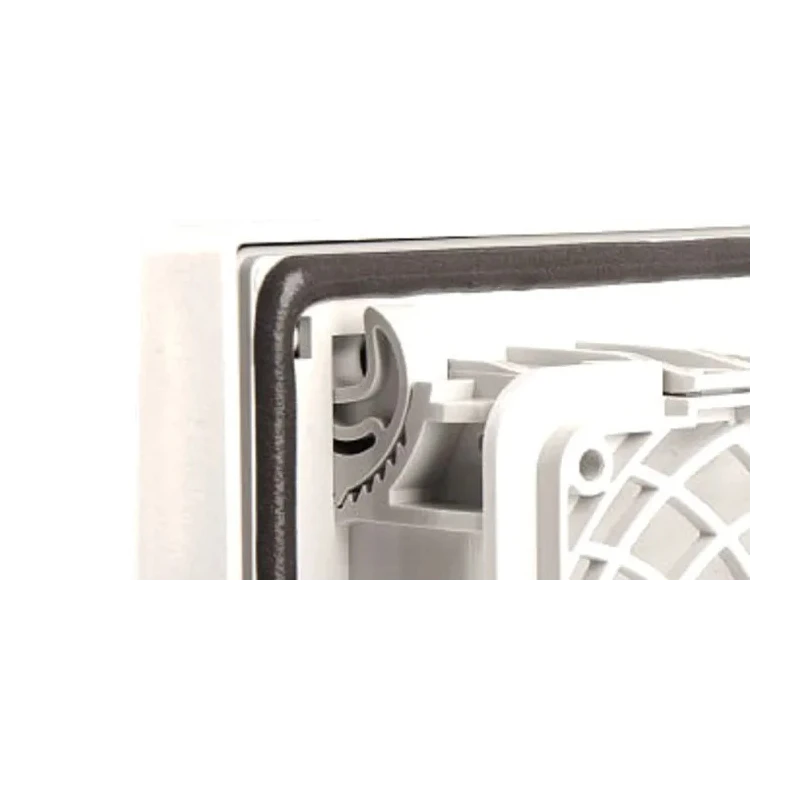

Mounting is straightforward due to a ratchet type system that accommodates various panel thicknesses, enabling quick installation and easy release if required. Compliance with multiple international standards including EN, RoHS, EAC, UL, CE, cULus, and VDE ensures the reliability and acceptance of the product in diverse industrial environments.

This product is manufactured in Germany, assuring high-quality materials and workmanship. It is ideal for use in industrial electrical cabinets, HVAC systems, automation equipment, and other settings requiring efficient filtered ventilation.

Provides a filtered air flow of 271 m³/h and unimpeded air flow of 305 m³/h for effective cooling. Features IP54 protection rating ensuring dust and splash resistance. Rectangular configuration with face dimensions of 257mm by 257mm.

Equipped with a ball bearing type for reliable operation and long life. Includes new air-flap outlet technology for high airflow expulsion. Simple mounting with ratchet type system accommodating various panel thicknesses.

Standards compliant including EN, RoHS, EAC, UL, CE, cULus, and VDE certifications. Manufactured in Germany ensuring quality and durability.

Explore the STEGO Filter Fan plus series for high-performance cooling solutions in ventilation and enclosure climate management. Suitable for industrial and commercial applications requiring filtered airflow.
